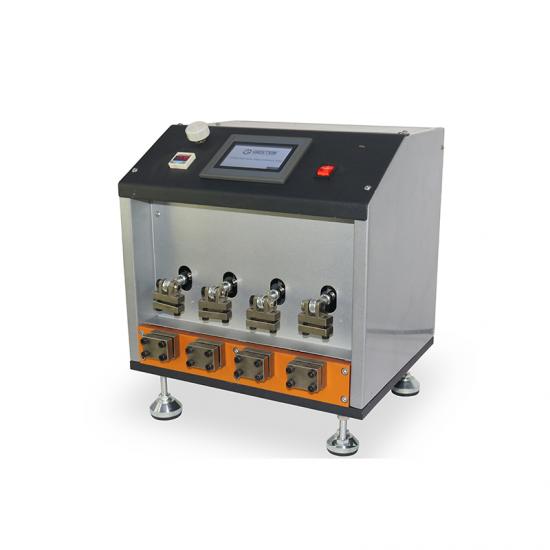

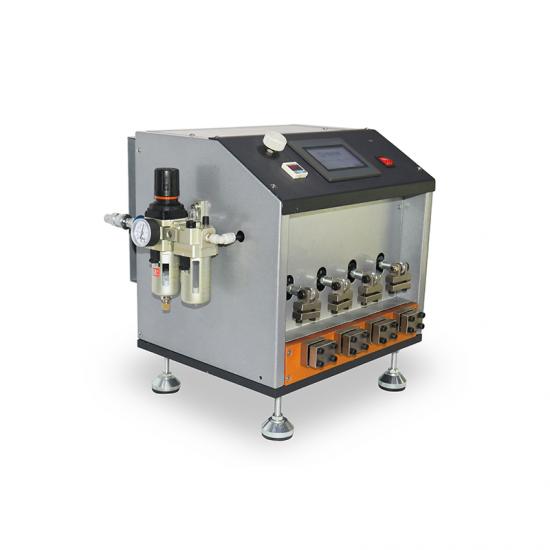

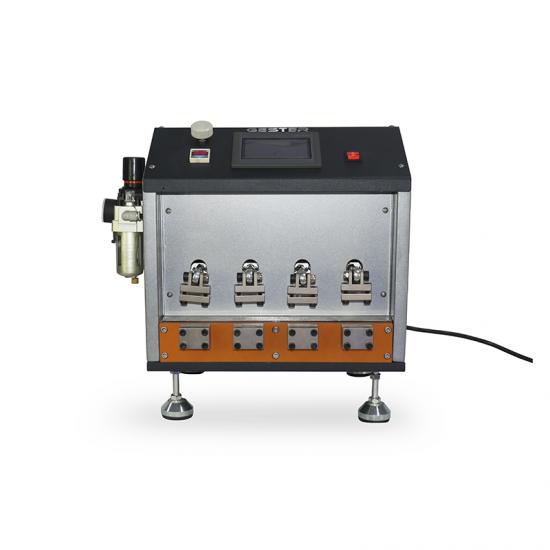

Steel Shanks Fatigue Resistance Tester GT-KB46
|
Application: Steel Shanks Fatigue Resistance Tester is used to determine fatigue resistance of shoes steel shank.Fix two ends of steel shank by respectively clamps, excert a certain force on upper fixture, flex the shank in frequency of 4 cycles per second and inspect the damage degree of sample after certain times. Standards: GB/T 3903.35, GB 28011, ISO18895, EN 12958 |
Fix two ends of steel shank by respectively clamps, excert a certain force on upper fixture, flex the shank in frequency of 4 cycles per second and inspect the damage degree of sample after certain times.
|
Model |
GT-KB46 |
|
Test position |
4 |
|
Test speed |
4 r/s |
|
Hard steel plane height of lower fixture |
32mm±2mm |
|
Distance between connecting rod of upper fixture and lower fixture |
70mm±2mm |
|
Circular test load |
49N±2N |
|
Test clamp force |
4900N.mm±50 N.mm |
|
Control method |
PLC touch screen |
|
Power supply |
1∮AC 220V 50/60HZ |
|
Dimensions（W×D×H） |
500 ´ 450 ´ 800 mm |
|
Weight |
75kg |
|
Standards |
GB/T 3903.35, GB 28011, ISO18895, EN 12958 |
|
Standards accessories |
Power line |
|
Optional accessories |
|
|
Air compressor |
