New Design Maeser Flexing Testing Machine GT-KC05-2 New Design Maeser Flexing Testing Machine GT-KC05-2
New Design Maeser Flexing Testing Machine GT-KC05-2
  • Product Origin:

    China
  • Brand:

    GESTER
  • Item No.:

    GT-KC05-2
  • Certificate:

    ISO 9001, UKAS, CE Certificates
  • Standard:

    ASTM D2099, SATRA TM34, SATRA TM34
  • Shipping Port:

    China Port
  • Lead Time:

    20~30 days
  • Payment:

    TT or L/C
contact now

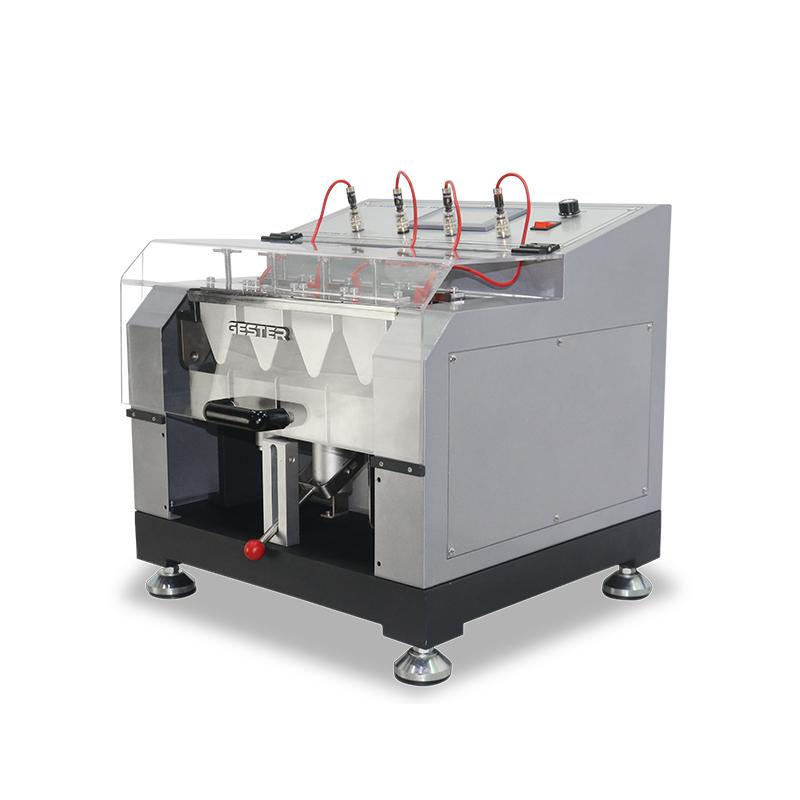

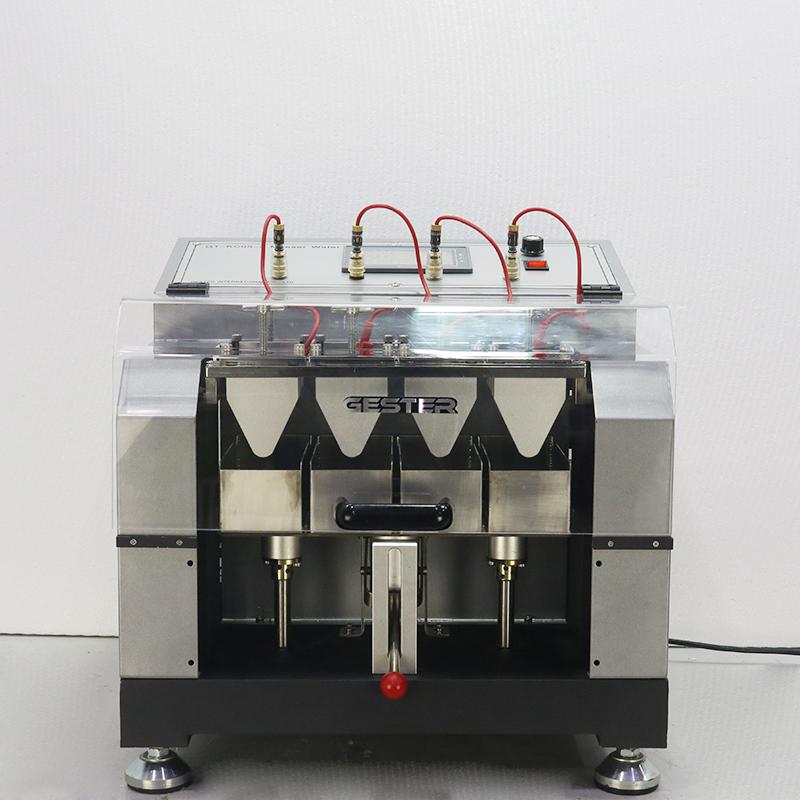

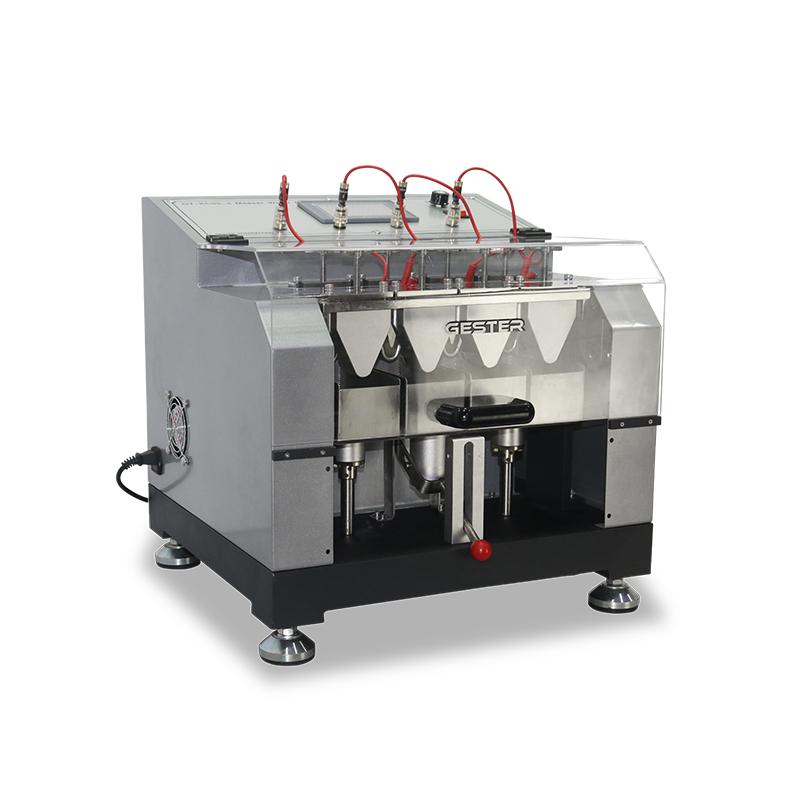

Maeser Flexing Testing Machine GT-KC05-2


Product Introduction

Application:

Maeser Flexing Tester is used to determine the resistance of leather, artical leather, fabric and so on material to anainst water penetration, which is taken the specimen immersing in water and flexing by a constant speed. The method is mainly applicable to footwear upper outer materials but can be used with any flexible sheet material.


Standards:

SATRA TM34 Type 1


Dimensions

dimension of maeser flexing tester

Principle

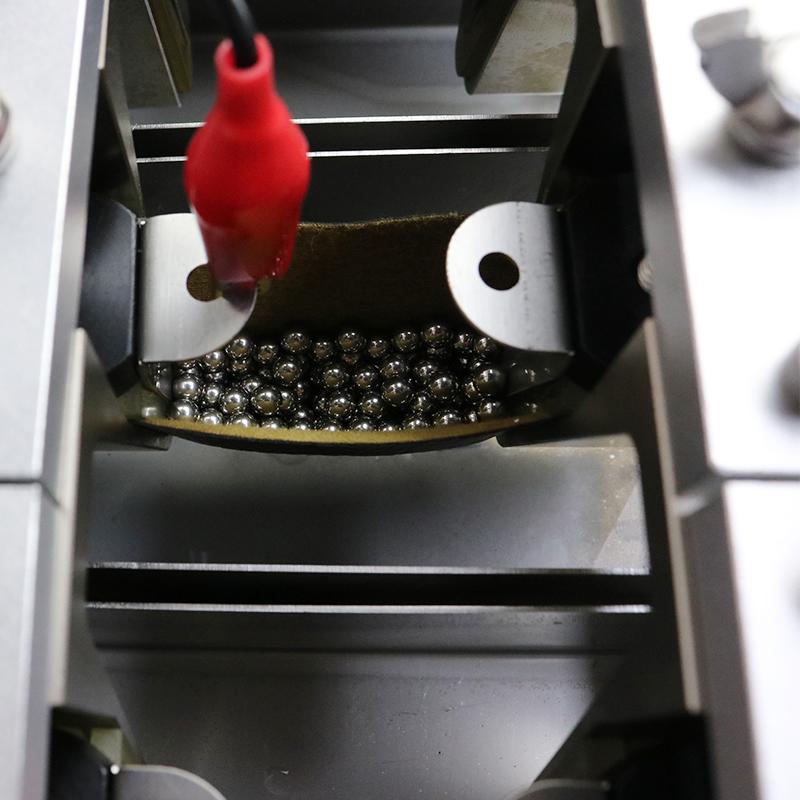

A square test specimen is folded and secured in two V-shaped clamps which have closed ends so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. The test is stopped at the first sign of water penetration through the test specimen.


Key Specifications

Model

GT-KC05-2

Position

4

Control method

Touch-screen control, 0~999,999

Clamps

V-shaped

Clamps tip radius

7.5±0.5mm

Moving fixture flexing displacement

Non required

Moving fixture flexing angle

30 ± 1 °

Test speed

90±5 r/min

Shutdown method

Electrode induction

Sample size

114  x 114  mm

Power supply

1∮AC 220V 50/60HZ

Dimensions( L x W x H )

49x45 x45cm

Weight

55 kg

Standards

SATRA TM34 Type 1

Standard Accessories

Stainless steel ball 550g

Electrode induction line 4pcs

Power line 1pc

Option Accessories

GT-C48 Pneumatic Sample Press

(Cutter: 101.6x101.6 mm and114 x114 mm)

Electronic balance (300g / 0.01g)



Application Industry
All kinds of materials can be tested on the Maeser Flexing Testing Machine GT-KC05-2

Maeser Water Penetration Tester
