Mask Flame Retardant Tester GT-RA06

GESTER Mask Flame Retardant Tester GT-RA06.  Flame retardant tester for Medical mask.
  • Brand:

    GESTER
  • Item NO.:

    GT-RA06
  • Order(MOQ):

    1
  • Product Detail

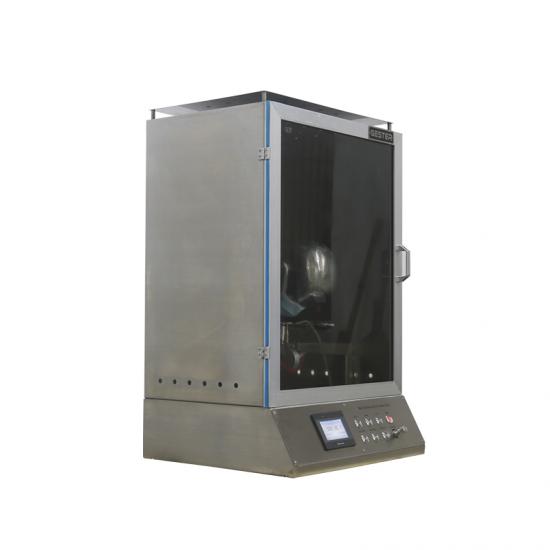

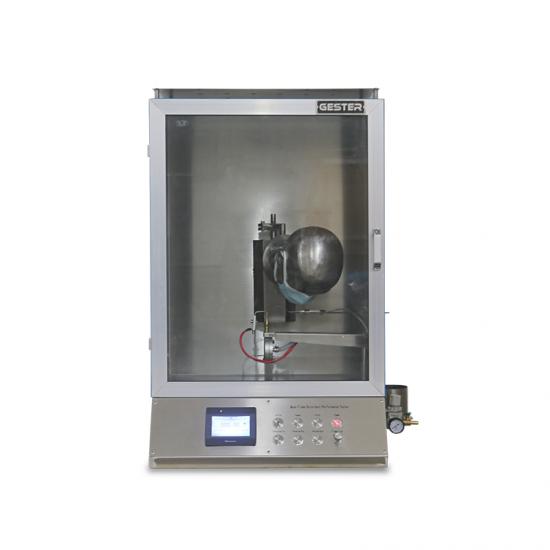

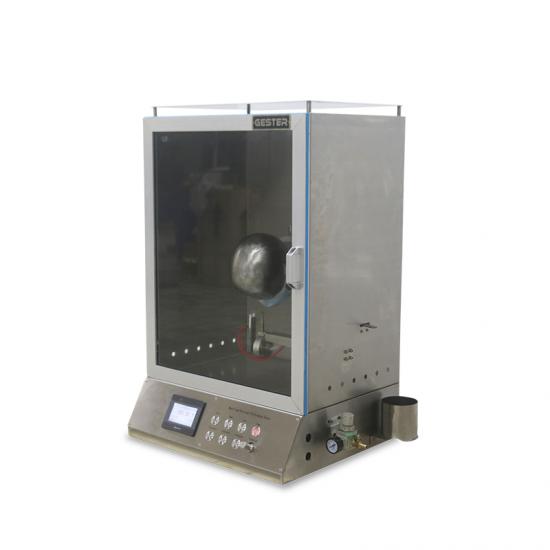

Mask Flame Retardant Tester GT-RA06



Product Introduction

Application:

Mask Flame Retardant Tester is a special test instrument for flame retardant performance of medical masks,  to test the flammability performance of medical mask after contacting with flame at a certain linear speed.



Standards:

GB 19083, YY 0469, GB 2626, EN 149, IS 9473, EN 14325




Instrument characteristics

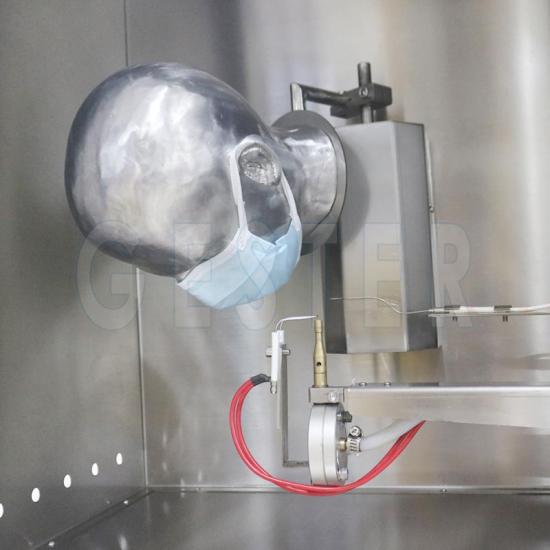

1. The mask fixture is a metal human head mold, which can simulate the actual use situation of the mask.

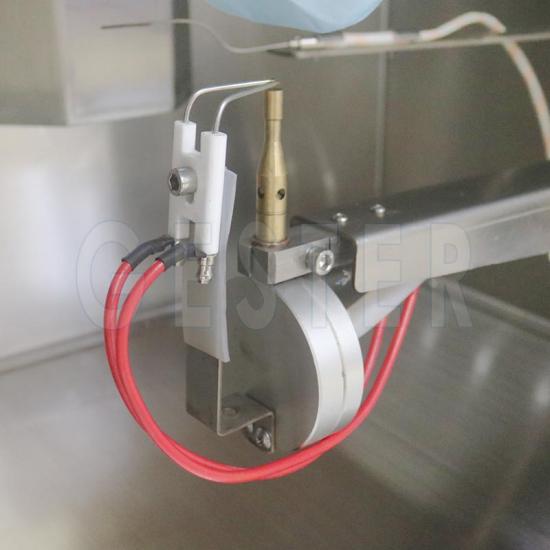

2. The burner is equipped with a combustible gas interface, such as propane (liquefied gas).
3. Burner height is adjustable.
4. Burner could be timing and positioning automatic.
5. Burning time and flame retardant time are automatically recorded and displayed digitally
6. Mask Flame Retardant Tester is equipped with flame temperature measuring probe and flame temperature display.

Key Specification



Model

GT-RA06

Linear speed of the tip of nose on head model

(60 ± 5) mm / s

Flame height

Initial height 40±4mm(adjustable)

Diameter of flame temperature measuring probe

1.5mm

The temperature of the flame

(800 ± 50) ℃ at a height of (20 ± 2) mm from the top of the burner

Distance between top of the burner and lowest point of the mask

(20 ± 2) mm

Adjustment range of burner height

30mm

Thickness of the metal mold

2 ~ 3mm, flame resistant.

Timer of burning time and smoldering time

0-99.99 seconds, accuracy: ± 0.1 seconds

Gas

Propane gas

Weight

100kg

Power supply

AC220V, 50Hz, 50W



EN149 testing machine
