Model

GT-RA08B-2

Test aerosol

NaCl, Oil (Corn oil and paraffin oil)

Aerosol Concentration Detector

Flame photometer (For NaCl aerosol test)

2sets

TSI Laser photometer (For oil aerosol test)

2sets

Oil aerosol generator

Particle concentration

20mg/m³～30mg/m³

Aerodynamics size distribution of particle

Approx 0.02～2um

Mass median diameter

Aapprox 0.3um

NaCl aerosol generator

Particle concentration

4mg/m³～12mg/m³

Aerodynamics size distribution of particle

Approx 0.02～2um

Mass median diameter

Aapprox 0.6um

Aerosol occurrence amount

≥ 100L/min

Sampling pump adjust range

0.50～4L/min

Particle sampling flow

1～2L/min

Aerosol concentration detector dynamic range

0.001～200mg/m³, accuracy 1％, response time ≤500ms

Power requirement

1phase 220V 50Hz, 2KW

Air requirement

0.5MPa, 120L/min

Dimension

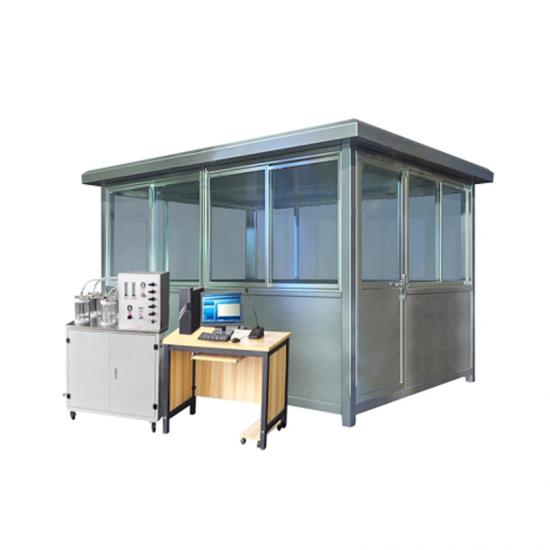

Outer size of testing room: 2000mm×1600mm×2600mm(L×W×H)

Control cabinet: 880mm×520mm×1400mm (L×W×H)

Standard accessories

2sets

Flame photometer

2sets

TSI Laser photometer

1set

NaCl aerosol generator

1set

Oil aerosol generator
