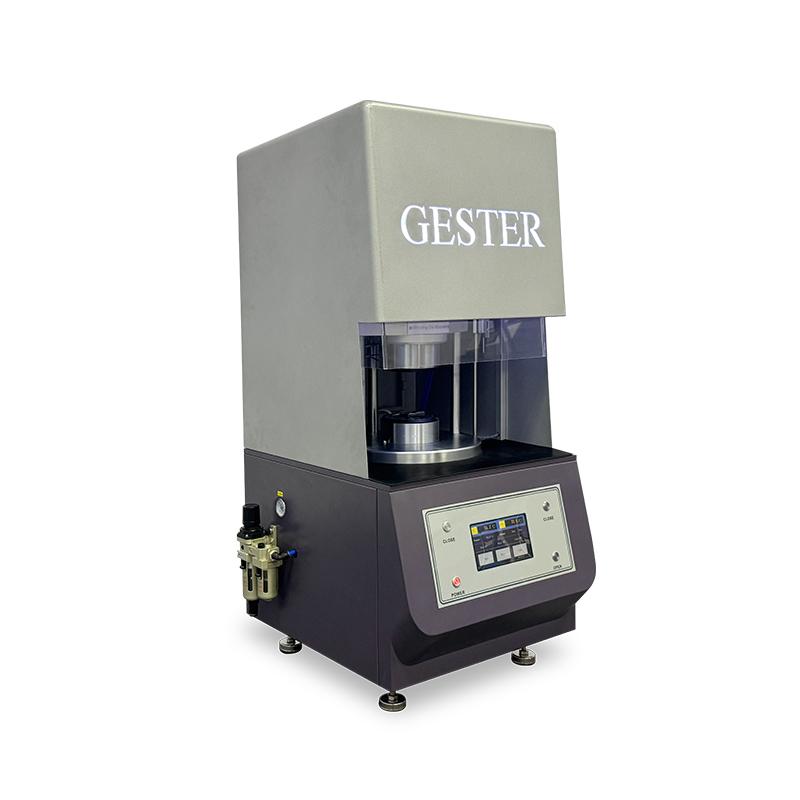

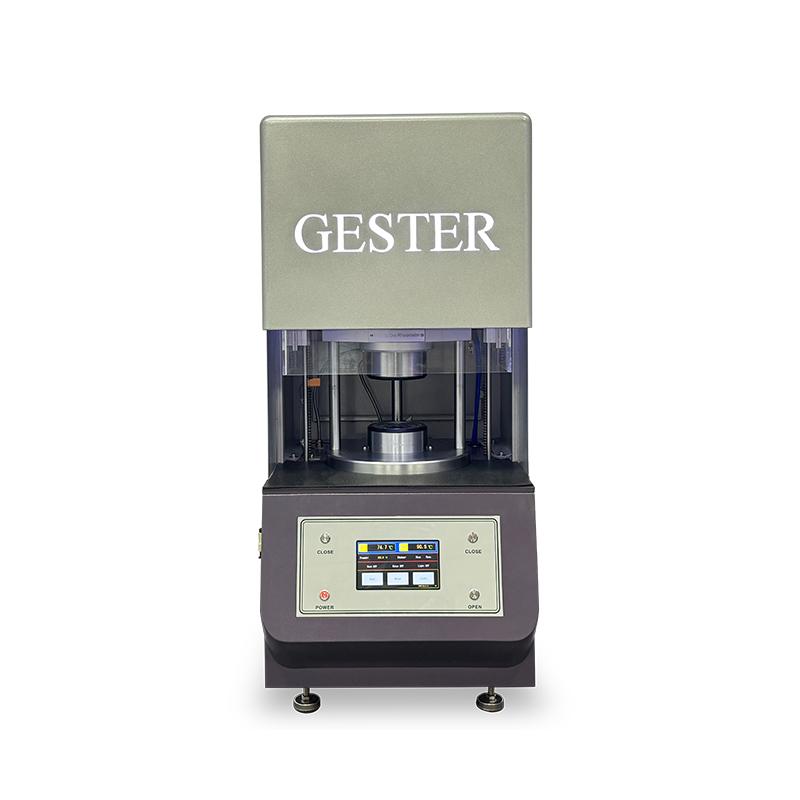

Moving Die Rheometer (Sealed die) GT-KR02

Rubber Testing Equipment Manufacturers Suppliers, Factory direct sale

Brand:
GESTER
Item NO.:
GT-KR02
Order(MOQ):
1
Lead Time：
20-30 days

Inquire now

Product Detail

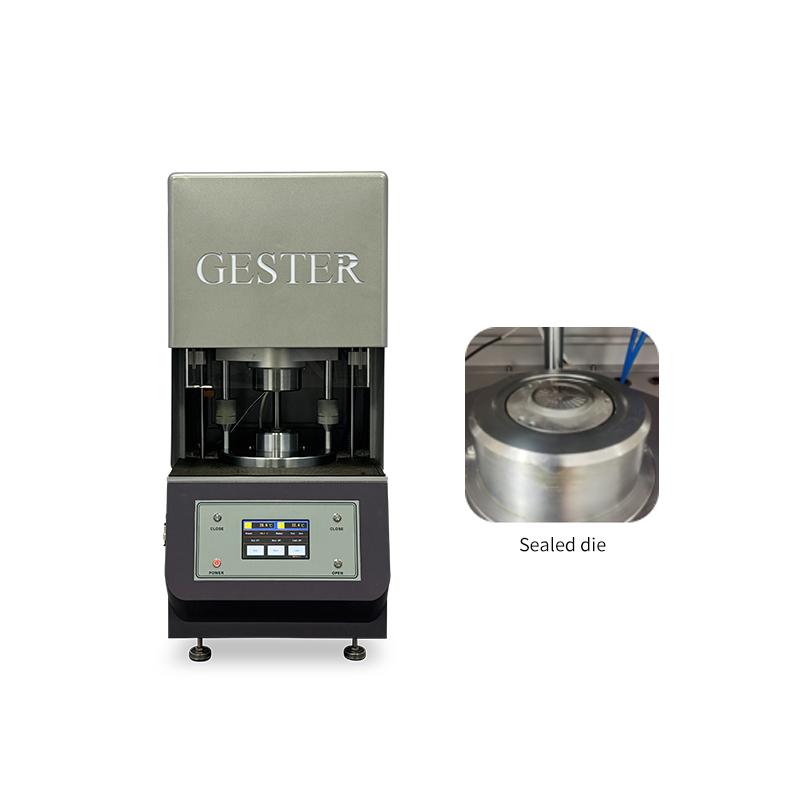

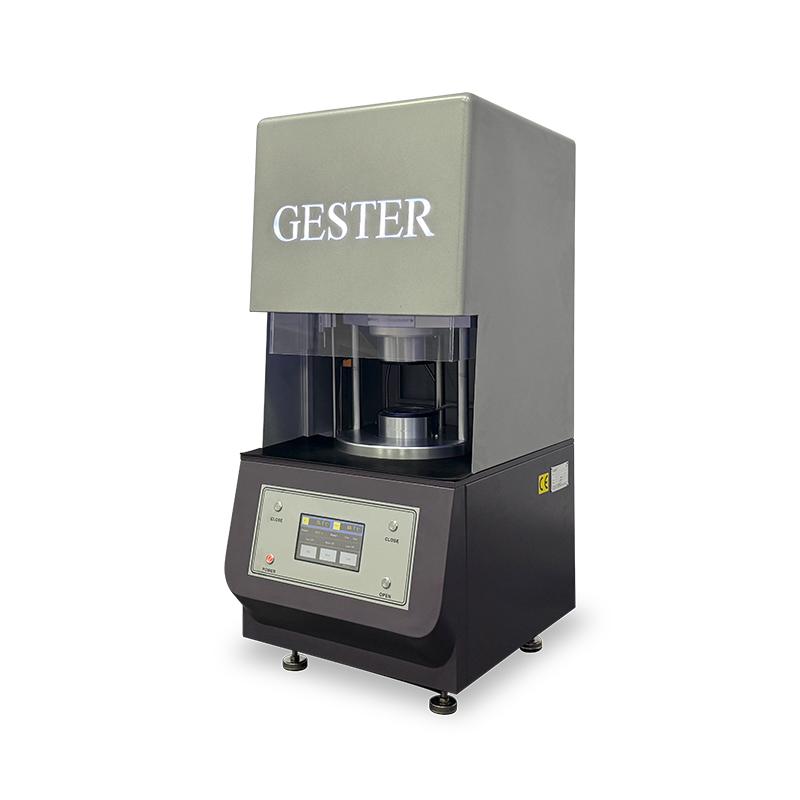

Moving Die Rheometer (Sealed die) GT-KR02

Product Introduction

Application

Rotorless Rheometer is specifically designed to determine the rheological properties of rubber compounds during the curing process.

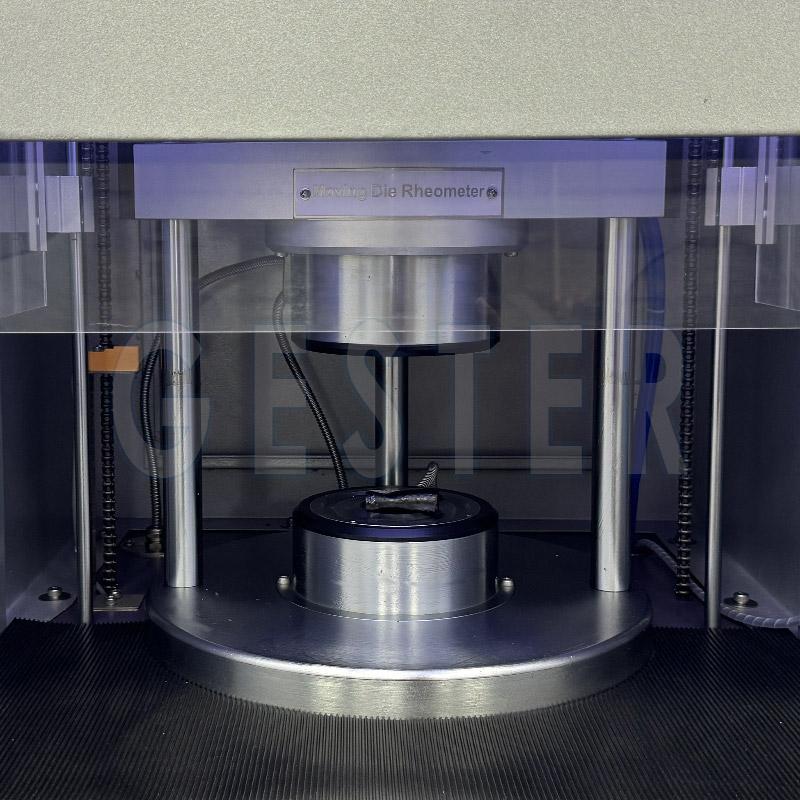

MDR Rheometer, a rubber compound specimen sealed in a pressurized cavity is subjected to controlled heating. As the lower die produces sinusoidal oscillation, a torque sensor on the upper die detects the torque generated by the specimen.

Standards:

ISO 6502-3-2018, ASTM D5289-2017, GB/T 16584-1996

Moving Die Rheometer (mdr) Key Specifications

Model	GT-KR02
Die configuration	Sealed die
Test mode	MDR
Temp. control	Computer operation, PID.SSR control
Temp. range	Ambient temp. to 200℃
Temp. display resolution	0.1℃
Temp. control stability	±0.1℃
Temp. accuracy	±0.3℃
Overheat control	≤ Set value±0.4℃
Temp. recovery time	≤45sec
Heating time	Ambient temp. to 190℃ < 6 min
Torque range	Elasticity S’: 1 to 200 lb-in
Torque range	Viscosity S’’: 0.3 to 200 lb-in
Torque unit	0.001
Torque unit	dN-m, kgf-cm, lbf-in
Oscillation amplitude	±0.5°, ±1°, ±2°, ±3° [Select one]
Oscillation frequency	1.67Hz±0.01Hz
Motor	Servo Motor
Communication interface	RS232
Compressed air	3.5kg/cm2(0.35MPa) (prepared by customer）
Power	1∮ AC 220V 50/60Hz 800W

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Moving Die Rheometer (Sealed die) GT-KR02

Related Tags :

Categories

New Products

Related Products

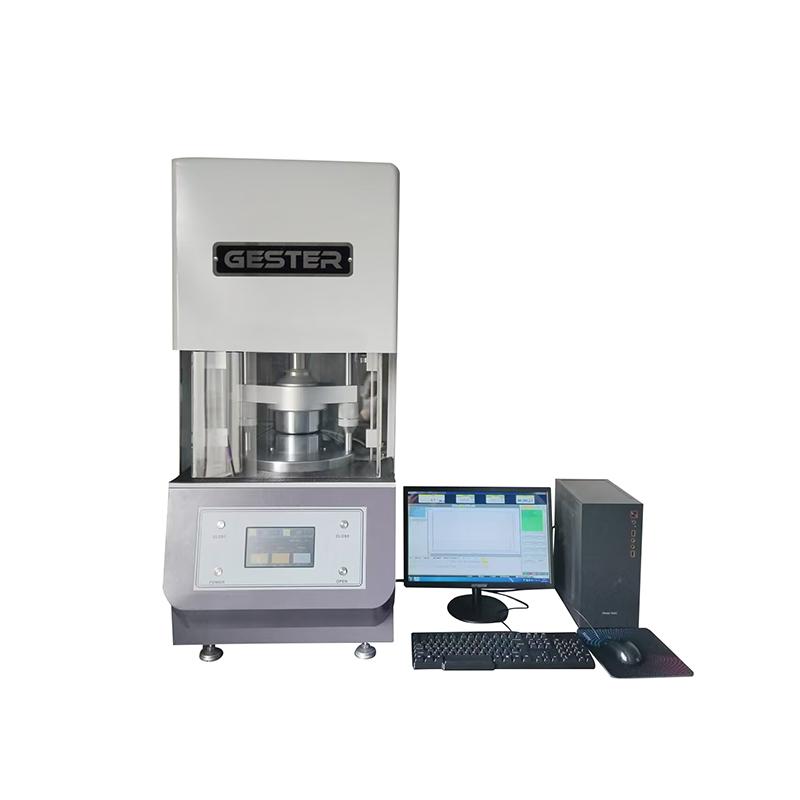

Moving Die Rheometer GT-KR01

Rubber Testing Equipment Manufacturers Suppliers, Factory direct sale

Mooney Viscometer GT-KR03

Rubber Testing Equipment Manufacturers Suppliers

Electronic Yarn Count System GT-A17

Yarn Count System | yarn count tester

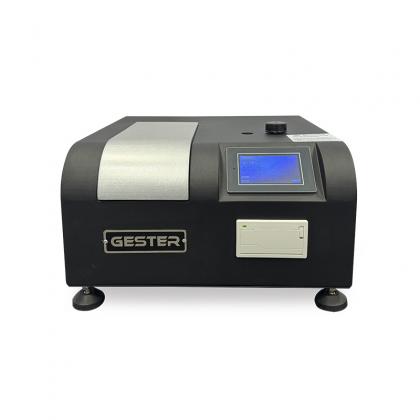

Brightness Tester GT-N04B

Paper Brightness And Opacity Tester Standards: ISO 2469,ISO 2470,ISO 2471, ISO 9416 etc.

Formaldehyde Content Tester GT-C76

Formaldehyde Content Tester used for rapid testing formaldehyde contents in all kinds of textiles, leather, and furs.

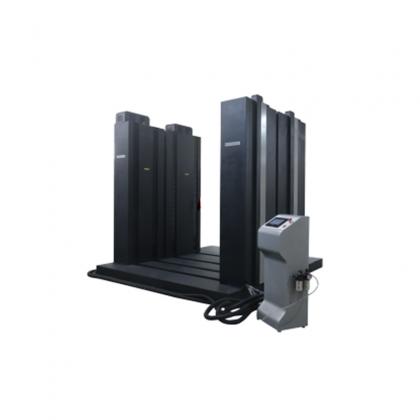

Large Packaging Drop Testing Equipment GT-LC09

Large Packaging Drop Testing Equipment GT-LC09 Product Introduction Large Packaging Drop Tester with dual motor control and two beams, labeled as "A" and "B." This advanced testing device offers comprehensive evaluation of package impact strength, including surface, angle, and edge assessments. Notably, it has overcome the challenges of fixed-angle drop testing found in traditional methods. This Drop Tester adding three protective functions to ensure operator safety. The landing gear operates only when all three safety features are activated, effectively minimizing the risks of accidents and safeguarding personnel. Whether you represent a large corporation or a small-to-medium enterprise, our Large Packaging Drop Testing Equipment meets the strict demands for packaging quality. By saving time and costs, it enhances product reliability and customer satisfaction. Key Specifications Model GT-LC09 Max.weight of sample 800kg Control mode PLC+Touch screen Motor 0.75 variable frequency motor + frequency changer (2groups, for adjusting height of "A" and "B" beams separately.) Moving Range 0~1200mm (adjustable) Air Cylinder Protective cylinder(4pcs) + Protective and power cylinder(4pcs) Accelerating structure 4 groups (The speed of landing gear must be higher than drop speed of sample) Anti-friction Bearing NSK Weight 3000kg Dimension 2800×2500×2500mm(L×W×H) Standard ISTA

ISO20344 Upper Material Flexing Tester GT-KC04A

This Upper Material Flexing Tester is used to determine the propensity for materials to crack or otherwise fail at flexing creases, but can also be used to assess whether leathers are likely to produce salt spue.

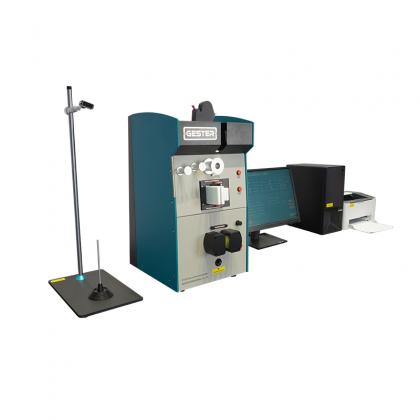

Yarn and Sliver Evenness Testing Equipment GT-A14EH
