Nonwovens Strength Tester GT-CN01

Nonwovens Strength Tester Testing Rang: 50N, 100N, 500N

Brand:
GESTER
Item NO.:
GT-CN01
Order(MOQ):
1
Payment:
TT
Product Origin:
China
Shipping Port:
Xiamen Port
Lead Time：
About 25days

Inquire now

Product Detail

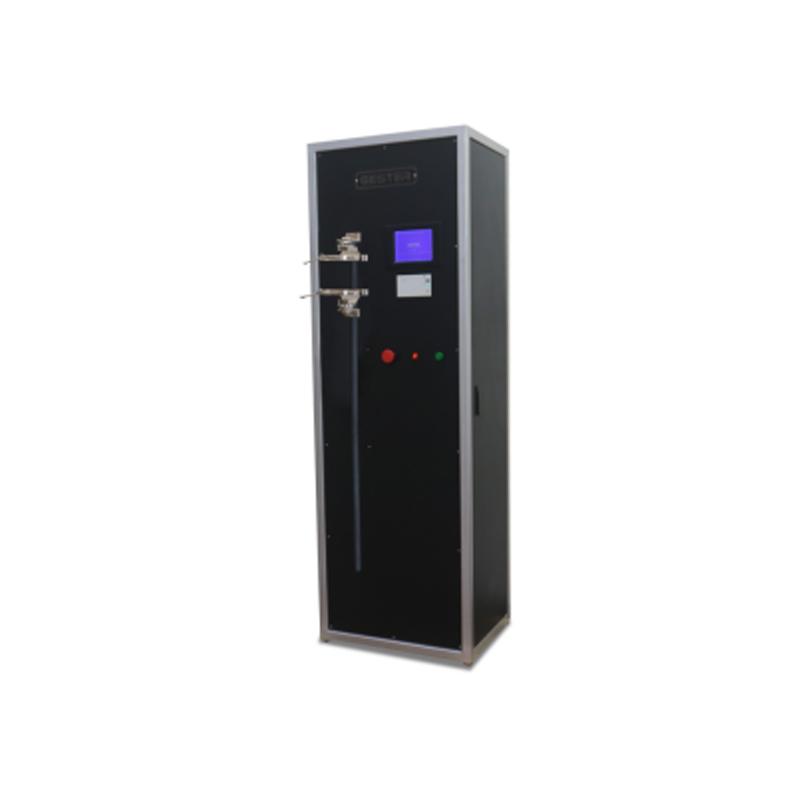

Nonwovens Strength Tester GT-CN01

Product Introduction

Application:

Nonwovens Strength Tester can be used to test nonwovens absorption, adhesive lining, multilayer laminated fabrics, hot melt adhesive lining, and between lining apparel fabrics, linings and fabrics, and coating adhesions various tensile and peel strength.

Feature

Touch screen display, human-machine interface in English.

Vertical cabinet structure, generous appearance, and smooth operation.

Stepping servo drive, the deceleration box is equipped with synchronous belt deceleration, accurate testing and stability.

Equipped with online interface, developed of testing software professionally, can be used to check and analysis the results of test.

By setting the parameters, the clamping distance will be automatically positioned.

The first sample testing and data processing software adopts multi-thread processing in China, and the test doesn't have to wait.

Key Specifications

Model	GT-CN01-5	GT-CN01-10	GT-CN01-50
Testing Range	50N	100N	500N
Force Measure Range	1%~100% of the Testing Rnage
Operating Mode	Constant velocity extension principle(CRE), microcomputer control, LCD Chinese display, support online communication
Sampling Frequency	1000 times/second
Stretching Speed	50~1000mm/min
Maximum Elongation	800mm
Clamp Width	60mm
Test Accuracy	≤0.2%F·S
Dimensions	520×400×1600mm
Power Supply	AC220V 50HZ 200W
Weight	60kg
Standards	GB/T3923.1/2, FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Nonwovens Strength Tester GT-CN01

Related Tags :

Categories

New Products

Related Products

Nonwovens Absorption Tester GT-CN02

The GESTER Nonwovens Absorption Tester GT-CN02 is a high-precision laboratory instrument engineered to evaluate the liquid absorptive capacity, liquid absorption time, and liquid wicking rate of nonwoven fabrics, hygiene absorbent cores, and technical textiles. compliance with international Standards including ISO 9073, EDANA 152.0, NWSP 010.1, and GB/T 24218.6, the GT-CN02 delivers consistent and repeatable performance testing for medical nonwovens, sanitary towels, adult diapers, and wipe manufacturers. Equipped with an intuitive touch-screen control interface, high-precision weighing sensor (0.01g resolution), and built-in micro-printer, the GT-CN02 streamlines quality control and product development workflows for nonwoven material manufacturers worldwide.

Nonwovens Run-off Tester GT-CN03

This Nonwovens Run-off Tester GT-CN03 is used to test the overflow quantity of thin nonwoven, such as sanitary towel and diaper coating material.

Liquid Strike-Through Tester GT-CN04

Liquid Strike-through tester used to determine the penetration time of liquid (simulated urine) in nonwovens coated materials.

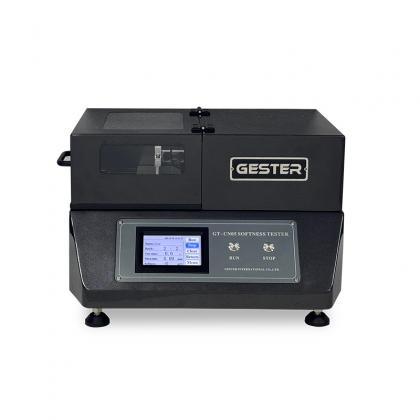

GB/T 8942 Softness Tester GT-CN05
