GB/T 8942 Softness Tester GT-CN05
GB/T 8942 Softness Tester GT-CN05
  • Brand:

    GESTER
  • Item No.:

    GT-CN05
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    GB/T 8942
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    About 25days
  • Payment:

    TT
contact now

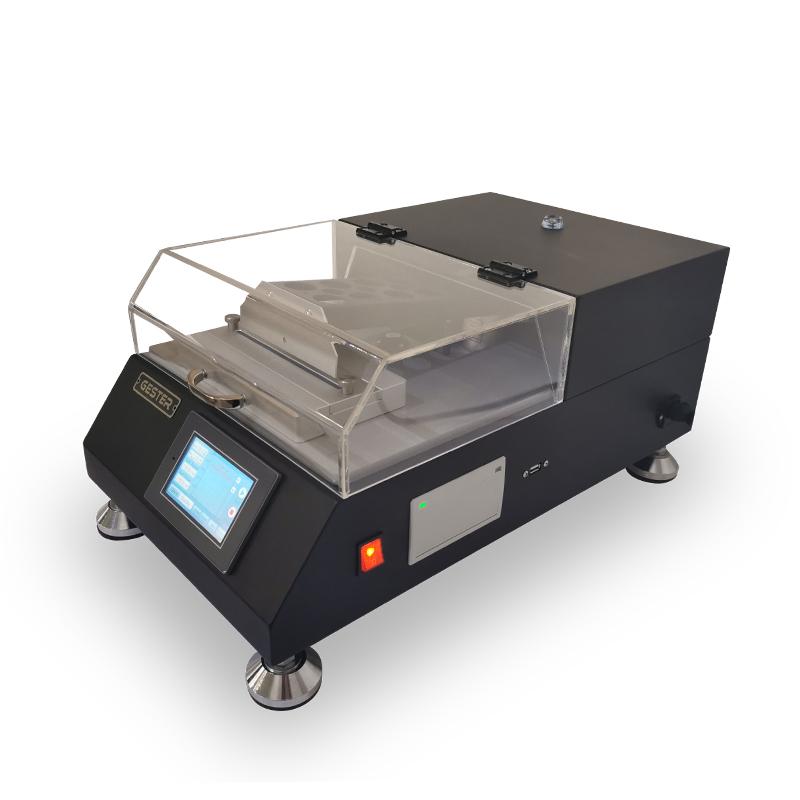

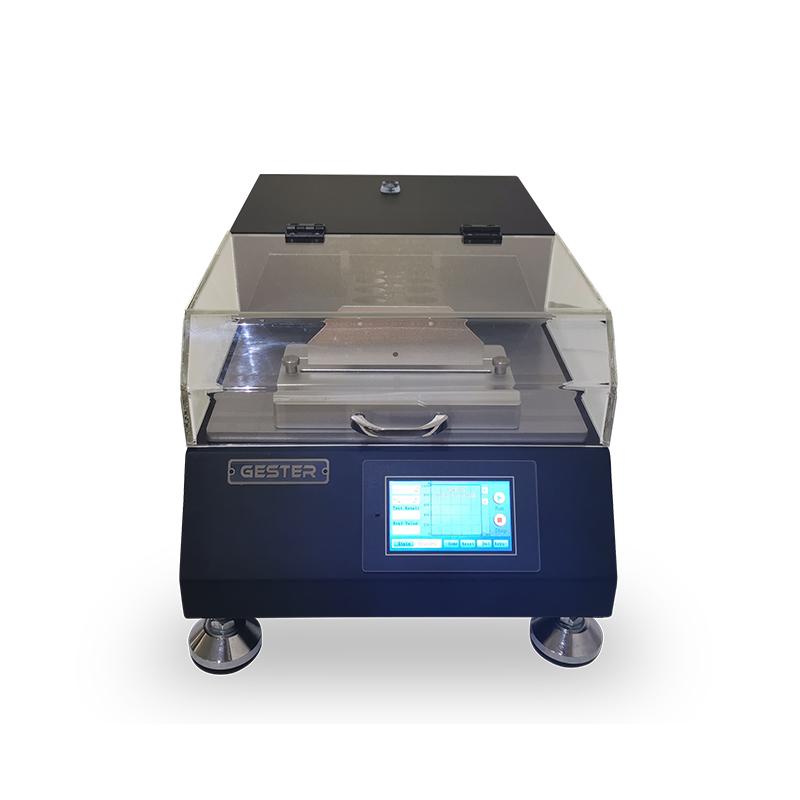

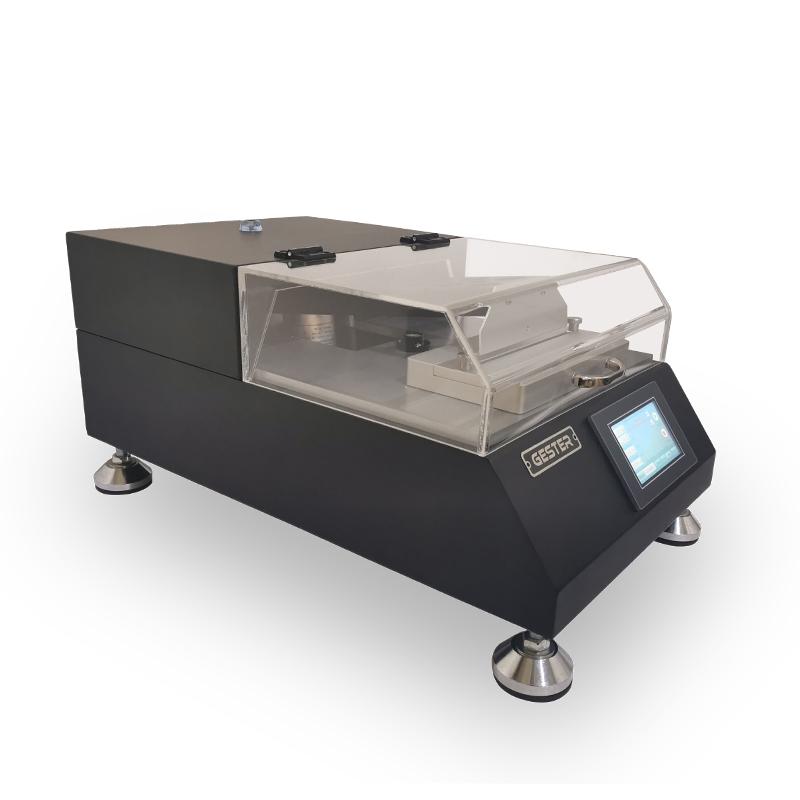

GB/T 8942 Softness Tester GT-CN05


Product Introduction

Application:

Softness tester can be used to determine the softness of high-grade toilet paper, tobacco flakes, fiber paper products and other materials.


Feature

  • The instrument measuring device adopts the principle of leverage to reduce the data fluctuation caused by vibration.
  • The transmission is stable, precise and accurate. It adopts a stepper motor, which is simple and reliable.

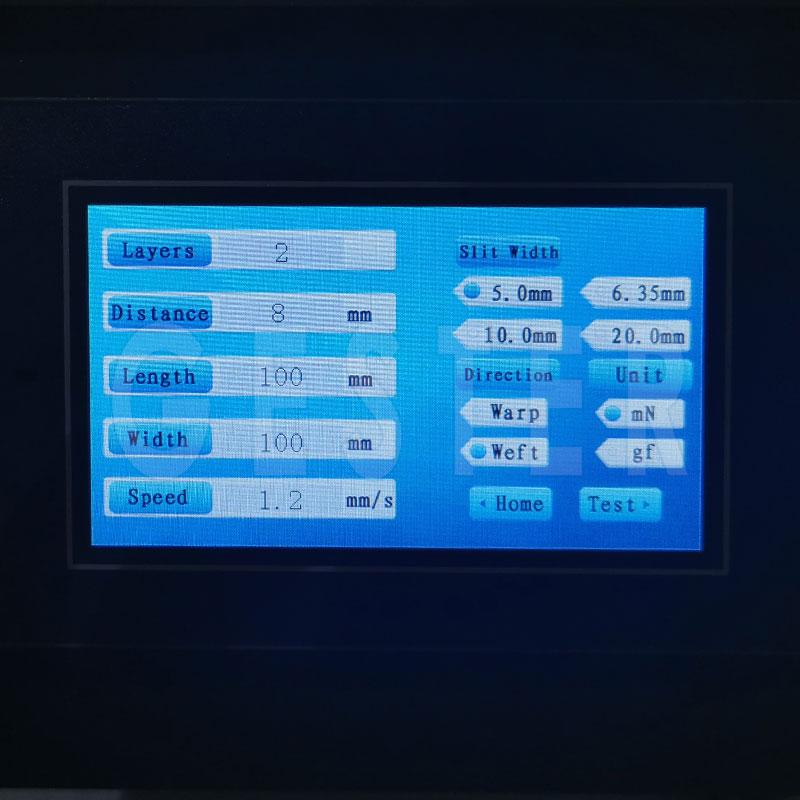

  • High-resolution color touch screen display, simple and convenient operation.
  • High-precision force sensor, the test result is more accurate.
  • The test process shows real-time force values and graphs for easy to observation.
  • The test group reached 30*20 times, sufficient space to save data, horizontal and vertical data were memorized separately.
  • Data report function is perfect for query and printing.
  • Equipped with a micro thermal printer, it can analyze and count the results of each group of data, with low noise and clear fonts.


Key Specifications



Model

GT-CN05

Testing Range

10-1000mN

Testing Resolution

0.1mN

Indication Error

≤±1% FS (20% or less of the upper limit of the measurement is allowed to exceed the specified range 1mN)

Indicative Variability

1%

Test Head Stroke

(1.2±0.5)mm (can be set)

Test Head Press-in Depth

8mm+0.5mm

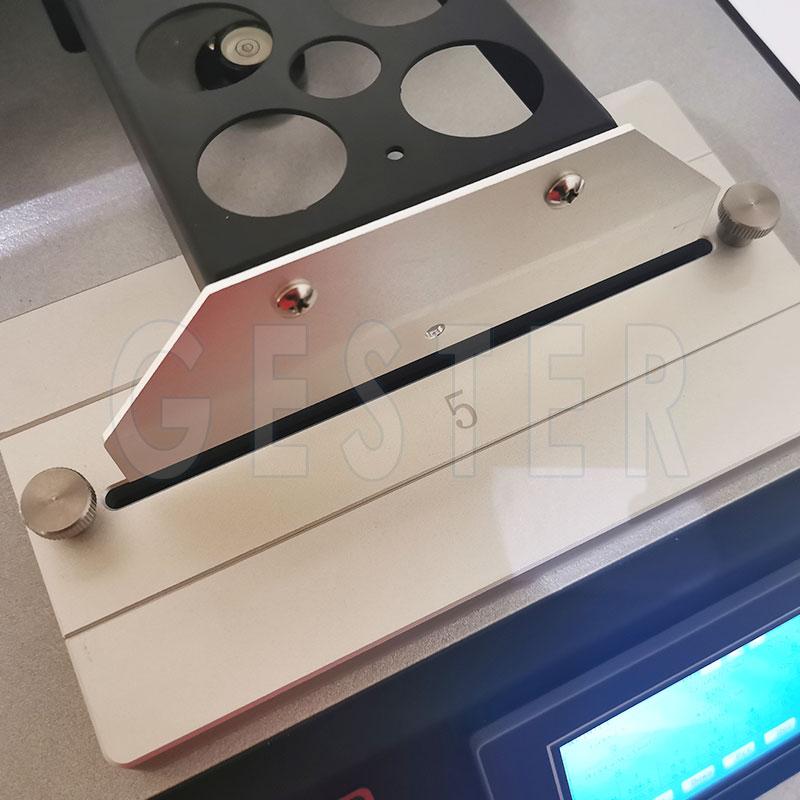

Slit Width

5mm; 6.35mm; 10mm; 20mm (Width error should not exceed ±0.05mm)

Testing Speed

(1.2±0.24)mm/s

Printer

Thermal printer

Power Supply

AC 220V±10V 50Hz

Dimensions

560×340×250mm

Weight

25kg

Standards

GB/T 8942


inquiry now
