Rolling Resistance Testing Machine applies to all chairs with casters, to evaluate rolling resistance of the unloaded chair.
Brand:
GESTERItem NO.:
GT-LB10Order(MOQ):
1Payment:
T/T ,L/CLead Time：
20-30 daysProduct Detail

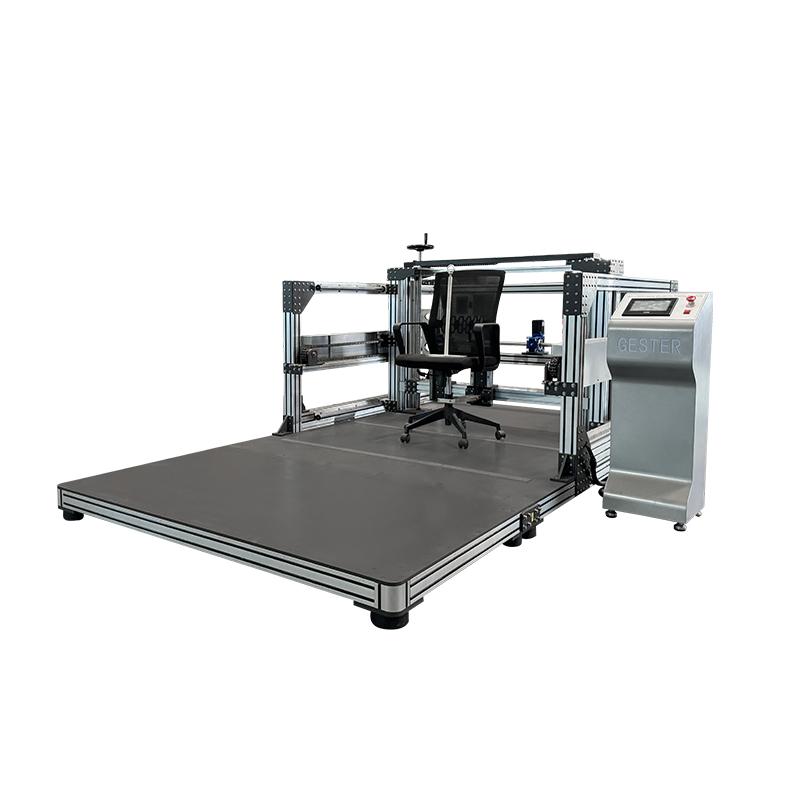

Rolling Resistance Testing Machine GT-LB10
Application:
This tester applies to all chairs with casters, to evaluate rolling resistance of the unloaded chair.
Standards:
EQB/T 2280-2007 Section 6.6.1EN1335-3 -2009 Section 7.4
Test Principle:
The chair shall be placed on the test floor and shall be pushed or pulled over a distance of at least 550 mm. A speed of (50±5) mm/s shall be maintained over the measuring distance. The force shall be applied at a height of (200±50) mm above the test surface.Record the force used to push or to pull the chair over the distance from 250 mm to 500 mm as the rolling resistance.
|
Model |
GT-LB10 |
|
Control system |
PLC touch screen |
|
Pressure sensor |
Celtron , 100N |
|
Moving stroke |
≥550 mm |
|
Driving method |
servo motor |
|
Test speed |
(50±5) mm/s |
|
Load point |
(200±50) mm above the test surface |
|
Dimension(W*D*H) |
180*120*85 cm |
|
Power supply |
1∮ AC 220V 50/60Hz 3A |
Applications Industry
All kinds of chair products can be tested on the Chair Sideways Testing Machine
