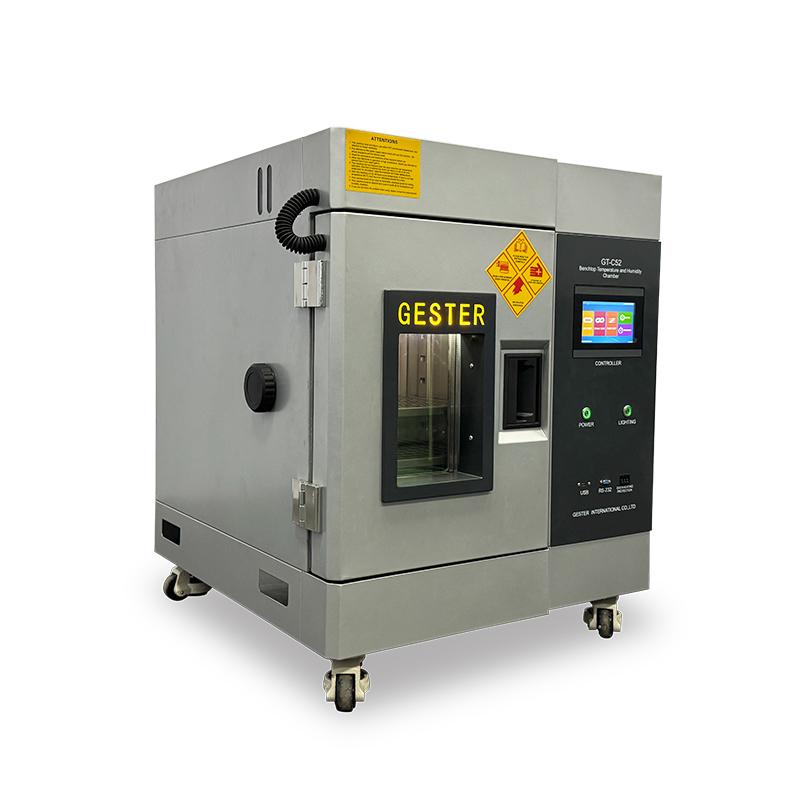

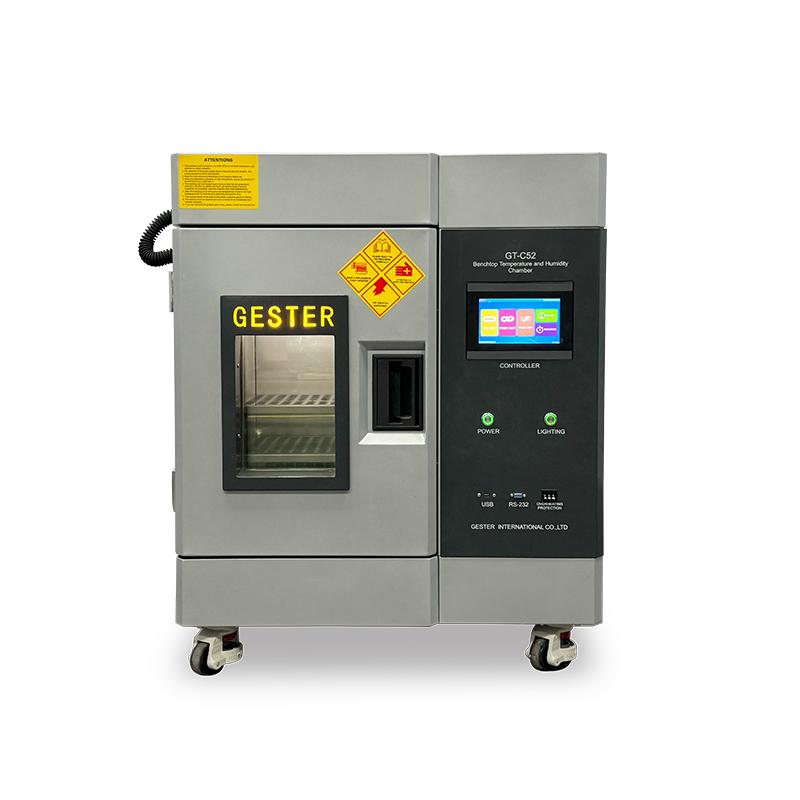

Benchtop Temperature and Humidity Chamber GT-C52

Product Introduction

Application:

Benchtop test chamber for conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity and time can be programmed.

Temperature And Humidity Test Chamber is suitable for conducting high temperature and humidity tests on electrical, electronic, mechanical, and other products, components, materials, etc. Under simulated temperature and humidity conditions, it tests the quality and reliability of products, components, materials, etc.

Standards:

GB-2423.1-2008(IEC68-2-1), GB-2423.2-2008(IEC68-2-2), GJB360.8-2009(MIL-STD.202F)

GJBl50.3-2009(MIL-STD-810D), GJBl50.4-2009(MIL-STD-810D), GB2423.3-2008(IEC68-2-3) est Ca

GB2423.4-2008(IEC68-2—30) Test Db, GJBl50.9-2009(MIL-STD-810D), GB/T31467.3-2015, GB/T31485-2015

Test Space Options

Capacity	50L	80L
Inner chamber dimension	350×300×480mm (W×D×H)	400×400×500mm (W×D×H)
Machine dimension	820×800×895mm (W×D×H)	870×890×915mm (W×D×H)

Benchtop Temperature Humidity Chamber Key Specifications

Control mode	Touch scree control
Temperature range	-20～150℃
Temperature Uniformity	±2.0℃
Temperature Fluctuation	±0.5℃

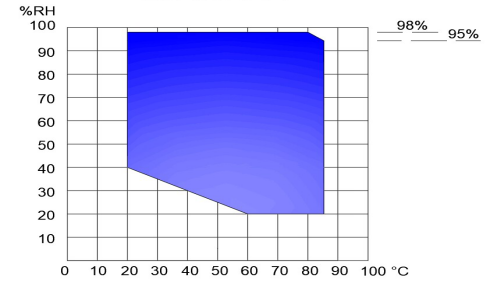

Humidity range	20%～98%, can be set.
Humidity Deviation	±2.0％RH(＞75％RH) ±3.0％RH(≤75％RH)
Humidity Fluctuation	±2.0％RH

Rate of temperature increasing	25℃～150℃	About 45 minutes non-linear, no-load.
	25℃～-20℃	About 45 minutes non-linear, no-load
Sensor	High-precision DIN A class, dry bulb φ4.8mm SUS #304 PT 100Ω.
Power supply	AC 1ψ3W 220V 50Hz, protect ground wire, ground resistance≤4Ω.
Weight	About 170kgs
