Brand:
GESTERItem NO.:
GT-F58Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
10-30 daysProduct Detail

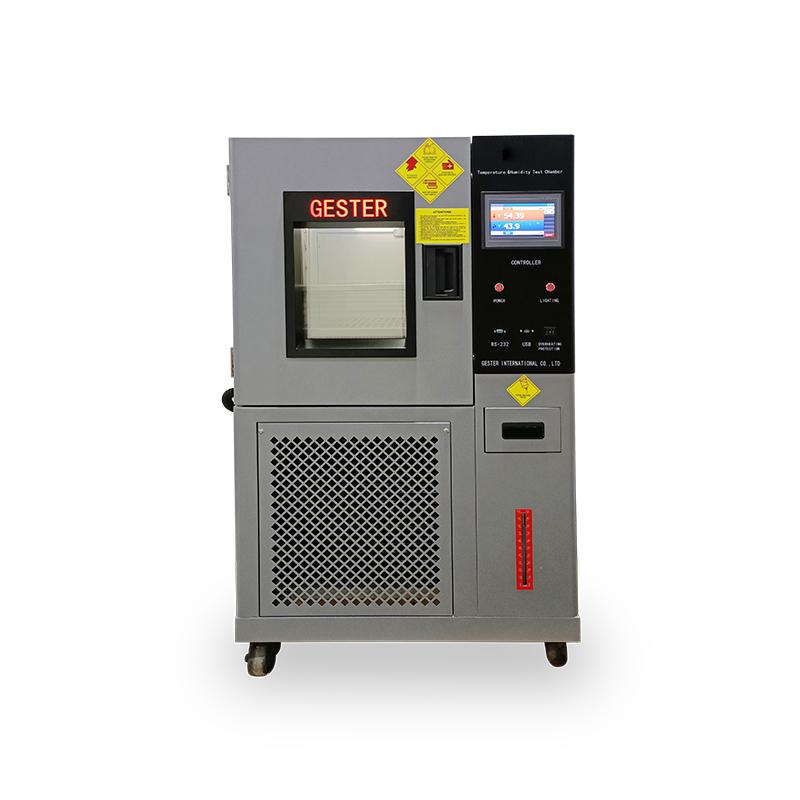

High and Low Temperature Test Chamber GT-F58
High and lower temperature test chamber. For conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test.
Industry Applications:
Electronics & Semi-conductors: Thermal stress testing for PCBs, sensors, and integrated circuits.
UAV & Aerospace: Reliability testing for drone components and aviation hardware in extreme cold/heat.
Automotive: Performance verification for vehicle electronics and engine sensors.
Robotics: Endurance testing for robotic joints and control systems under temperature fluctuations.
New Energy: Testing the thermal stability of battery management systems (BMS) and solar components.
Machine precision
1. The main structure of the machine is made of aluminum, beautiful and easy to maintain.
2. Servo motor drive, test load control more accurate, and the noise is even smaller.
3. High Low Temperature Test Chamber: sing PLC touch screen control, operation more convenient.
4. In addition, the machine loading device using electric control movements, more extensive test space.
|
Capacity |
80L |
150L |
225L |
408L |
612L |
1000L |
|
Inside dimension WxHxD(cm) |
40x50x40 |
50x60x50 |
50x75x60 |
60x85x80 |
80x90x85 |
100X100X100 |
|
Outside dimension WxHxD(cm) |
95x136x94 |
100X146X104 |
100x161X117 |
110x171x137 |
130x181x137 |
152x 210x 127 |
|
Model |
GT-F58 |
|
Temperature Range |
-70-150℃, can be set |
|
Rate of Temperature Increase
|
Room temperature----->150℃ about 40minutes(Nonlinear no-load, about 3.5℃/min) |
|
Room temperature----->40 ℃ about 45minutes (Nonlinear no-load, about 1.2℃/min) |
|
|
Indication Resolution(display accuracy) |
Temperature: ±0.01℃ |
|
Control Precision(test precision) |
Temperature: ±0.5℃ |
|
Distribution Accuracy (uniformity) |
Temperature: ±1.0℃ |
|
Environment Temperature Range |
5℃-28℃ |
|
Relative Humidity |
≤85%RH |
|
Supply Voltage |
380V AC(±10%), protective grounding wire, ground resistance ≤4Ω |
|
Frequency |
50±0.5Hz / 60HZ |
|
Power Switch |
Air-break switch (40A, knife switch or outlet is forbidden to use) |
|
Power |
15KW |
|
Humidification Water |
Resistivity ≥500MΩ |
|
Requirement of Ambient Air Quality |
Do not contain high concentration dust and flammable gas or dust,and no strong electromagnetic radiation source nearby. |
|
Power Supply |
AC1￠3W 380V 50/60HZ, Allowed value of voltage change: ±10% of rated voltage |
|
Max Load Capacity |
15KW |
|
Maximum Operating Current |
30A |
Q1: What is the lowest temperature the GT-F58 can reach?
A: The high low temperature test chamber GT-F58 offers powerful cooling capabilities with three available ranges: 0°C, -20°C, -40°C, -60°C, and down to -70°C, allowing you to simulate even the harshest Arctic or high-altitude environments.
Q2: How precise is the temperature control on this chamber?
A: The system features a Temperature Analysis Display of 0.01℃ and a Control Accuracy of ±0.5℃, ensuring extremely stable and repeatable test results for sensitive electronic components.
Q3: Can I program complex thermal cycling profiles?
A: Absolutely. The programmable controller supports multiple programs and segments, allowing for automatic cycling between high and low temperatures.
Q4: Is the humidity control included in the GT-F58?
A: No, the GT-F58 focuses exclusively on temperature. For temperature and humidity testing, please refer to our Temperature Humidity Test Chamber GT-C52 model.
Q5: Does this chamber comply with international test standards?
A: Yes, it is designed to meet standards including ISO, JIS, ASTM, DIN, BS, IEC, NACE, UL, MIL, ect.
Q6: What safety features are included?
A: It includes over-temperature protection, compressor overload protection, and emergency stop functions to ensure lab safety.
