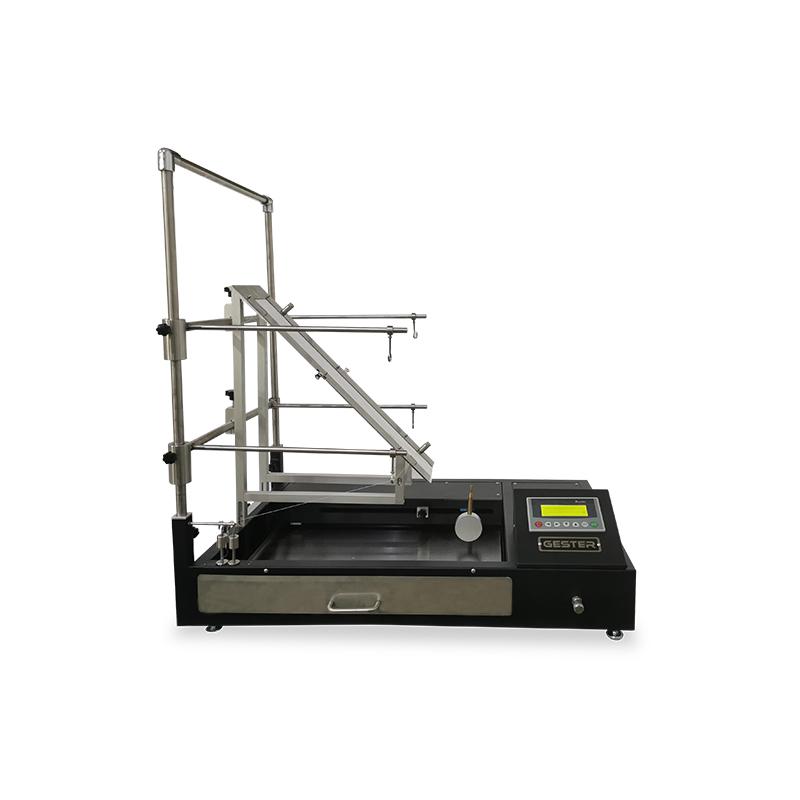

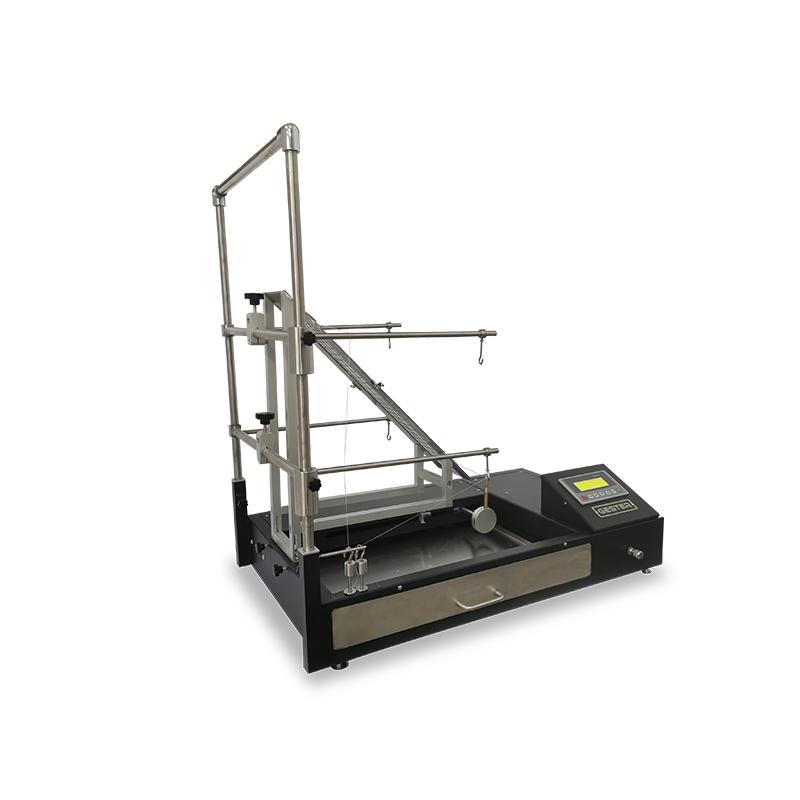

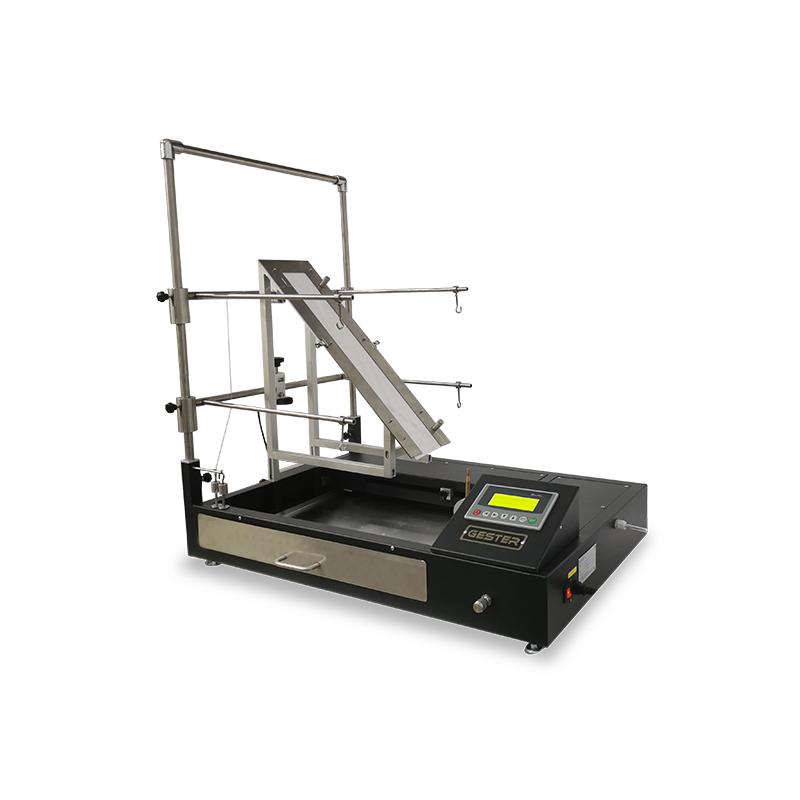

Toys Flammability Tester GT-M17

Toys Flammability Tester GT-M17 is used to test children apparel or toy and its decorations flammability performance, to evaluate the burning speed and time of the following kinds of toys.

  • Brand:

    GESTER
  • Item NO.:

    GT-M17
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Lead Time:

    Have in stock
  • Product Detail

Toys Flammability Tester GT-M17



Product Introduction

Application:

Toys Flammability Tester is used to test children apparel or toy and its decorations flammability performance, to evaluate the burning speed and time of the following kinds of toys.



Standards:

EN 71-2 ,

ISO 8124-2,

GB 6675.3

EN 16890-2017 Section 7



Feature

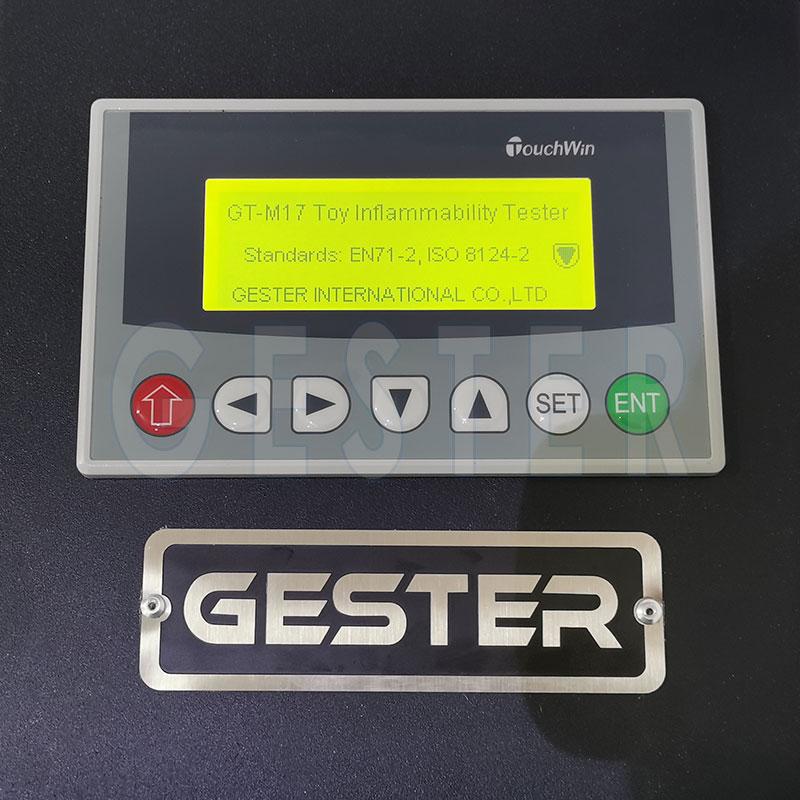

1.PLC control, timing precision, human-machine interface.

2.Different test methods with different samples fixtures.

3.Fixtures operation simple and convenient.

4.The clamp can be adjusted arbitrarily, suitable for different samples.

5.Flame Angle, position can be adjustable arbitrarily.



Test Range

1.Toys to be worn on the head

  • Beards, moustaches, wigs etc., made from hair, pile or material with similar features (e.g. free-hanging ribbons, paper or cloth strands etc.), which protrude more than or equal to 50 mm from the surface of the toy
  • Beards, moustaches, wigs etc. made from hair, pile or material with similar features (e.g. free-hanging ribbons, paper or cloth strands etc.), which protrude less than 50 mm from the surface of the toy
  • Full or partial moulded head masks
  • Flowing elements of toys to be worn on the head , hoods, head-dresses etc. and fabric masks which partially or fully cover the head


2.Toy disguise costumes and toys intended to be worn by a child in play.

  • Include for example cowboy suits, nurses outfits etc. and long flowing capes etc.


3.Toys intended to be entered by a child

  • Include for example toy tents, puppet theatres, wigwams and play tunnels.


4.Soft-filled toys (animals and dolls, etc.) with a piled or textile surface

  • Soft-filled toys with a maximum dimension of 520 mm or less
  • Soft-filled toys with a maximum dimension greater than 520 mm

Key Specifications



Model

GT-M17

Ignition Time Range

0-99.9S (Precision: 0.1S)

After Flame Time

0-999.9S

Burner

According to ISO6941 Standard

Burner Angle

45o or 90o

Dimension

1030×600×900mm (L×W×H)

Weight

40kg

Power Supply

AC 220V 50/60Hz


Standard Accessories

Pack of 1

Flame Height Ruler for 20mm and 40mm

Pack of 1

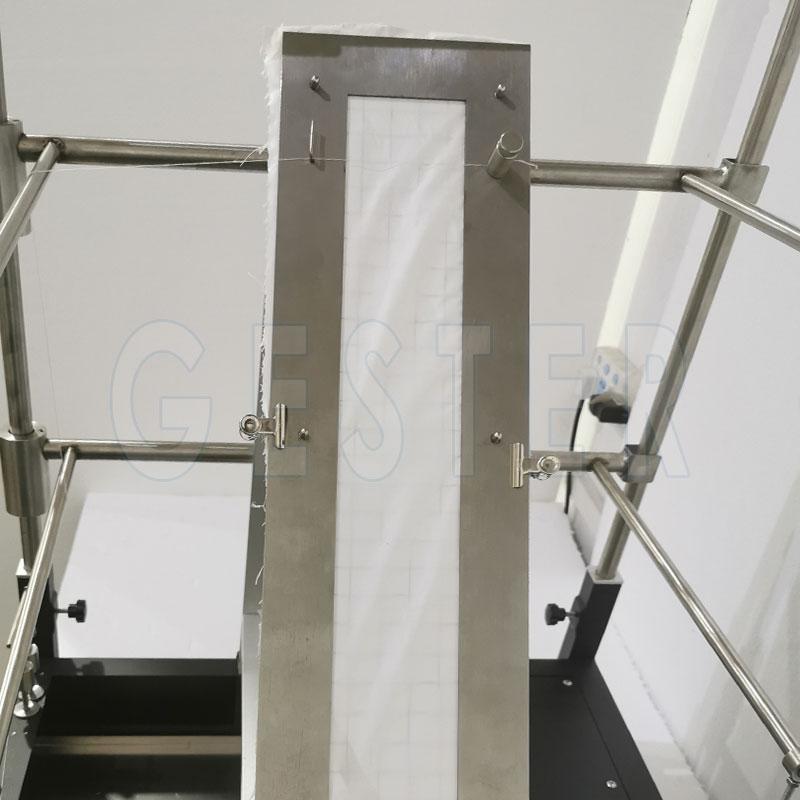

45 Degree Fixture

(U-Type Clamp)

Pack of 1

T-Type Fixture

Pack of 1

U-Type Fork

Pack of 1

V-Type Fork

Pack of 2

Thread Clamp

Pack of 1

Cotton Thread

Pack of 2

Hammer

Pack of 4

Tag Line Guide Ring

Pack of 4

Pinch-cock

Pack of 1

Burner

Pack of 1

Wrench

Pack of 1

Power Line



Application Industry



All kinds of Toys can be tested on the Toys Flammability Tester

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

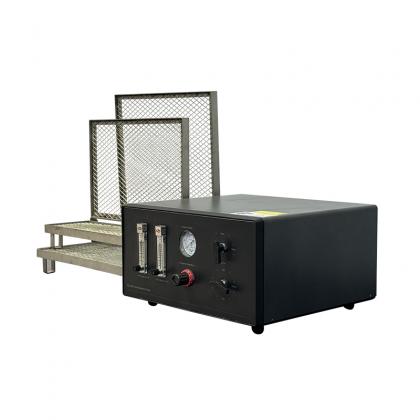

Flammability Testing Nailed Fixture
Flammability Testing Nailed Fixture GT-MB18
Flammability Testing Nailed Fixture mainly used to test the inflaming retarding performance for solid and soft toys according to ASTM standard.
Read More

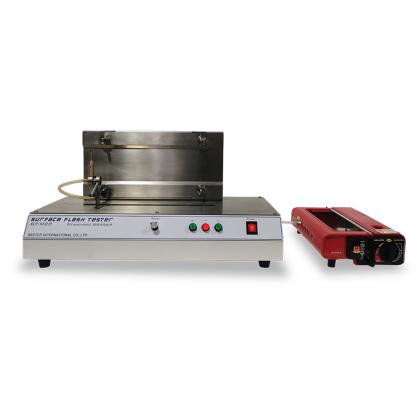

Surface Flash Tester
