Low Temperature ROSS Flexing Tester GT-KB05B Low Temperature ROSS Flexing Tester GT-KB05B
Low Temperature ROSS Flexing Tester GT-KB05B
  • Brand:

    GESTER
  • Item No.:

    GT-KB05B
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    ASTM D1052, SATRA TM60, BS5131 : 2.1, GB 20265 section 4.2, ISO 5423, ISO4643, HG/T2411
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Payment:

    T/T, L/C
contact now

Low Temperature ROSS Flexing Tester GT-KB05B


Product Introduction

Application:

Low Temperature ROSS Flexing Tester is used to determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending.

Standards:
ASTM D1052, SATRA TM60, BS5131 : 2.1, GB 20265 section 4.2, ISO 5423, ISO4643, HG/T2411

Feature

1.Body paint baking processed, easy for maintenance.

2.Fixture in aluminum material and surface processed with oxidation.

3.Equip with digital counter, automatically stop after test finished.

4.The Chamber can meet test requirements with different temperature.

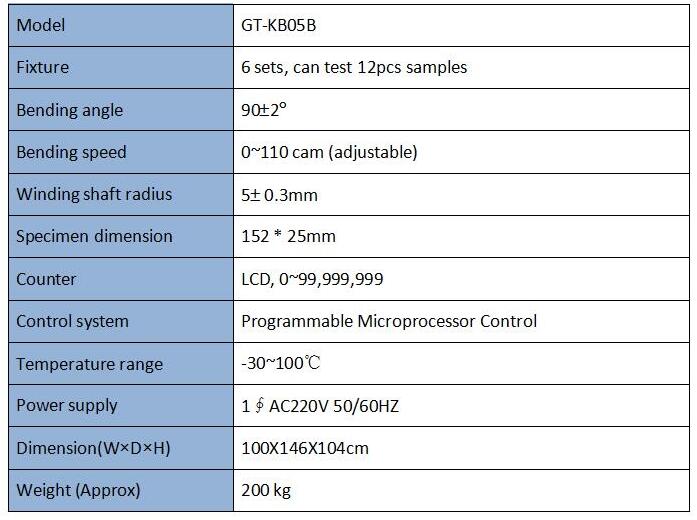

Key Specifications



Model

GT-KB05B

ROSS Flexing Parameters

Fixture

6 sets, can test 12pcs samples

Bending Angle

90±2°

Bending Speed

0~110 cpm (adjustable)

Winding Shaft Radius

5± 0.3mm

Specimen Dimension

152 * 25mm

Counter

LCD, 0~99,999,999

Control System

Touch Screen Programmable Microprocessor Control

Temperature Range

-40~100℃

Temperature Accuracy

+/-0.5

Inside Chamber Capacity

150L

Chamber Material

SUS # 304 Stainless Steel and Painted

Power Supply

1∮AC220V 50/60HZ

Dimension(W×D×H)

110X170X180 cm

Weight (Approx)

400 kg


Application Industry
All the below material can be tested on the Low Temperature ROSS Flexing Tester

Low Temperature ROSS Flexing Tester
