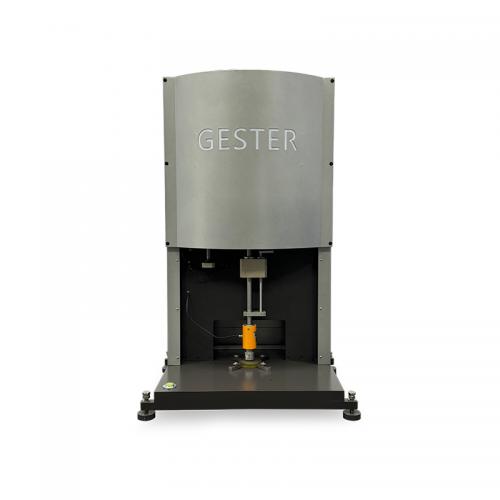

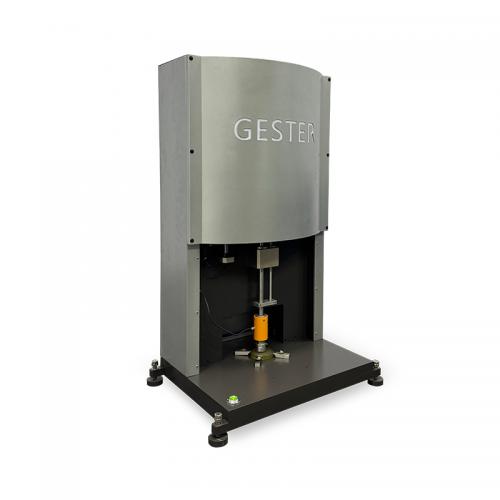

Protection Materials Shock Absorption Capacity Tester | Footwear Testing Machine Manufacturers Product Introduction Application: This footwear testing equipment is is used for determination of the shock absorption capacity of ankle protection materials incorporated into the upper. Feature 7inch color touch screen control with thermal printer to print test results. Equip with electromagnet absorption device and automatically grab impact head to set height. Protection Materials Shock Absorption Capacity Tester equip with two buffer cylinder, to avoid second impact. Key Specifications Model GT-KB16A GT-KB16B Drop height range 0- 300mm 0-1200mm Impact energy 10 J 50J Impact surface Rectangle 80x40 mm Impact striker mass 5000±10 g Anvil Φ50mm x height (175 ± 25) mm ,Corner radius R25 mm Φ100mm x height (180 ± 20) mm , Corner radius R50 mm Force sensor 100 kN , sampling frequency:1-30000Hz Power Supply 1∮AC220V 50HZ 5A Dimensions(L*W*H) About 80×50×140cm About 80×50×240cm Weight About 200kg About 250kg Standards EN ISO 20344 GB/T 20991 AS/NZS 2210.2 EN 1621
