Automatic Air Permeability Tester GT-C27

Air Permeability Tester To test the air permeability of Protective Clothing etc.
  • Brand:

    GESTER
  • Product Detail

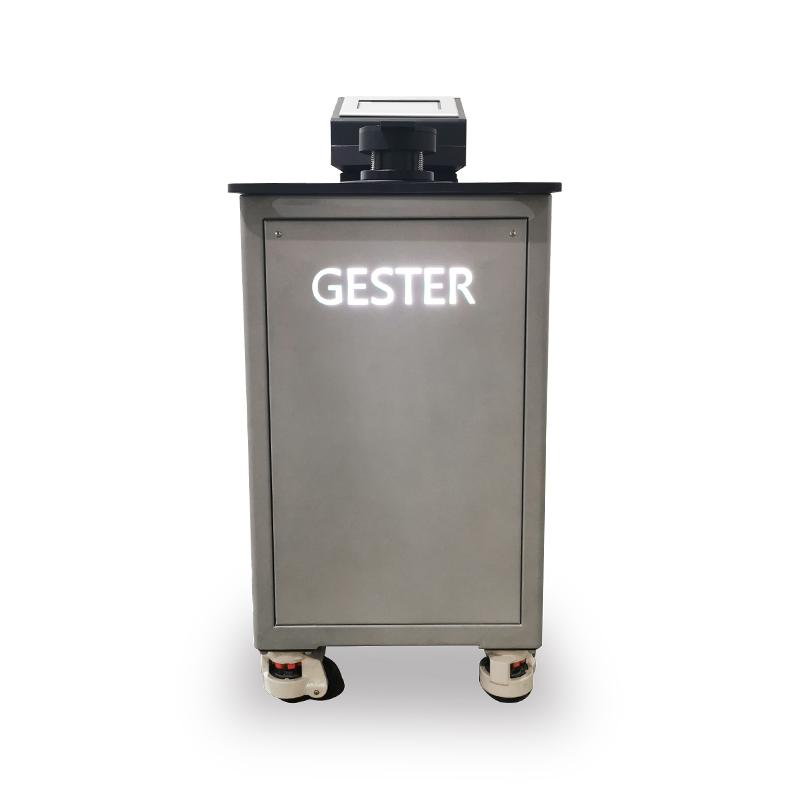

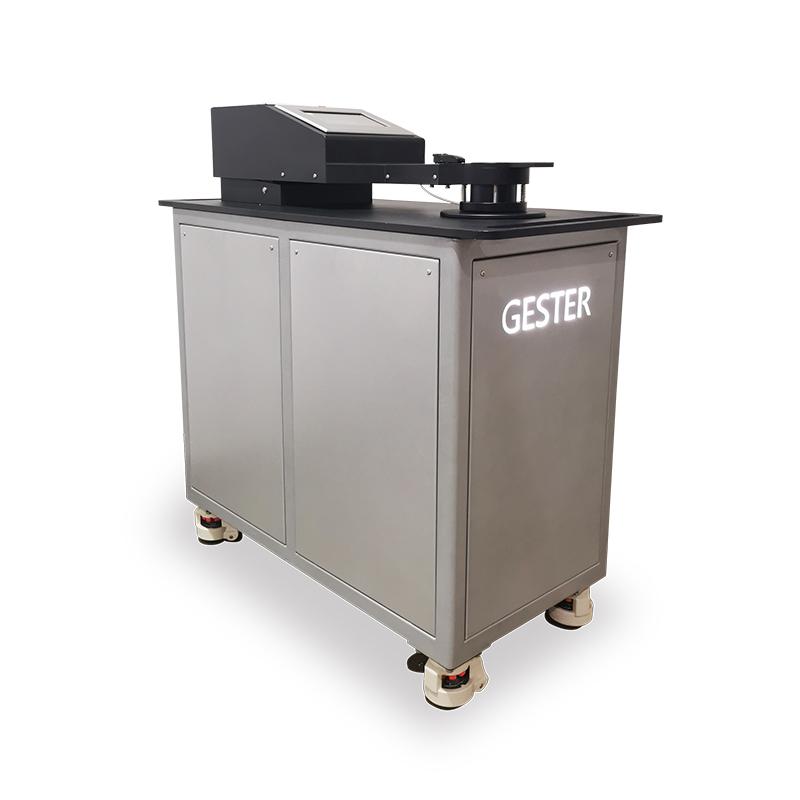

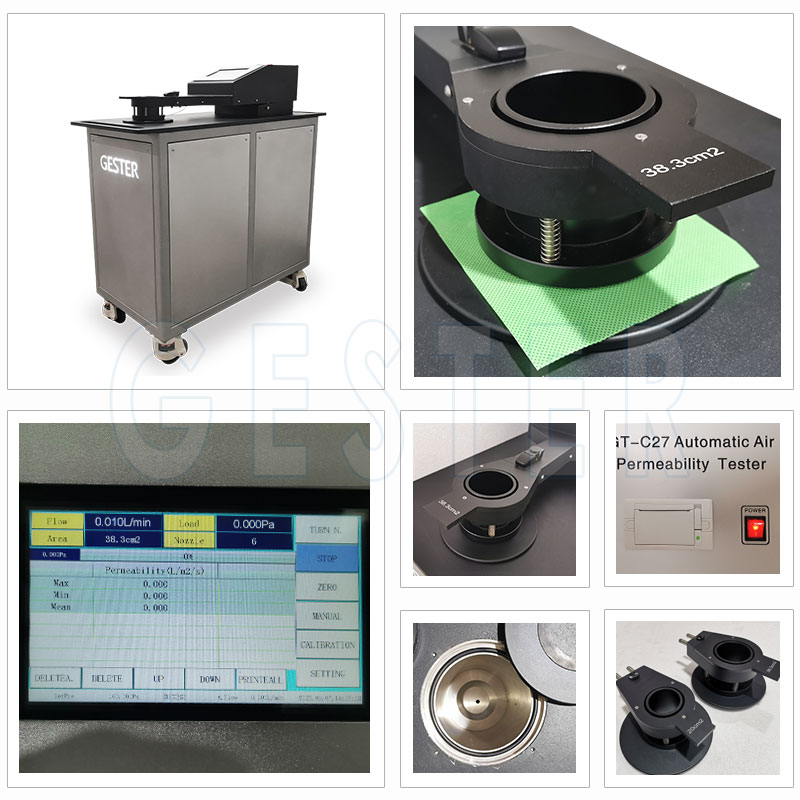

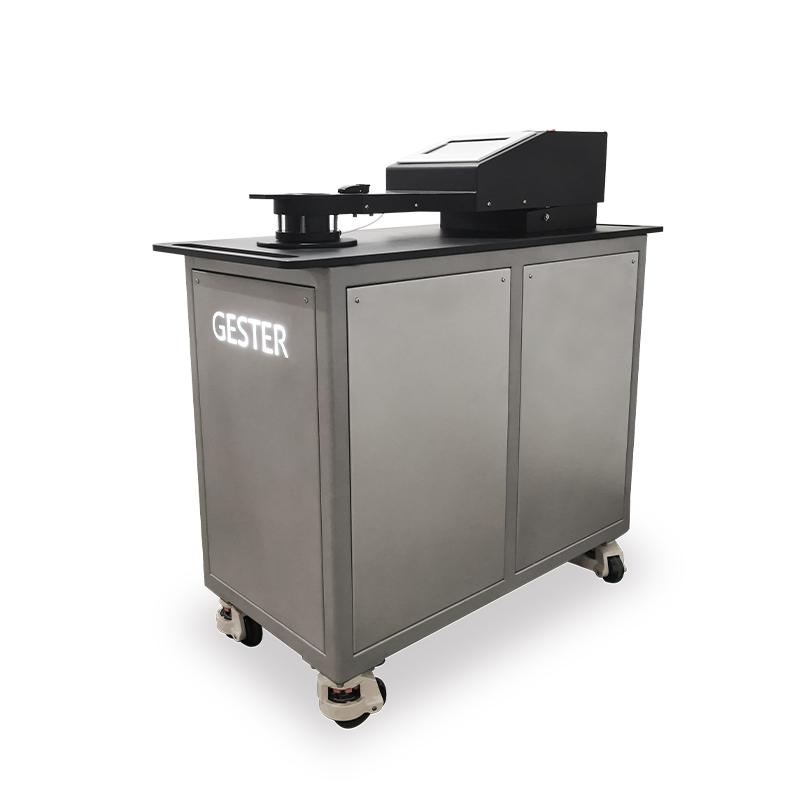

Automatic Air Permeability Tester GT-C27



Product Introduction

Application:

Air Permeability Tester To test the air permeability of various woven fabrics, knitted fabrics, non-woven fabrics, Protective Clothing, industrial filter materials etc.



Standards:
GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JISL1096, AFNORG 07-111, EDANA140.1,  ISO 9073-15

Feature

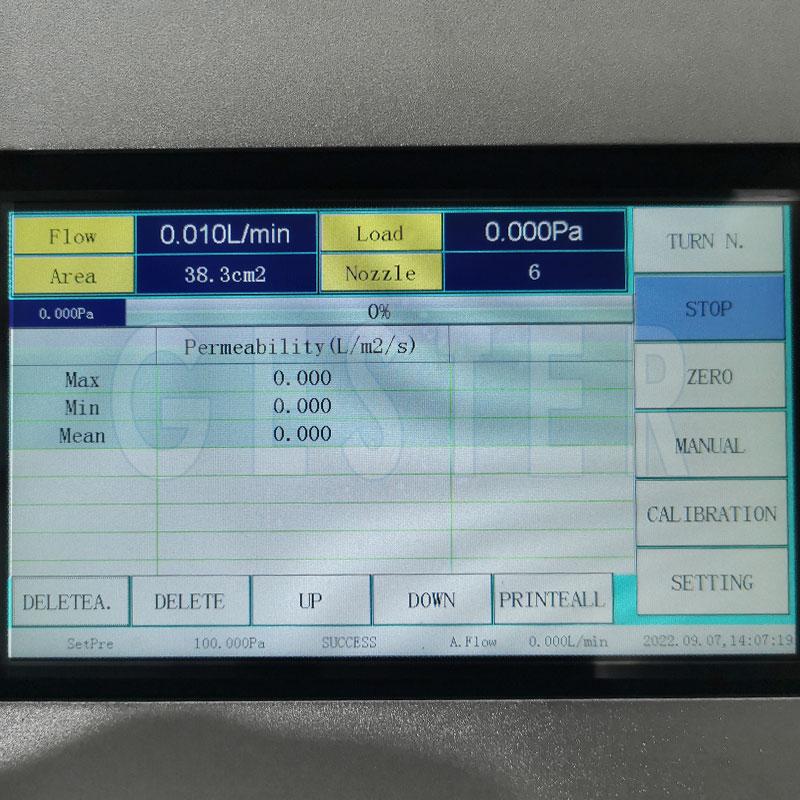

1. 7-Inch Touch Screen Control as well as operating by connect to the computer
2. Full range and automatic detection.
3. Test head size can be automatically sense, and replacement is simple and convenient.
4. Adopt USA Dwyer high-precision pressure and differential pressure transducer to accurate data.
5. Variable hole test plate can be automatically cleaned to ensure accuracy.
6. Air Permeability Tester Equipped with thermal printer to print the experiment result.
7. Microcomputer processing without manual calculation and the test result can displayed directly.
8. Built-in 7 testing units: mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s, cfm.
9. Testing arm is pneumatic controlled and can press and put up automatically.
10. Air Permeability Testing Equipment Equipped with 11 nozzle with different calibers to meet different specimens.



Air Permeability Tester Key Specifications


Model

GT-C27A

GT-C27B

Operation display

PLC+Touch Screen

PLC+Touch Screen

+PC Control

Test method

Automatically

Test time

1015s

Nozzle pressure difference

4,000Pa

Specimen pressure difference

1,000Pa

Data port

RS232C

Permeability range

0.112000mm/s

Measuring error

≤±2

Measuring unit

mm/s, m3/m2/min, cm3/cm2/s, m3m2/h, L/dm2/min, L/m2/s, cfm

Testing area

5cm2, 20cm2, 50cm2, 100cm2,

Ф50mm (≈19.6cm2), Ф70mm(≈38.3cm2)

Fabric thickness

≤12mm

Nozzle parameter

Number

0

1

2

3

4

5

6

7

8

9



Dia. mm

0.8

1.2

2

3

4

6

8

10

12

16

Power supply

AC 220V 50/60HZ, 2KW

Dimensions

1020 x 460 x 1016mm (L x W x H)

Weight

93kg

Accessories:

Model

GT-C27A

GT-C27B

Standard accessories

1Set

20cm2 Test plate and fixture

20cm2 Test plate and fixture

1Set

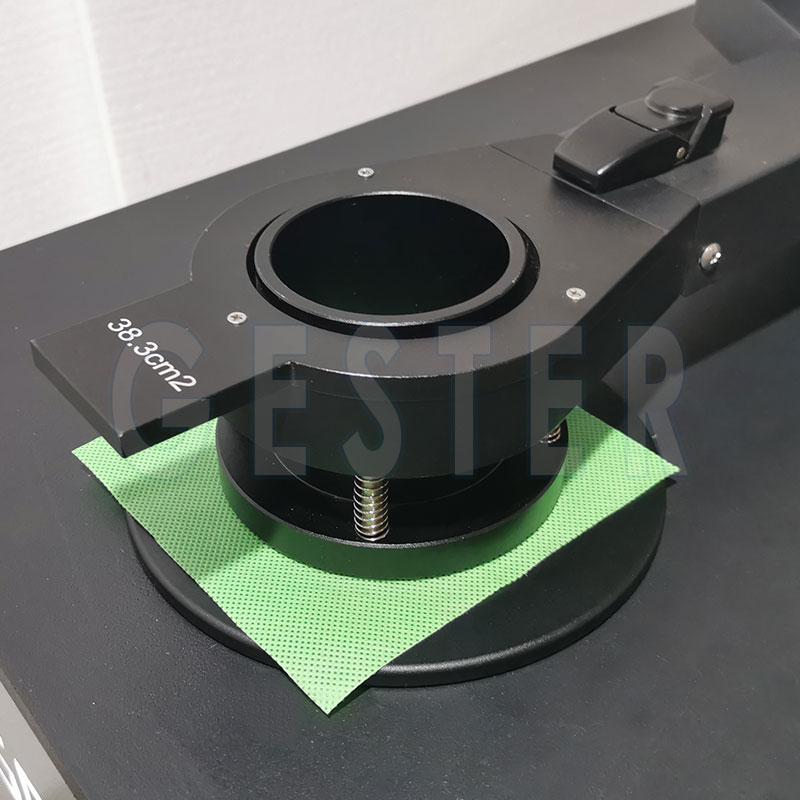

38.3cm2 Test plate and fixture

38.3cm2 Test plate and fixture

1Set

Standard calibration plate

Standard calibration plate

1Set

Nozzle

Nozzle

1pc

Power Line

Power Line

1pc

/

Operation software

1pc

/

Cable connect with PC

Optional accessories

Optional

Other Test plate and fixtures

Other Test plate and fixtures

Optional

Air compressor

Air compressor

Optional

/

Computer
