‌Textile Contact Coolness Tester GT-C150B

Brand:
GESTER
Item NO.:
GT-C150B
Order(MOQ):
1
Lead Time：
15-30 Days

Inquire now

Product Detail

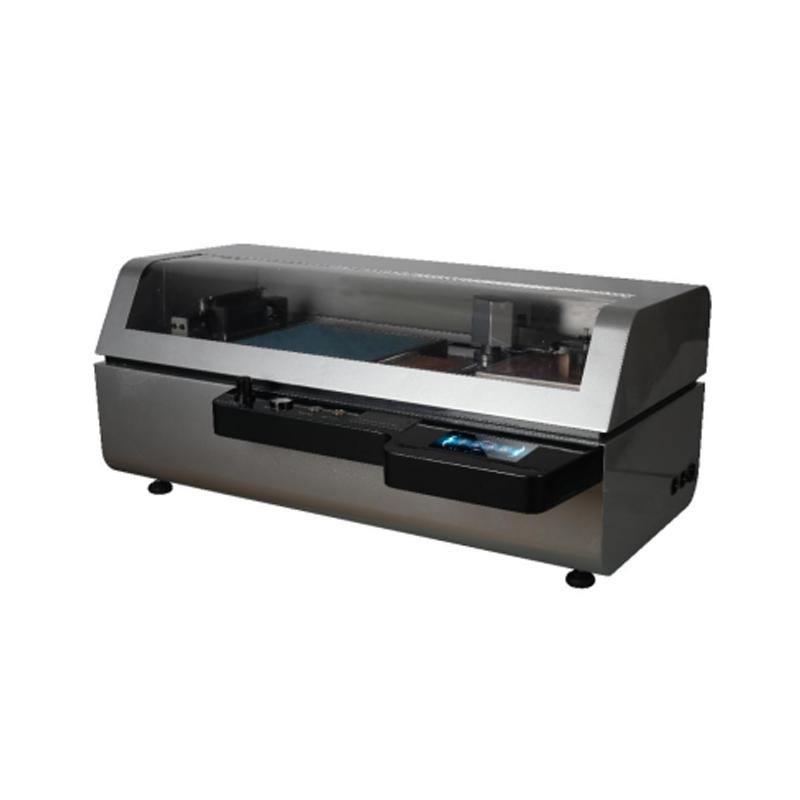

Cool Feeling Tester GT-C150B | Instantaneous Cooling Sensation Measurement for Textiles & Bamboo Mats

Product Introduction

Application:

This machine is used for testing the instantaneous cooling sensation of fabrics, bamboo-woven cool mats and other sheet materials in contact with the skin.

1.It is Human-machine interactive touchscreen interface. Automatic calculation/display of test results for easy reading.

2.It can measure the instantaneous cool sensation when skin contacts cooler textiles or bamboo mats (caused by rapid heat loss and temperature drop, transmitted via skin's temperature-sensitive nerve endings).

2.It’s suitable for textiles (fibers, yarns, fabrics, nonwovens, products) and bamboo mats to evaluate instantaneous contact coolness. Other materials applicable by reference.

Standards

GB/T 35263, T/CTCA4—2018, FTTS-FA-019, JIS L1927

Cool Feeling Tester Feature

Compliant with GB, JIS, and bamboo mat test methods.

Robotic arm for automatic test block loading (reduces human error); manual loading optional.

Enclosed body structure to maintain consistent test environment.

Key Specifications

Model	GT-C150B
Application	Fabrics, bamboo mat and other sheet materials
Temperature Range of Heating Plate & Bamboo Mat Probe	20℃～40℃
Temperature Resolution	0.01℃
Temperature Sensor Response Time	0.1 S
Probe	Fabric probe (GB/JIS Compliance): Copper plate area: 9 cm²; Pressure: (0.1±0.01) N/cm² Bamboo mat probe: mass: 1.1 kg Heat flux sensor size: 100 mm × 50 mm; Measurement Accuracy: ±2%
Contact Coolness Coefficient (Qmax) Resolution	0.001 J/cm²·s
Sample Size	Textile — 200 mm × 200 mm Bamboo mat — 400 mm × 200 mm
Test Environment Requirements	(20±0.5)℃, 65% RH (Constant temperature and Humidity chamber)
Power Supply	AC220V±10%, 50Hz, 100W
Dimensions(L×W×H)	1100mm×580mm×446mm
Weight	Approx. 80kg
