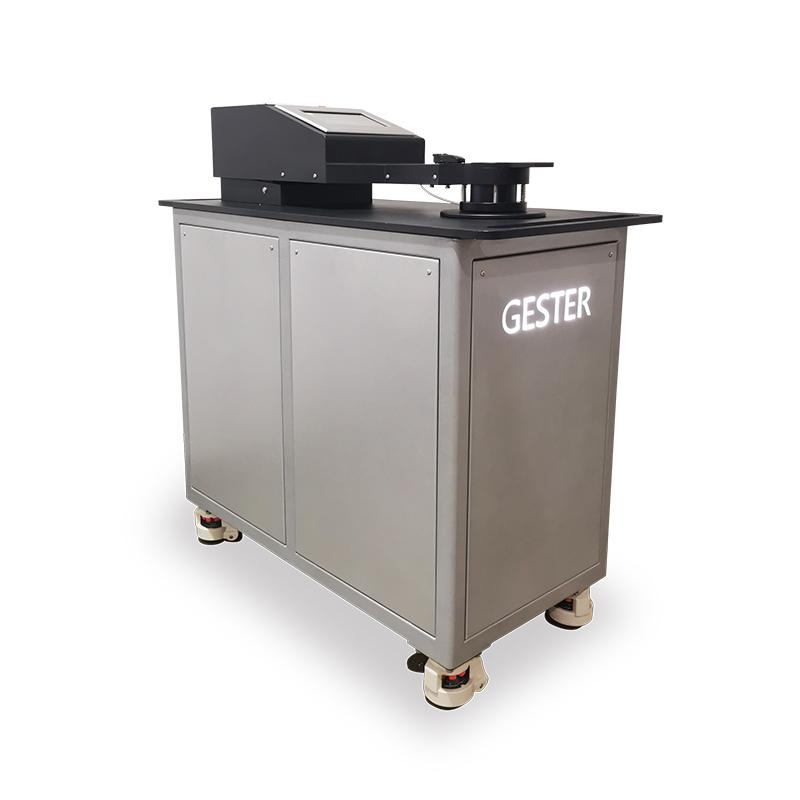

Automatic Air Permeability Tester of Textile Fabrics GT-C27

Automatic Air Permeability Tester is used to test the air permeability of various woven fabrics, knitted fabrics, non-woven fabrics, industrial filter materials etc

  • Brand:

    GESTER
  • Item NO.:

    GT-C27
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 Days
  • Product Detail

Automatic Air Permeability Tester of Textile Fabrics GT-C27



Product Introduction of air permeability tester

Application:

Air Permeability Tester is used to test the air permeability of textile fabricsvarious woven fabrics, knitted fabrics, non-woven fabrics, industrial filter materials etc.


Standards:

GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JISL1096, AFNORG 07-111, EDANA140.1, ISO 9073-15



Feature of air permeability tester

  1. High precision import pressure and pressure differential sensor to ensuring the accuracy of data.
  2. Microcomputer processing without manual calculation and the test result can displayed directly.
  3. Air Permeability Testing Machine equipped with thermal printer to print the experiment result.
  4. Built-in 7 testing units: mm/sm3/m2.mincm3/cm2.sm3/m2.h, cfm, L/dm2.min, L/m2.s

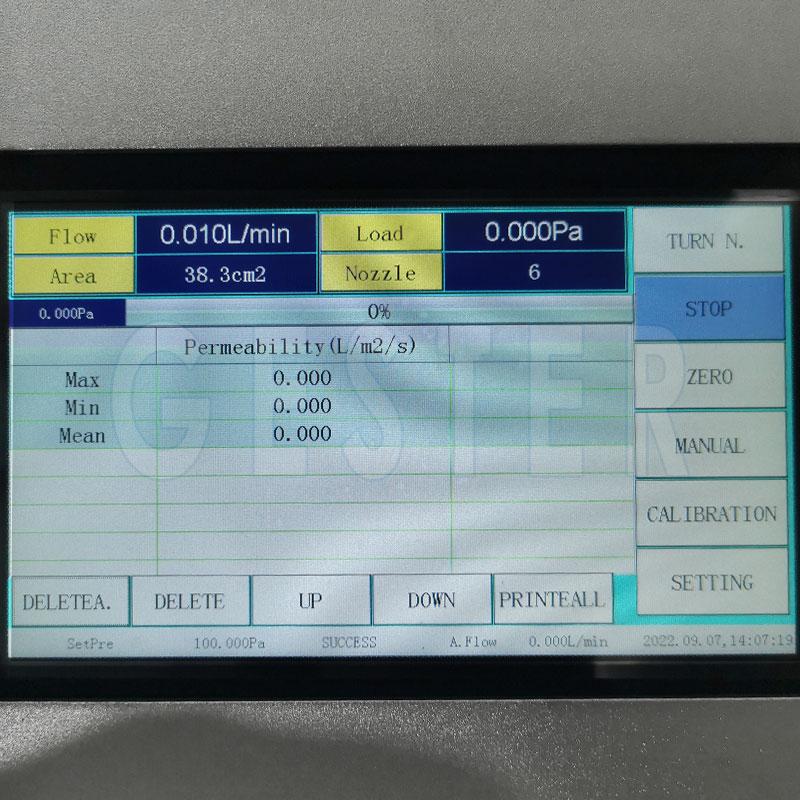

  5. Touch Screen Control as well as operating by connect to the computer
  6. Testing arm was pneumatic controlled and can press and put up automatically
  7. Air Permeability Tester Equipped with 11 nozzle with different calibers to meet different specimens.
  8. The air permeability tester can change the nozzle manually.

Key Specifications of air permeability tester



Model

GT-C27A

GT-C27B

Operation display

 PLC+Touch Screen

PLC+Touch

Screen+PC Control

Test method

 Automatically

Test time

 1015s

Nozzle pressure difference

 4,000Pa

Specimen pressure difference

 1,000Pa

Data port

 RS232C

Permeability range

 0.112000mm/s

Measuring error

 ≤±2

Measuring unit

 mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min

Testing area

 5cm2, 20cm2, 50cm2, 100cm2 ,

 Ф50mm (≈19.6cm2), Ф70mm(≈38.5cm2)

Fabric thickness

 ≤12mm

Nozzle parameter

Number

 0

1

2

3

4

5

6

7

8

9

Dia. mm

 0.8

1.2

2

3

4

6

8

10

12

16

Power supply

 AC 220V 50/60HZ, 2KW

Dimensions

 700 x 520 x 1100mm (L x W x H)

Weight

 93kg

Accessories

Model

GT-C27A

GT-C27B

Standard accessories

1Set

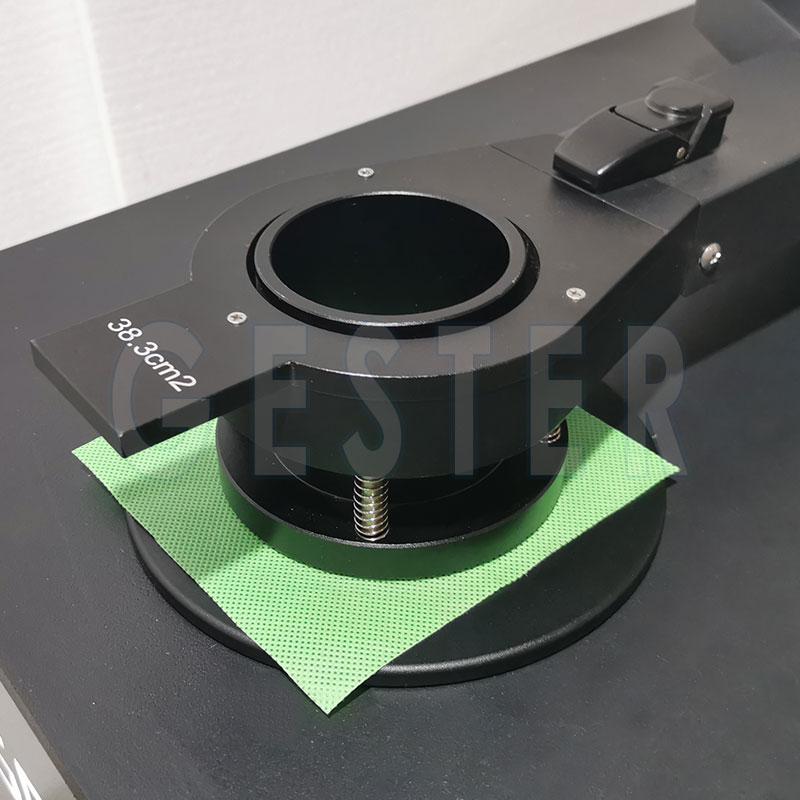

 20cm2 Test plate and fixture

 20cm2 Test plate and fixture

1Set

 38.5cm2 Test plate and fixture

 38.5cm2 Test plate and fixture

1Set

 Standard calibration plate

 Standard calibration plate

1Set

 Nozzle

 Nozzle

1pc

 Power Line

 Power Line

1pc

/

Operation software

1pc

/

Cable connect with PC

Optional accessories

Optional

 Other Test plate and fixtures

Other Test plate and fixtures

Optional

 Air compressor

Air compressor

Optional

/

Computer


air permeability tester
