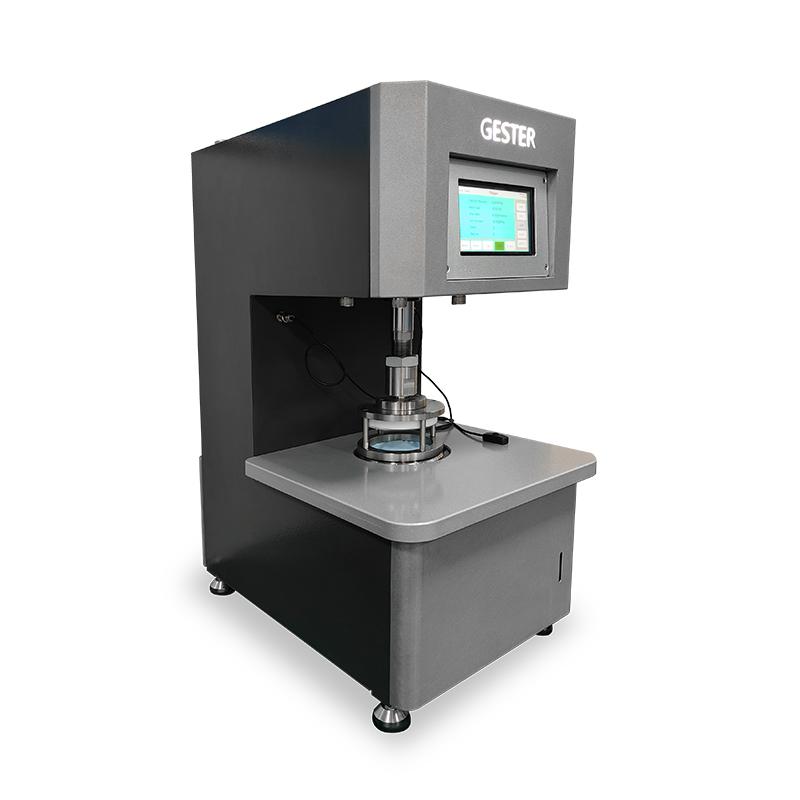

Protective Clothing Tester Hydrostatic Head Testing Machine CT-C26A

Hydrostatic Head Tester is a high-precision testing instrument designed to measure the water penetration resistance of various fabrics, including medical protective clothing, outdoor performance gear, and coated textiles. By applying a constant hydrostatic pressure, it accurately determines the point of water leakage, ensuring products meet international safety and quality standards.
  • Brand:

    GESTER
  • Item NO.:

    CT-C26A
  • Order(MOQ):

    1
  • Product Detail

Protective Clothing Tester Hydrostatic Head Testing Machine CT-C26A



Product Introduction

Application:

Digital Hydrostatic Head Tester is used to test the waterproof properties of fabrics through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile, protective clothing.

Standards:

AATCC 127 Option 2, ISO 811, ISO 1420, GB/T 4744, GB/T 9082, FZT 01004 , DIN 53886 ,

EN 20811, EN 13726-3, EN 1734, BS 2823, WSP 80.6, JIS L1092-7.1.1 Method A


Hydrostatic Head Testing Machine Feature
  1. Hydrostatic Head Testing Machine Touch-Screen display with English menu.
  2. Internally installed water tank design and original water pressure balance system makes the rate of rise stable and exact.



Key Specifications



Model

GT-C26A

Testing range

500pa-200kpa

Water pressure increase rate

1kpa-30kpa

Accuracy

0.2%F.S

Clamping method

Pneumatic clamping

Specimen test area

100cm2

Testing mode

1) P. Rise
2) Const P & Timing
3) Const P & Time
4) Water Penetration
5) Fatigue

Testing unit

KPa, PSI, mmH2O, cmH2O, mbar, mmHg

Power supply

AC 220V 50/60HZ

Dimension

600 x 450 x 640mm (L x W x H)

Weight

60 kg


Frequently Asked Questions (FAQ)


Q1: Which international standards does the GESTER Hydrostatic Head Tester CT-C26A comply with?
A: The CT-C26A is a multi-functional hydrostatic pressure tester (fabric waterproofness tester) designed to meet global requirements. It fully complies with ISO 811 (International), AATCC 127 (USA), DIN EN 20811 (Europe), and GB/T 4744 (China). This makes it ideal for manufacturers exporting to North America, the EU, and Asia.

Q2: Is the CT-C26A suitable for testing medical-grade protective clothing?
A: Yes. It is specifically engineered to test high-performance fabrics, including surgical gowns and drapes.

Q3: Does GESTER provide local calibration and technical support?
A: GESTER Instruments serves a global clientele. It offers comprehensive remote technical support and has a network of regional distributors to assist with on-site installation, calibration, and maintenance in many countries. Contact the sales team to find the nearest local service partner.

Q4: Can this Hydrostatic Pressure Tester handle different testing areas and pressure ranges?
A: The CT-C26A comes with a standard 100cm² test head, but optional test heads are available for specialized requirements. The pressure range is customizable, accommodating everything from light consumer fabrics to heavy-duty industrial tarpaulins.
