Pneumatic Bursting Strength Tester for Protective Clothing GT-C12B

Pneumatic Bursting Strength Tester 20+ years R & D sales experience, Perfect after-sales service.
  • Brand:

    GESTER
  • Item NO.:

    GT-C12B
  • Order(MOQ):

    1
  • Product Detail

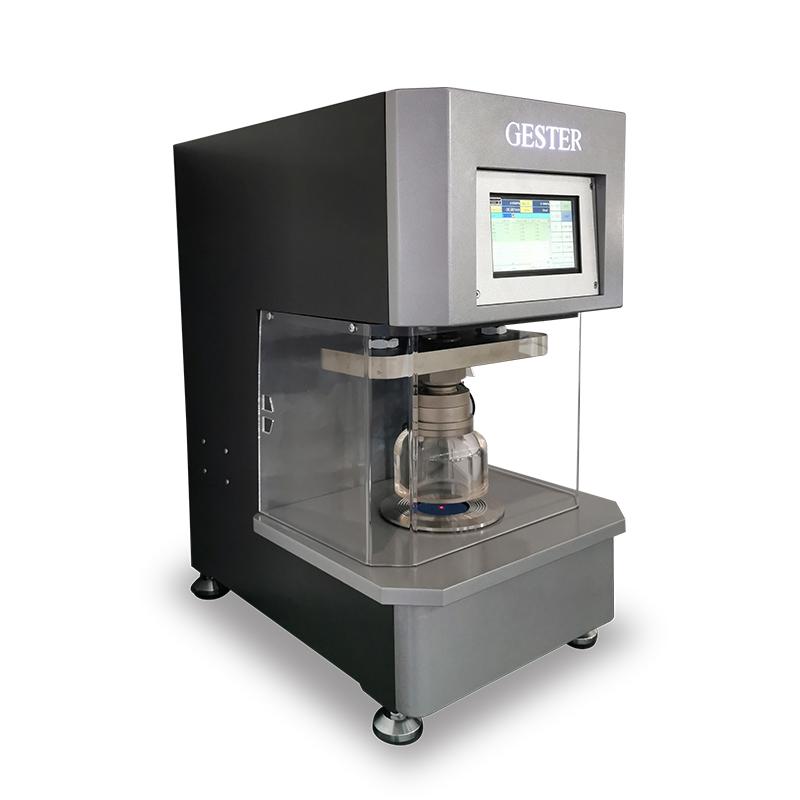

Pneumatic Bursting Strength Tester for Protective Clothing GT-C12B



Product Introduction

Application:

Pneumatic Bursting Strength Tester For determining the bursting strength of woven or knitted fabrics, non-woven, paper, protective clothing, leather and board by application of a pneumatic load under a rubber diaphragm of a specific area. Provide with a digital readout of pressure with peak value hold facility, renewable rubber diaphragms, and manual clamping device with acrylic bell, forward reverse and neutral drive system. Provide accurate elongation information of fabrics, up to 0.1mm.



Standards:
FZ/T60019, ISO2960, ASTM D3786, M&S P27, JIS L-1096, ISO 13938-2

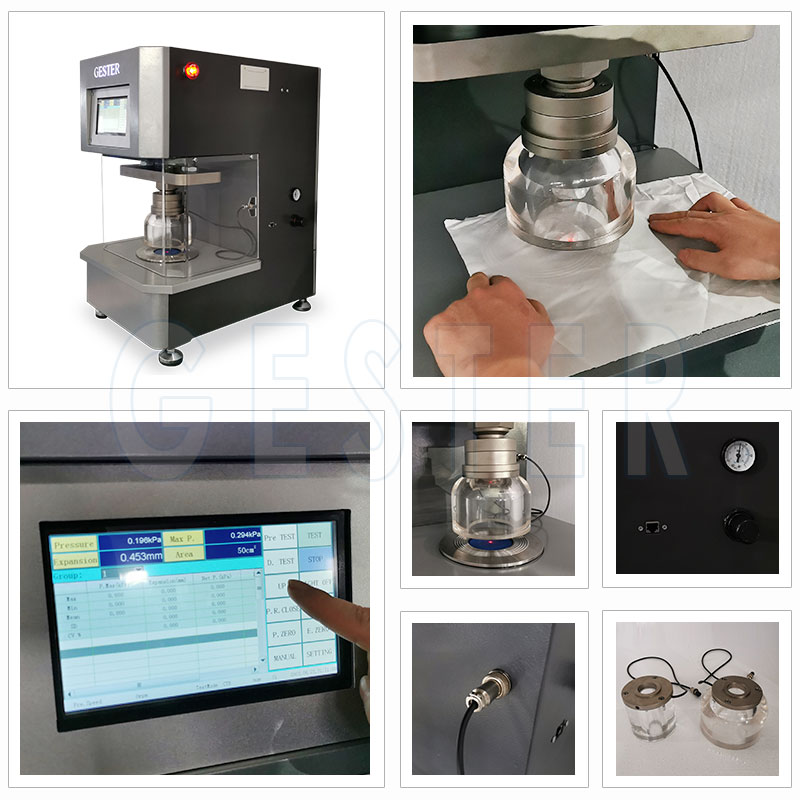

Feature
1. This Protective Clothing Bursting Strength Tester use pneumatic method, meet multinational standards and equipped with several changeable test clamp.
2. The simple interface touching screen controller is easy and simple to handle.
3. The specimen was clamped firmly by the pneumatic force which can also save effort.
4. The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily
5. Protective Clothing Bursting Strength Tester can induct the burst automatically which is much more sensitive and reliable.
6. The AC servo drive system with low noise and wide range of applications.
7. The bursting strength tester bring saving and printing functions and support on-line operation.
8. Provide on-line interfaces, professional detection software which can be used to analysis testing result.



Key Specifications

Model

GT-C12B

Range



1.50Mpa

The min. division value



0.002Mpa

Test area

7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm),

50cm2 (Φ79.8mm),  100 cm2( Φ112.8mm) can be option

Thickness of rubber diaphragm

≤2mm

Pressure speed

100ml/min - 500ml/min

Accuracy


±1 mm, when the height at burst up to 70 mm

Testing units

Kpa, kgf/ cm2, atm, mmHg, lb/in2  free shift

Test method

Constant Time Bursting

Output

Printer, display output, and can be connected to the computer

Power supply

AC 220V 50/60HZ  200W

Dimensions

600×400×530mm

Weight

200 kg
