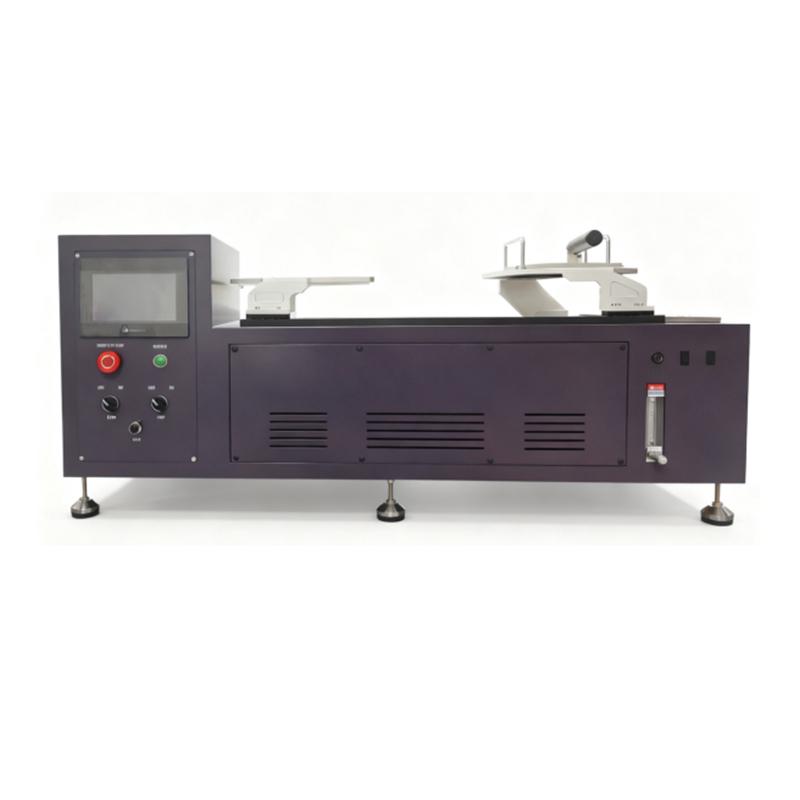

Model

GT-RC02A

Heat Flux Measurement Range

0–167 kW/m²

Heat Flux Measurement Accuracy

±2 kW/m²

Specimen Irradiated Size

≥200mm*200mm, for testing flame-retardant protective clothing, fire-fighting suits and protective gloves

Convection Heat Source

2 Merkel lamps

(Heat flux: up to 60 kW/m²; Radiant heat flux: up to 40 kW/m²)

Rotor Propane Gas Flowmeter

Provides precise, stable propane flow for the burner

Radiant Heat Source

9pcs of 500W infrared quartz lamps

(proportional power control for 0–30 kW/m²radiant heat flux)

ASTM F2703 Copper Calorimeter

Accuracy ±3% F.S.; Weight 1000±10 g

Copper Calorimeter Copper Plate

Imported Oxygen-Free superconducting copper

Data Acquisition System Sampling Rate

≥ 20 samples/second

Environment

15–35℃

Fume Hood

Recommended internal dimensions

 ≥150×75×90 cm, including door height

Gas Source

Propane (Purity ≥95%, equipped with pressure reducing valve - cylinder & outlet pressure controlled)

Compressed Air

Customer-supplied

Cooling Water Source

Tap water (inlet & outlet) or optional chiller

Power supply

Single phase AC220V 50Hz

Dimension

130×65×53cm (LXWXH)

Weight

Around 60kg
