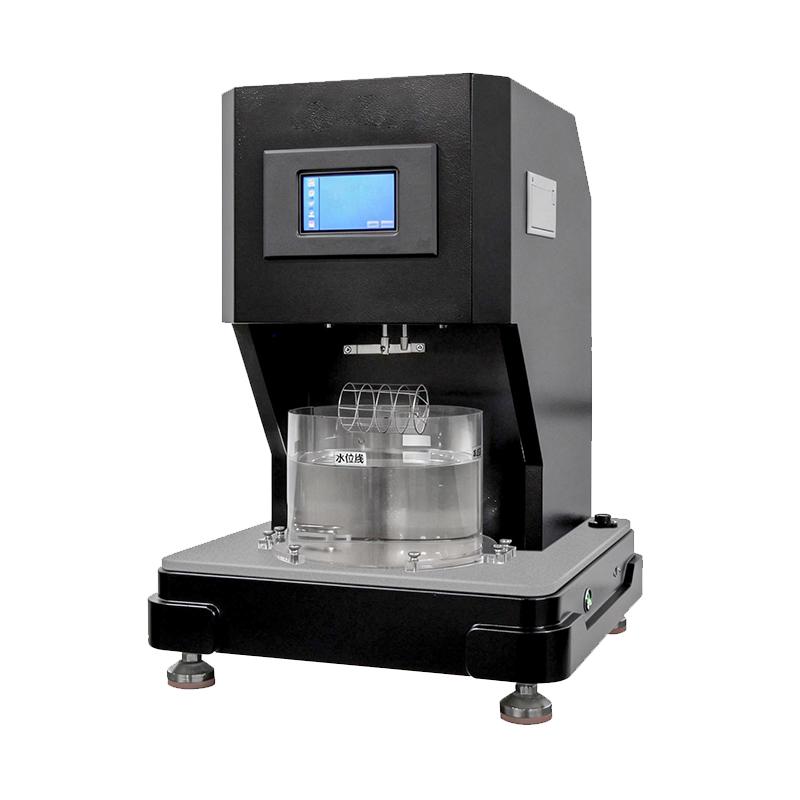

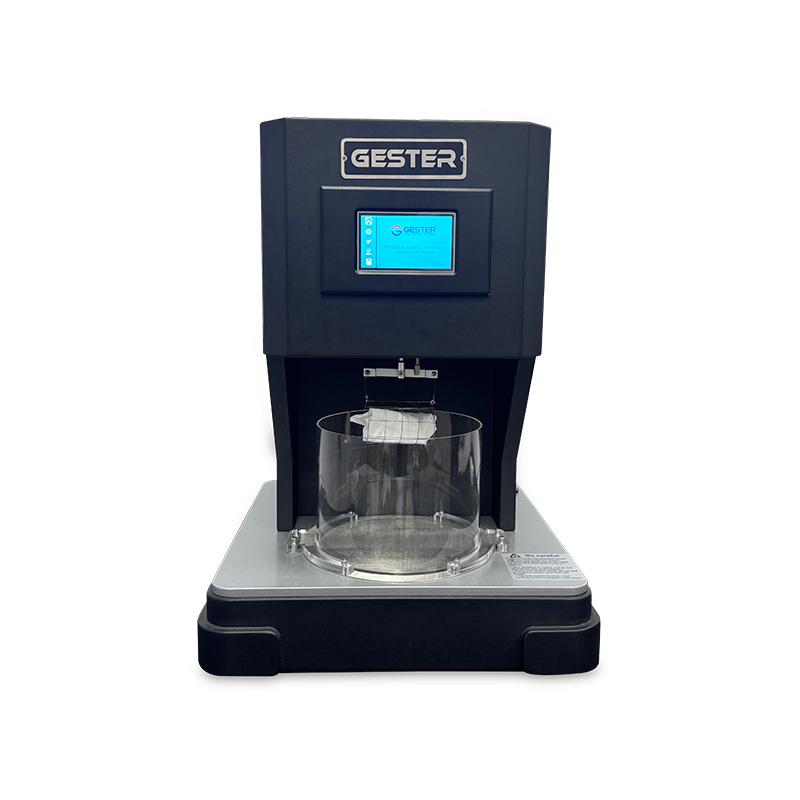

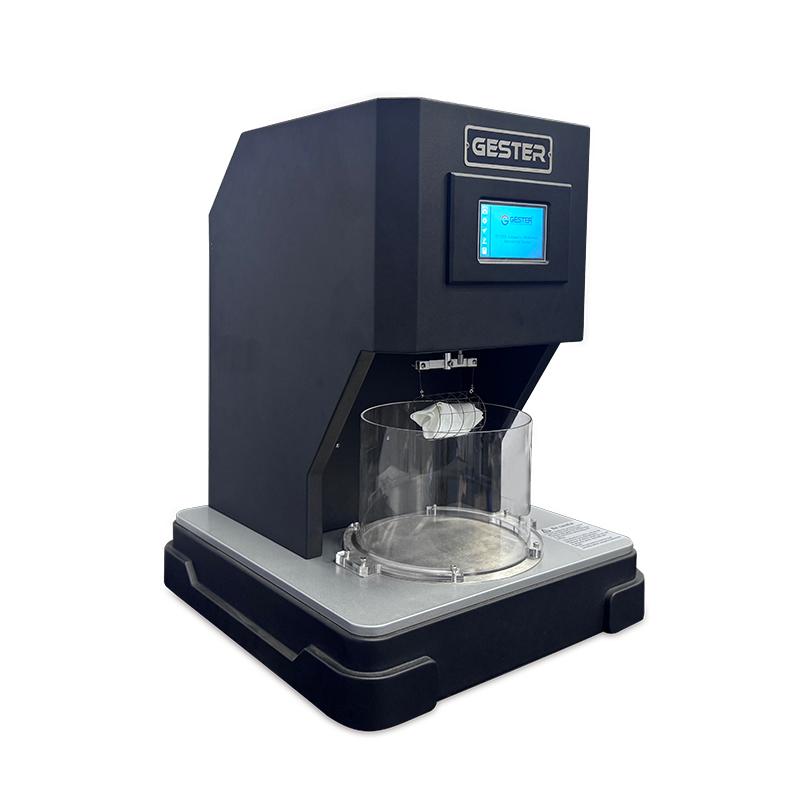

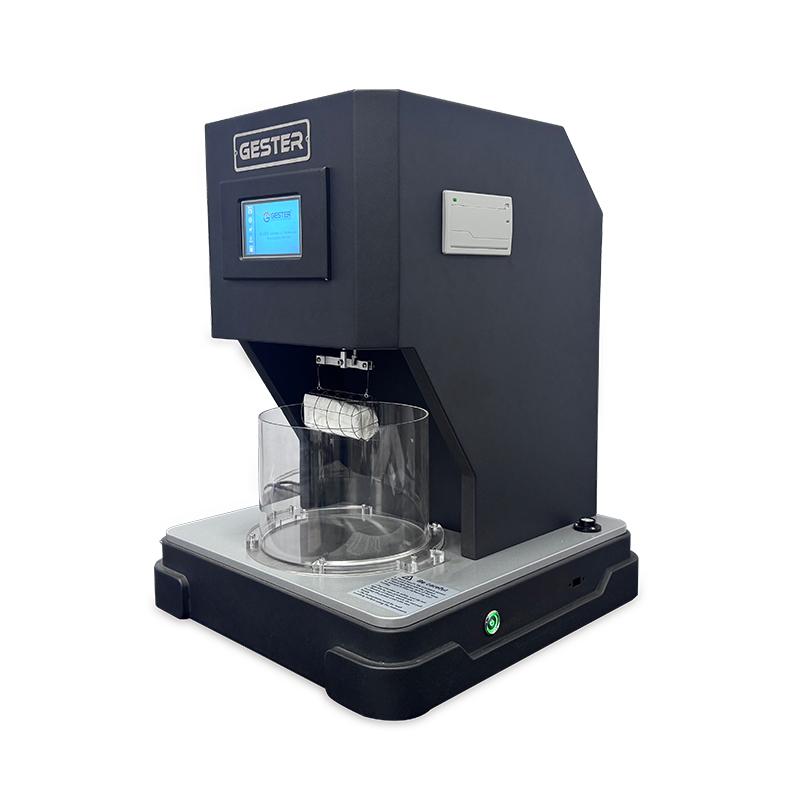

Automatic Nonwovens Absorption Tester GT-CN26

The Automatic Nonwovens Absorption Tester GT-CN26 is a professional-grade laboratory instrument. It is designed to quantify the liquid absorbency time and liquid absorption capacity of nonwoven fabrics. This equipment uses the standardized wire basket immersion method. It is essential for manufacturers of hygiene products, medical textiles, and industrial sorbents. These manufacturers require data on material wetting and fluid retention.

Brand:
GESTER
Item NO.:
GT-CN26
Order(MOQ):
1

Inquire now

Product Detail

Automatic Nonwovens Absorption Tester GT-CN26

Product Introduction

Application:

This machine is used to measuring the liquid absorbency time and liquid absorption capacity of nonwovens.

Standards:

ISO 9073-6 Section 4 Liquid absorbency time, DIN NF EN ISO 12625-8, GB/T 24328.6-2020, BS7033

The Absorbency Tester GT-CN26 is the preferred solution for assessing:

Hygiene Products: Diaper core absorption rates and feminine care product capacity.
Medical Supplies: Absorbency of surgical gauze, bandages, and medical drapes.
Industrial Materials: Performance of sorbent pads, filtration media, and wiping cloths.

Feature

Touch screen control with English menus, featuring a man-machine interaction mode for easy operation.
Built-in thermal printer, enabling quick on-site printing of test results.
Simulates the free fall of the wire basket into water; the transparent water tank facilitates observation of the sample's water absorption.
High-precision sensor with excellent linearity and strong stability.
One-key start, which automatically completes the entire test process.

Key Specifications

Model	GT-CN26
Testing Range	0～200g
Resolution	0.01g
Drop Mode	Free fall
Wire Basket	3g±0.1g; Wire diameter: 0.5mm
Power Supply	AC220V 50Hz 300W
