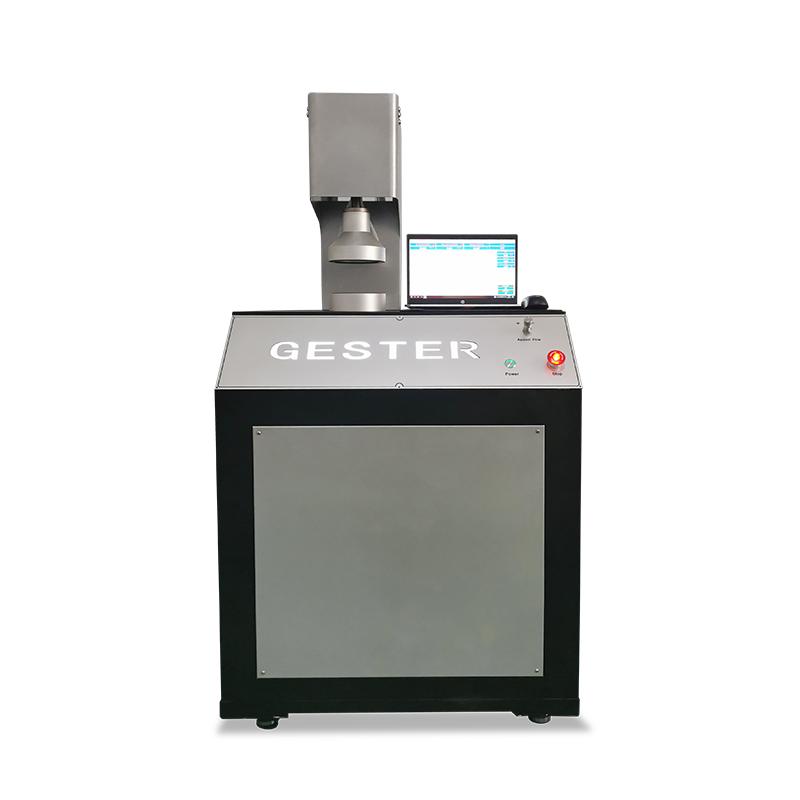

Automatic Particulate Filter Efficiency PFE Tester GT-RA09
  • Brand:

    GESTER
  • Item No.:

    GT-RA09
  • Certificate:

    ISO 9001, UKAS, CE Certificates
  • Standard:

    EN149, JIS/T 8151, NIOSH-42 CFR84, NBR15052, ASTM F2100 9.3
contact now

Automatic Particulate Filter Efficiency PFE Tester GT-RA09



Product Introduction

Application:

Particulate filtration efficiency (PFE) tester is suitable for rapid, accurate and stable detection of the filtration efficiency of various medical and daily protective masks, respirators, etc.



PFE Tester Feature:

1.Flow detection: The system test flow is mainly provided by dry and clean compressed air from the outside. Internal voltage stabilization and flow stabilization devices to ensure the stability of the detected flow, and the automatic control system is simple, fast and stable.
2.Test results: equipped with 7-inch touch screen, the test results are displayed directly on the interface, the user can choose to directly or save the data.
3.Data port: external memory card, export data without worrying about data loss.
4.Resistance detection: The resistance pressure difference of the filter material will be obtained through the static pressure ring of the upstream and downstream test chambers, adopt high-precision imported brand differential pressure transmitter to ensure the accuracy and stability of differential pressure.
5.Simple operation: the user only needs to place the filter paper in the fixture and press the button to adjust the test flow, the system will automatically test the resistance and efficiency through the controller (PLC).




Particulate Filtration Efficiency Tester Option Models


Model

GT-RA09A

GT-RA09B-1

GT-RA09B-2

GT-RA09C

Aerosol

Salt or Oil

Salt+Oil

Salt or Oil + Latex Spheres

Latex Spheres

Aerosol Channel

One

Two

Two

One

Efficiency detection

0.1-10μm  Photometer

0.1-10μm Photometer

0.1-5μm Particle counter

0.1-5μm Particle counter

Standards

EN149, EN143, JIS/T 8151, NIOSH-42 CFR84

GB 2626, GB/T 32610,

GB/T 19083

ASTM F2100 9.3, ASTM F2299 EN149, EN143, JIS/T 8151, NIOSH-42 CFR84

NBR15052

GB 2626, GB/T 32610, GB/T 19083

ASTM F2100 9.3, ASTM F2299



Control mode

Laptop computer + English operation software


Oil aerosol type: DEHS, DOP, Paraffin


PFE Tester Key Specification



Model

GT-RA09

Test flow range

15L / min ~ 100L / min, accuracy 2%

The air flow cross-sectional area

100cm²

Resistance test range

0 ~ 1000Pa, accuracy can reach 0.1Pa

Filtration efficiency test range

0 ~ 99.999%, resolution 0.001%

Test time

Simultaneous efficiency and resistance test: 70s

Test range

0.001 - 300mg/m3

Power supply

1phase 220V 50Hz



NIOSH-42 CFR84 testing machine

EN149 TESTING MACHINE
