Baby Trolley Dynamic Durability Testing Machine GT-MH23A

The machine is mainly used to test the dynamic durability of the baby trolley on irregular surfaces.

  • Brand:

    GESTER
  • Item NO.:

    GT-MH23A
  • Order(MOQ):

    1
  • Shipping Port:

    Xiamen
  • Lead Time:

    30 days
  • Product Detail

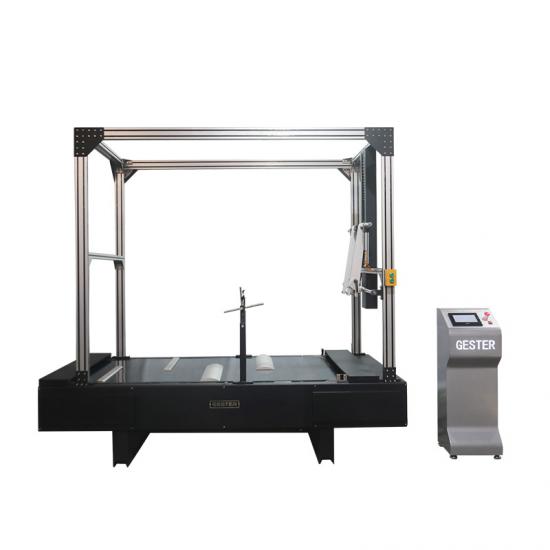

Baby Trolley Dynamic Durability Testing Machine GT-MH23A

Product Introduction

Application:

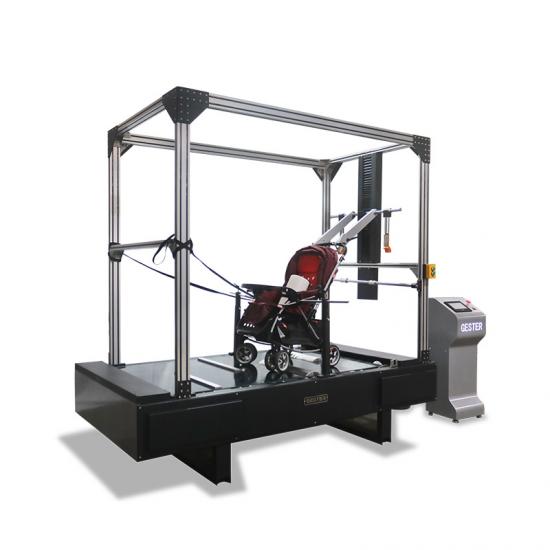

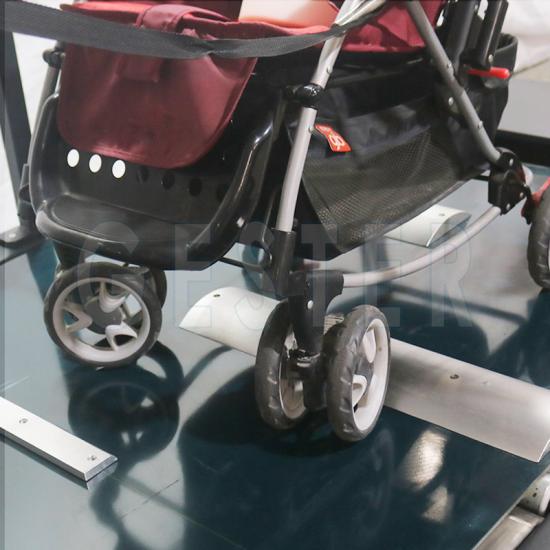

The machine is mainly used to test the dynamic durability of the baby trolley on irregular surfaces. The Baby Trolley Dynamic Durability Testing Machine is equipped with conveyor belt and the standard block is installed on the conveyor belt. The machine is a single station model, you can test a single stroller, or left and right two stroller.


Standards:
EN 1888-2012 Section5.10, 8.10.3, GB 14748-2006 Section 5.18


Feature
  • Special structure, to ensure that the belt never run away, will not appear the phenomenon of the belt to be stuck.
  • Display speed, distance, time and other data.
  • Can be programmed to control the number of tests, cycle test, the interval time.
  • Power off automatically saved, can be pre-selected to stop or continue to work.


Key Specifications



Conveyor belt speed

5Km/h, adjustable

Handle lever Adjustable distance

Approx. 300 mm

Baby carriage walking left and right lever

about 200 mm, adjustable

Control mode

PLC + 7 inch touch screen

Use power

AC220V, 50Hz

Outer dimensions (L×W×H)

2500×1260×2250 mm

Weight

about 800 kg



Optional accessories:

GT-MH01 Test Mass A, GT-MH02 Test Mass B,GT-MH06 Test Mass F
