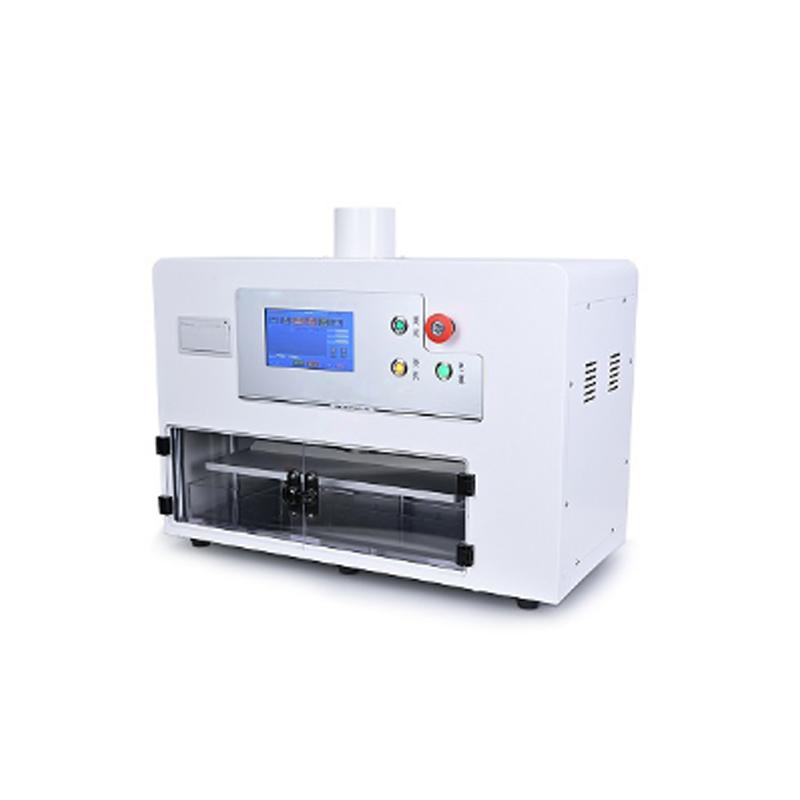

Package Compressive Resistance Tester GT-N79A

Product Introduction

Application

packaging compression tester is used for all kinds of plastic packaging bags, paper packaging bags pressure resistance test, to determine the pressure resistance of a variety of packaging bags.

Standards

GB/T 10004-2008, GB/T 16491, GB/T 4857.4, QB/T 1048

ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, JIS Z0212

Feature

Intelligent embedded operating system, humanized interface design, touch operation.
Packaging bag compression resistance tester: 7-inch color LCD touch screen, high-definition display effect.
One-key automatic test, automatic stop, back to the position.
Pressure resistance test, burst test multiple test modes.
Pressure plate overload protection, automatic return to the position, power-down memory full-featured configuration, to ensure the safety of data and instruments.
Standard configuration micro-printer, print the experimental data at any time.

Key Specifications

Model	GT-N79A
Test range	0～5000N（standard range, other ranges optional）
Test speed	1～300mm/min, stepless speed regulation
Test accuracy	Better than 0.5 grade
Measurable bag dimensions	350×260×100mm (Length × Width × Thickness)
Power supply	1Φ, AC220V, 50Hz
Dimension	540×380×520mm
Weight	48Kg
