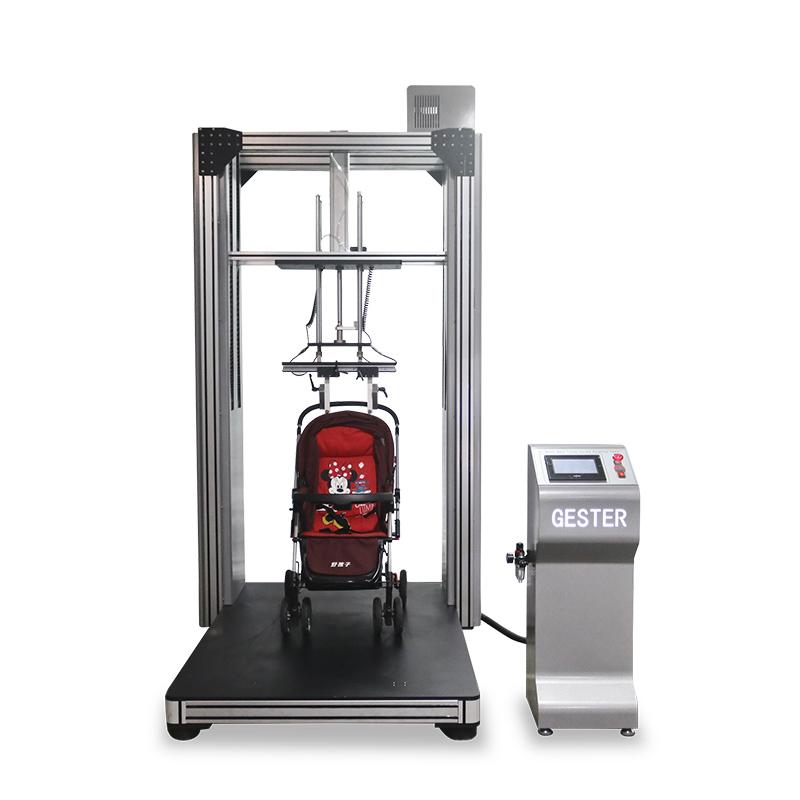

Baby Trolley Handle Durability Tester GT-MH25

This Stroller Handle Tester is suitable for baby trolley simulation over the barrier when the lifting and under the action of the durability test, the test method is to place the baby model in the car, raised when the car back to the ground 120±10mm, under pressure When the front wheel to the ground 120±10mm, 15±2 times per minute, and continue to test the number of times after the test, the visual car with or without damage.
  • Brand:

    GESTER
  • Item NO.:

    GT-MH25
  • Order(MOQ):

    1
  • Shipping Port:

    Xiamen
  • Lead Time:

    30 days
  • Product Detail


Baby Trolley Handle Durability Tester GT-MH25

Product Introduction

Application:

This Stroller Handle Tester is suitable for baby trolley simulation over the barrier when the lifting and under the action of the durability test, the test method is to place the baby model in the car, raised when the car back to the ground 120±10mm, under pressure When the front wheel to the ground 120±10mm, 15±2 times per minute, and continue to test the number of times after the

test, the visual car with or without damage.


Satndards:

EN 1888-2012 Section 8.10.6.2.2, 8.10.6.2.3; GB14748-2006 Section 5.12


Key Specifications



Test beams can be adjusted up and down

0-500mm

Lifting & push stroke can be adjusted range

100-200mm, can meet all the standard test requirements, control accuracy ± 4mm

Control mode

PLC + 7 inch touch screen control

Action

pneumatic cylinder

Power Supply

AC 220V, 50Hz

Optional accessories

GT-MH01 Test Mass A



GT-MH02 Test Mass B



GT-MH06 Test Mass F

Stroller handle fixed fixture, adjustable direction, cut the left and right position adjustable 400mm range

You can programmatically control the number of tests and the interval

Power off automatically save, can be pre-selected to stop or continue to work
