Programmable Temperature And Humidity Test Chamber 304 stainless steel material, can custom-made according different request.
Brand:
GESTERItem NO.:
GT-C52Order(MOQ):
1Product Detail

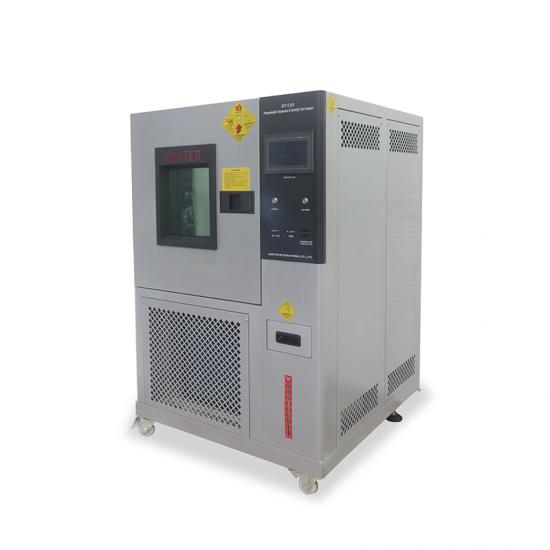

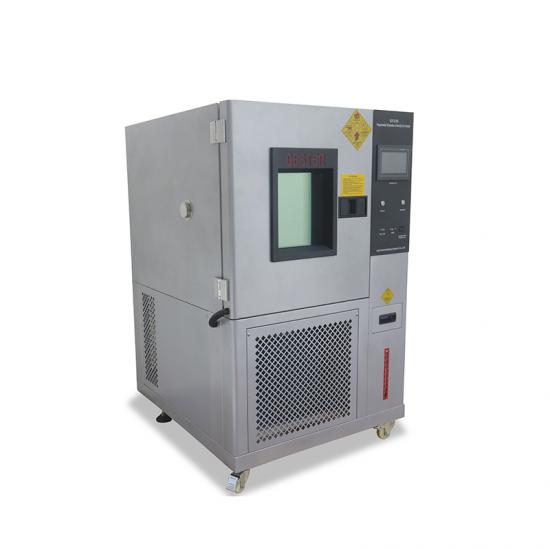

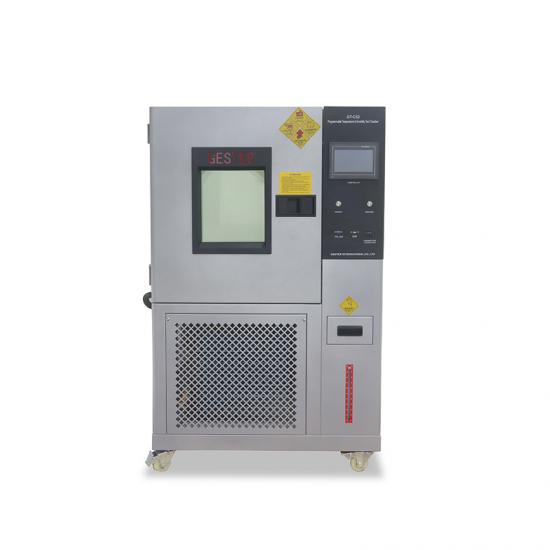

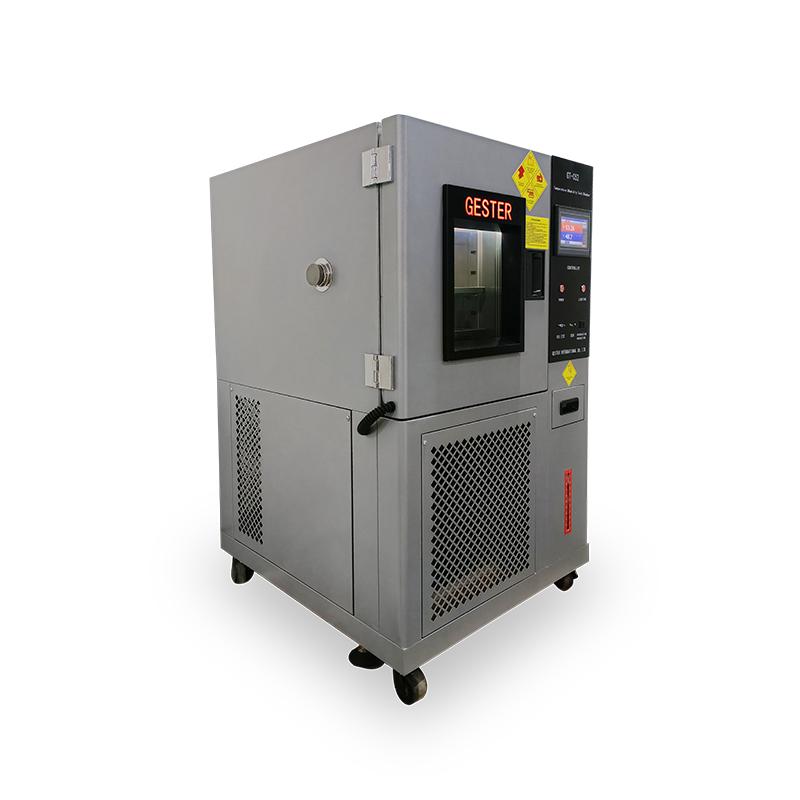

Programmable Temperature And Humidity Test Chamber GT-C52
|
Application of Environmental Test Chamber: Temperature And Humidity Test Chamber for conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity and time can be programmed.
Widely applicable: electronics and telecommunications, automotive, aerospace, new energy, pharmaceuticals, and packaging materials, this system enables the environmental reliability verification of a diverse range of products—including circuit boards, sensors, lithium batteries, and pharmaceuticals (stability testing). |
1. Touch screen, South Korean import,900 temperature controller
2. Control mode: Touchpad
3. Temperature and Humidity Control Chamber Display: LCD display, Korean TEMi880, programmable.
4. System capacity:120 groups program X100 sections, required segmentation sections of each group can be arbitrarily divided and each program can freely link another.
5. Humidity And Temperature Controlled Chamber Cycle setting: each operation procedure can carry out 9999 times or heaps of times cycle and repeated performance, and to the degree, divide further 5 segmentation sections to do part cycle of the extra.
|
Capacity |
80L |
150L |
225L |
408L |
612L |
1000L |
|
Inside dimension WxHxD(cm) |
40x40x50 |
50x50x60 |
75x60x50 |
80x60x85 |
80x85x90 |
100X100X100 |
|
Outside dimension WxHxD(cm) |
91x100x139 |
100X110X149 |
125x120X139 |
130x122x182 |
130x153x190 |
150x167x189 |
|
Temperature range (optional, can be custom-made) |
-20～150℃ |
-40～150℃ |
-60～150℃ |
||
|

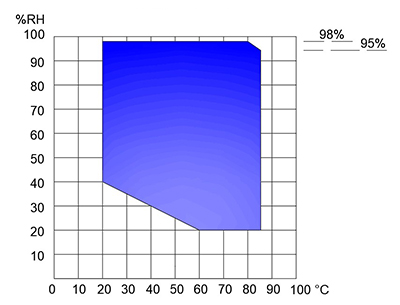

Humidity range |
20%～98%, can be set. |
||||
|
|
|||||
|
Rate of temperature increasing |
Room temperature～150℃ |
About 45 minutes(non-linear no-load, about 3.5℃/minute |
|||
|
Room temperature～-20℃ |
About 45 minutes(non-linear no-load, about 1.2℃/minute) |
||||
|
Machine precision |
Control accuracy (test precision) |
Temperature |
+/-0.5℃ |
||
|
Humidity |
+/-1%RH |
||||
|
Distribution accuracy (uniformity) |
Temperature |
+/-1.0℃ |
|||
|
Humidity |
+/-2%RH |
||||
|
Environment temperature |
5℃-28℃ |
||||
|
Environment relative humidity |
≤85%RH |
||||
|
Power voltage |
220V AC(+/-10%), protect ground wire, ground resistance≤4Ω. |
||||
|
Frequency |
50+/-0.5Hz |
||||
|
Power switch |
Air-break switch(40A, knife switch or outlet is prohibited to use.) |
||||
|
Power |
4.5KW |
||||
|

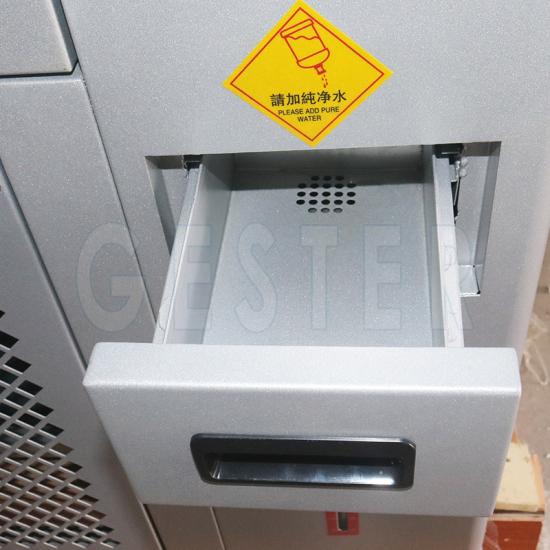

Humidification water |
Resistivity(≥500MΩ) |
||||
|
Requirement of ambient air quality |
Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby. |
||||
|
Power supply |
AC1￠3W 380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage. |
||||
|
Max loading capacity |
8KVA |
||||
|
Max operating current |
30A |
||||
Q1: What is the power requirement for the Temperature Humidity Chamber GT-C52?
A: The standard power supply is AC 1Φ3W 380V 50/60Hz, with a maximum loading capacity of 8KVA.

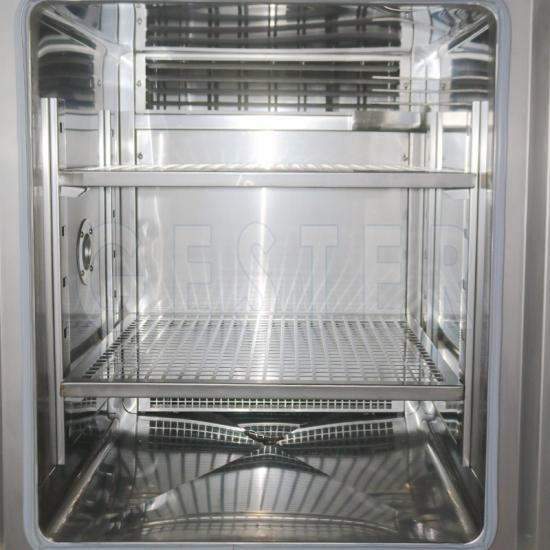

Q2: Can the shelf height be adjusted inside the chamber?
A: Yes, the specimen racks feature freely adjustable height, allowing flexible arrangement of test samples.
Q3: Is the chamber suitable for long-term continuous operation?
A: Yes, the GT-C52 is built for durability and reliability, making it suitable for extended testing cycles under controlled conditions.
Q4: Does GESTER provide technical support and calibration services?
A: Yes, we offer comprehensive pre-sales consultation, installation guidance, operator training, and ongoing technical support. Calibration services are available upon request.
Q5: How does the customization process work?
A: Our customization process begins with a detailed consultation to understand your unique testing requirements. Our engineering team then designs a tailored solution, which we present for your review and approval. Once finalized, we manufacture the custom chamber to your exact specifications, ensuring it meets all performance and quality standards. Want to know more? Contact us!
