BIFMA X5.1 Lounger Stability Testing Machine GT-LB06B

This Chair Testing Machine is suitable for testing seat, office chair, and lounger stability test.

Brand:
GESTER
Item NO.:
GT-LB06B
Order(MOQ):
1
Shipping Port:
Xiamen Port
Lead Time：
7-30 days

Inquire now

Product Detail

BIFMA X5.1 Lounger Stability Testing Machine GT-LB06B

Product Introduction

Application:

This Chair Testing Machine is suitable for testing seat, office chair, and lounger stability test.

Standards:

ANSI/BIFMA X5.1 - 2017 Section 11.4, EN 1335-3-2009 Section 7.1.2, 7.1.3,

EN1022-17 Section6.3.1,6.3.3, 6.3.4, 6.3.5, 6.3.6, 7.3.1, 7.3.2, EN 16139 Section 4.3.2

Lounger Stability Testing equipment Principle:

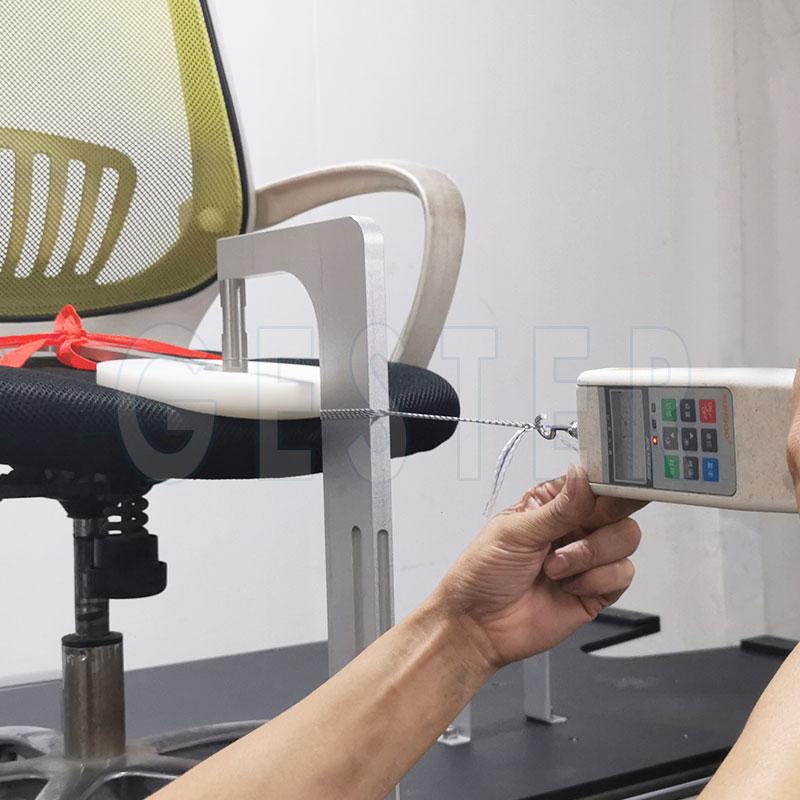

The sample is placed on the test table, the front foot is blocked with the block. Apply a certain load on the seat surface, apply 20 N of force to the loading point. Check whether the specimen is tilted forward to assess the forward stability of the specimen; also can test the sideways stability and rearward stability.

Key Specifications

Model	GT-LB06B
Test load	600N (135 lbf.) (Accumulated weight)
Loading point number	3 point
Loading point	Seat surface center, 60mm from front edge
Weights basket	Manual controlled lifting

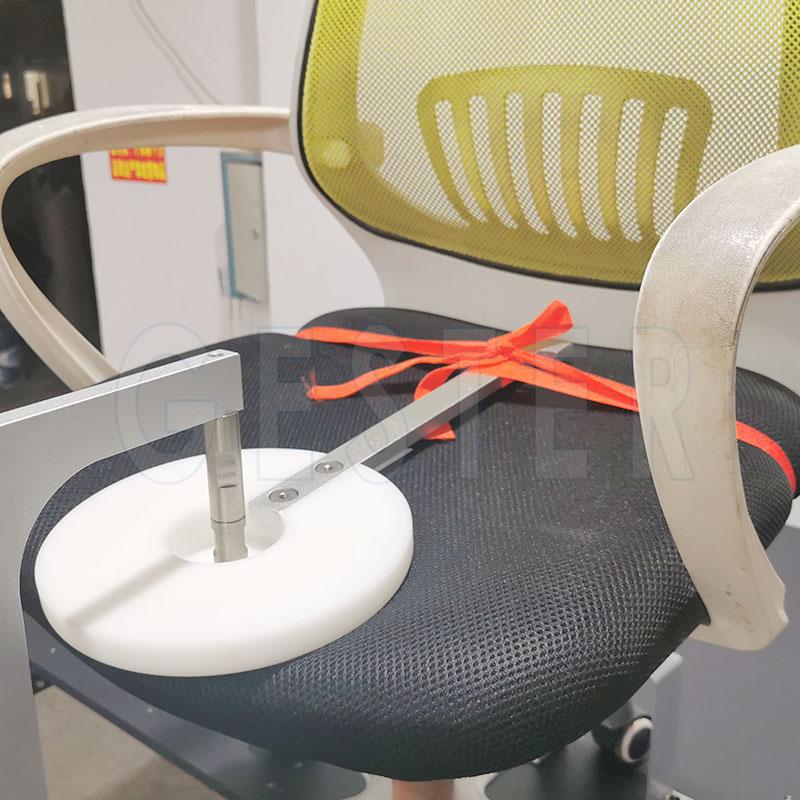

Seat surface load pad	Diameter: 200mm, camber surface: R300mm
Loading rod	Diameter	19mm
	End	A type: Spherical SR19mm
		B type: 45°Taper
Dimensions	2405x1070x1557mm
Weights	≈700Kg
Standard Accessories	Weights basket 3 pc Seat surface load pad 3 pc 600N Load weights 3 Set Weights holding device 3 pc
Option Accessories	FB-200N IMADA push pull scale 500N Load weights for EN 1335-3-2009 Section 7.1.3

Applications Industry

All kinds of chair products can be tested on the Lounger Stability Testing Machine
