BS5852 Flammability Tester GT-C93

BS 5852 flammability Tester is widely used in Europe and American upholstered furniture’s flame retardant property test.
  • Brand:

    GESTER
  • Item NO.:

    GT-C93
  • Order(MOQ):

    1
  • Lead Time:

    30 Days
  • Product Detail

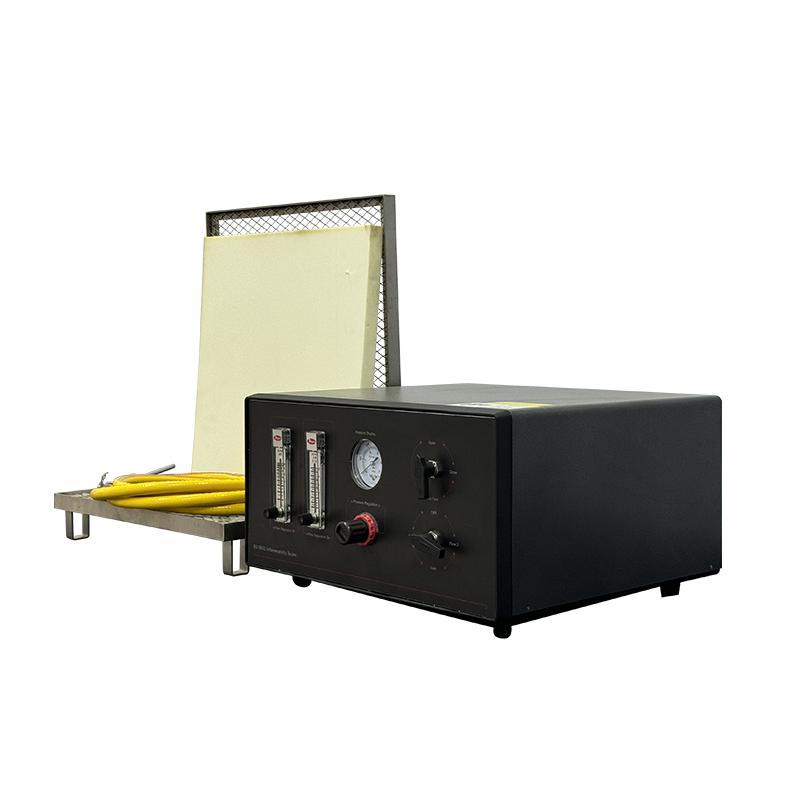

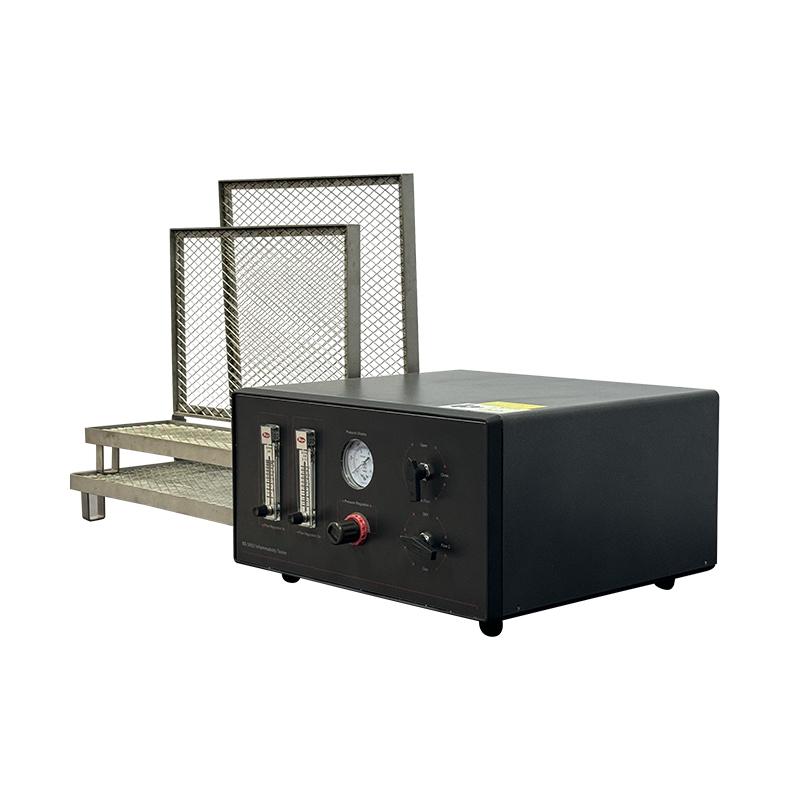

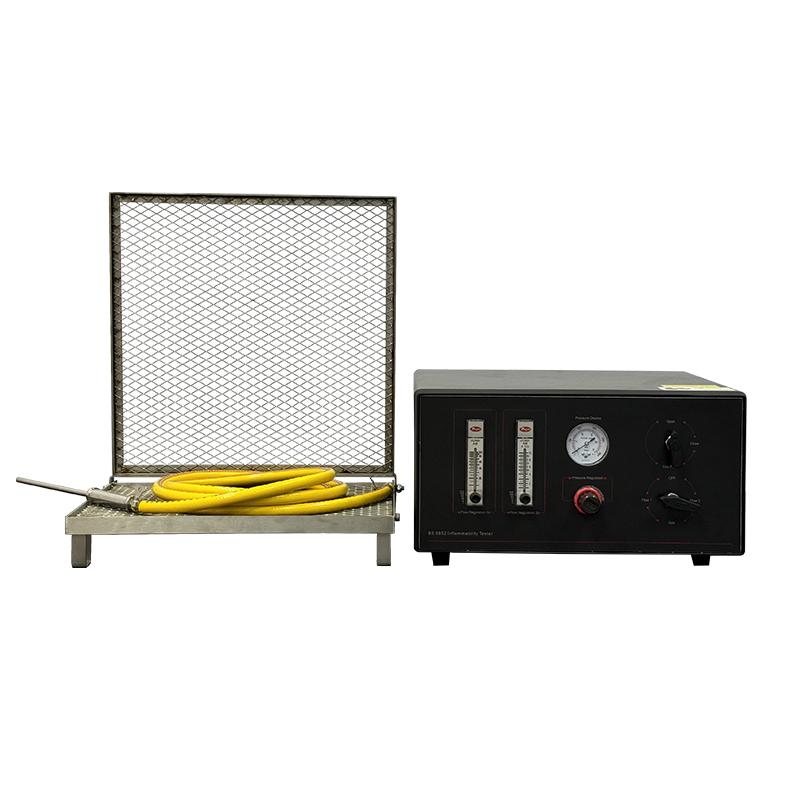

BS5852 Flammability Tester GT-C93



Product Introduction

Application:

BS 5852 flammability Tester is widely used in Europe and American upholstered furniture’s flame retardant property test, it’s used in concert with 0-7 fire source, standard fabric and sponge,etc.To test the combustion performance.

Standards:
UK Regulation, BS 5852, CFR 164


BS 5852 Combustion Test Equipment Feature

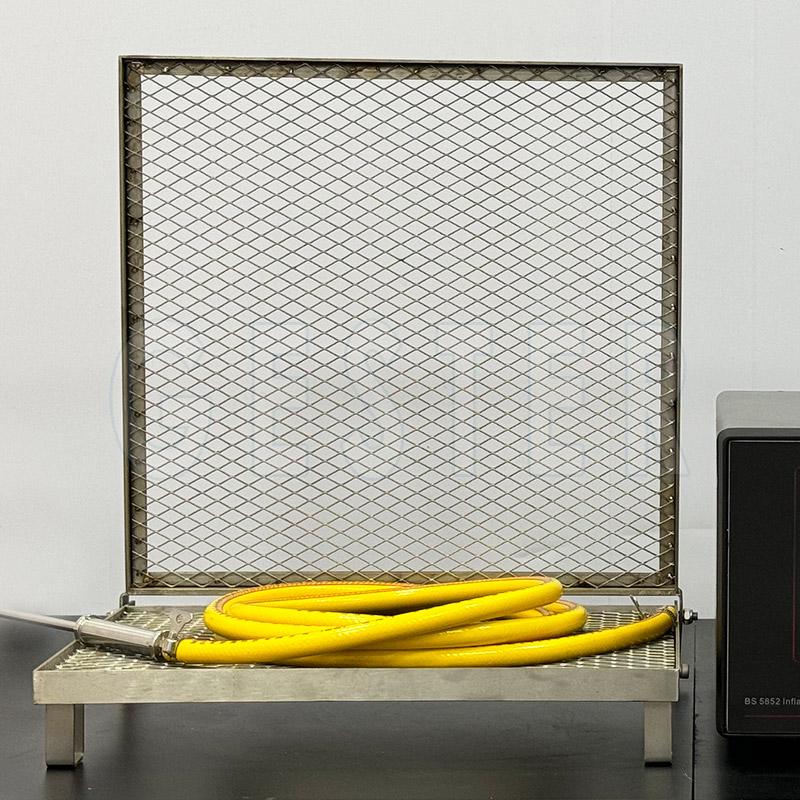

  1. Full stainless steel testing jig.
  2. Size: 450X300X150mm and 450X450X300mm.
  3. Heat-resisting screen mesh structure.
  4. Stainless steel ignition.
  5. Stainless steel test Template



GESTER Flammability Tester Key Specification


Model

GT-C93

Test mode

Automatic

Test flow

(45±2)m1/min

Air pressure

2.8kpa

The length of air pipe

Length 2.5~3mm, Inner diameter 7±1mm

Timer

0~999s

Power supply

AC 220V 50/60HZ

Dimensions

570x310x440mm (L x W x H)

Weight

20 kg
