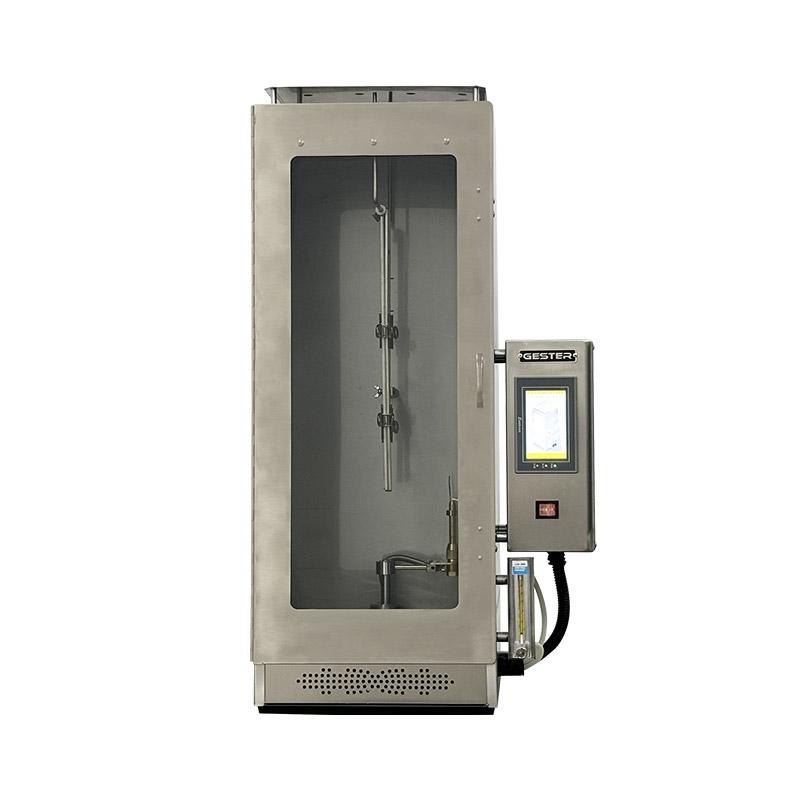

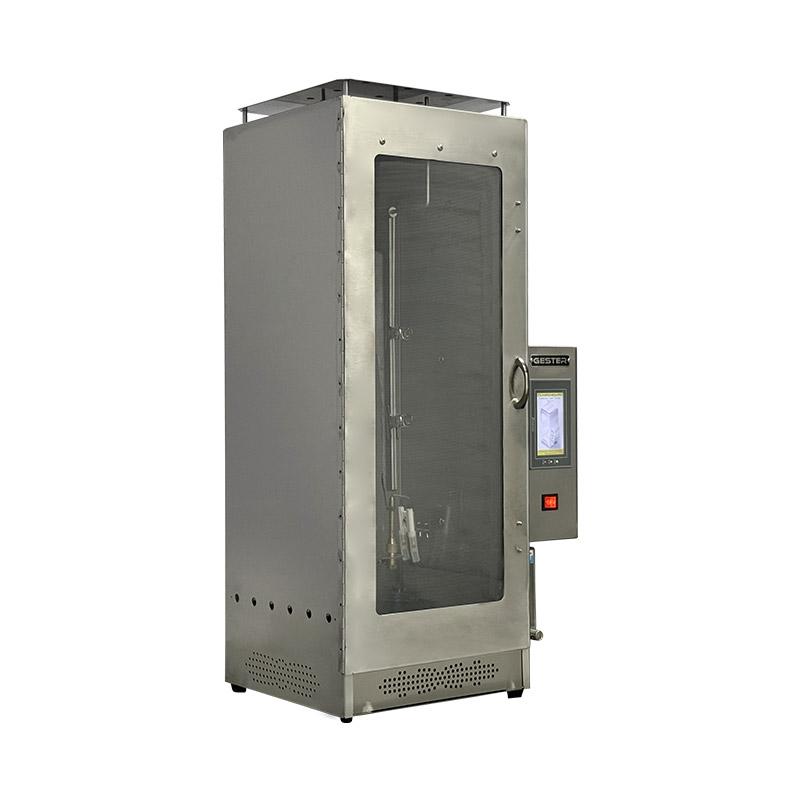

Camping Tent Flammability Tester GT-C202

Product Introduction

Application:

This Flammability Testing Equipment is suitable for measuring the flame retardant performance of the walls and ceilings of tent products. Determine its continued burning, smoldering and carbonization tendency, damage length, smoldering and after burning time.

Standards:

CPAI-84

Camping Tent Flammability Tester Features

Install the sample in the sample holder and hang it vertically in the test instrument. After burning the sample under the required height for a certain period of time, record the after burning, smoldering time and damage length of the sample to evaluate its combustion performance.

Tent Flame Retardant Tester Key Specifications

Model	GT-C202
Test Chamber Size	(330±25)mm×(330±25)mm×(760±25)mm
Test Chamber Vent	Diameter Φ13mm, 16 at the top, 6 at the bottom on both sides
Specimen holder	U shape,3 pieces. Inner frame: 360mmx50mm, outer clip (80±3)mm×(420±3)mm×3.2mm, middle clamp thickness 1.6mm
Specimen Fixture Hanging Rod	Diameter:6mm
Sample Dimensions	300x70mm
Sample Quantity	The long side is parallel to the warp direction of the fabric, 8 pieces each in the weft direction
Distance Between Sample and Burner	20mm

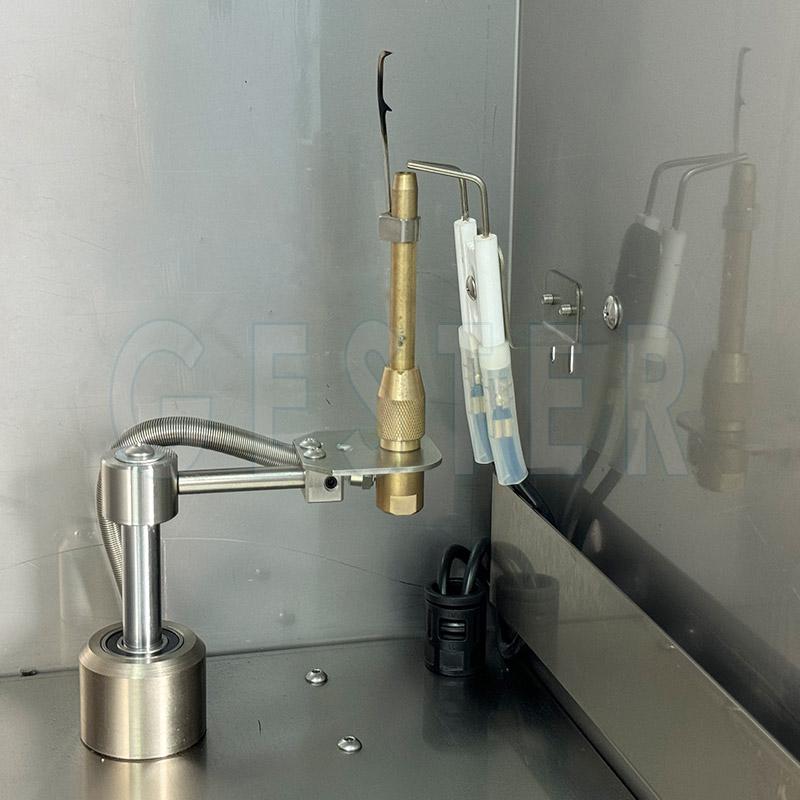

Fire Mouth	Inner diameter 5mm, length 75±6mm
Fire Mouth Angle	90°
Burning Flame Height	19mm/38±3mm
Flame Burning Time	12±0.2s
Gas Pressure	2.5±0.25psi
Gas	Industrial propane gas or butane

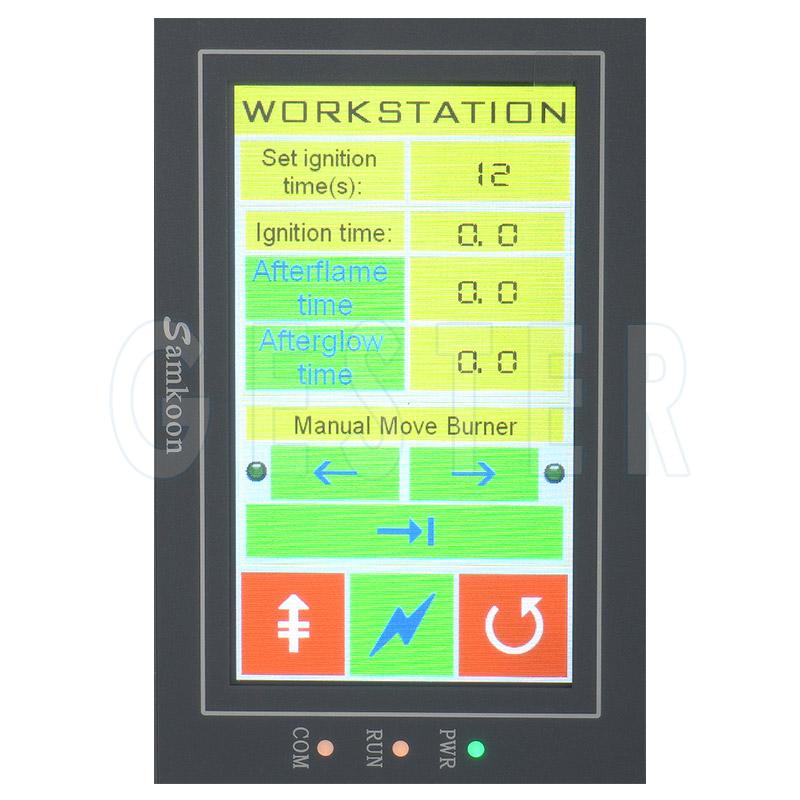

Control Mode	Touch Screen Control
Hammer	50g/100g/200g/350g
Dimensions	Test Chamber:38x36x90cm; Control Chamber:19x24x18cm
Weight	Approx 35Kg
Power Supply	1∮ AC 220V 50Hz
