Dynamic Footwear Water Resistance Tester GT-KA02-2

Dynamic Footwear Water Resistance Tester is designed to determine the dynamic water resistance of all types of shoes.

  • Brand:

    GESTER
  • Item NO.:

    GT-KA02-2
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

Dynamic Footwear Water Resistance Tester GT-KA02-2



Product Introduction

Application:

Dynamic Footwear Water Resistance Tester is designed to determine the dynamic water resistance of all types of shoes.

Standards:
SATRA TM 230, ISO20344-2021 section 5.19

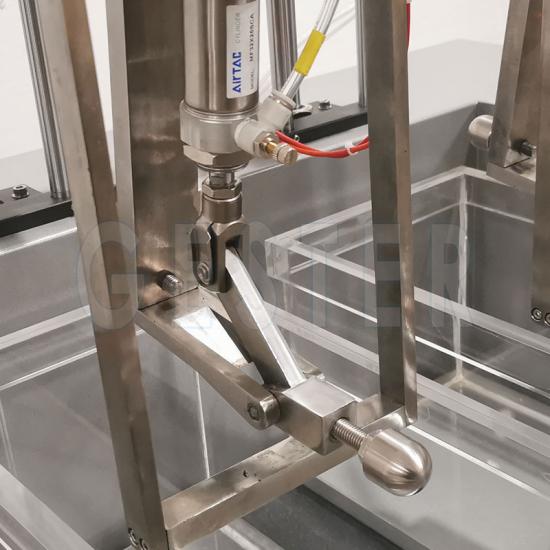

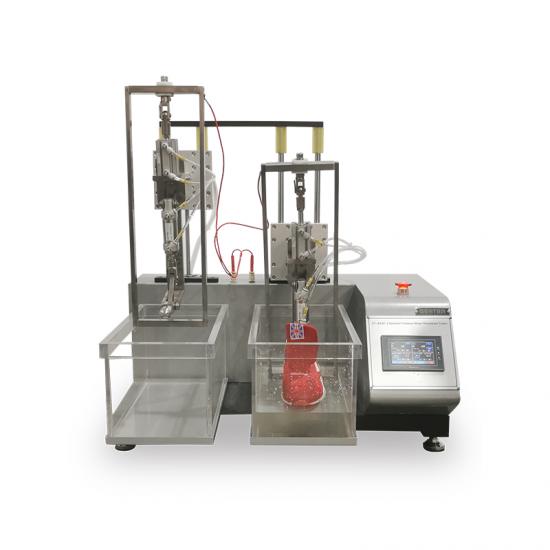

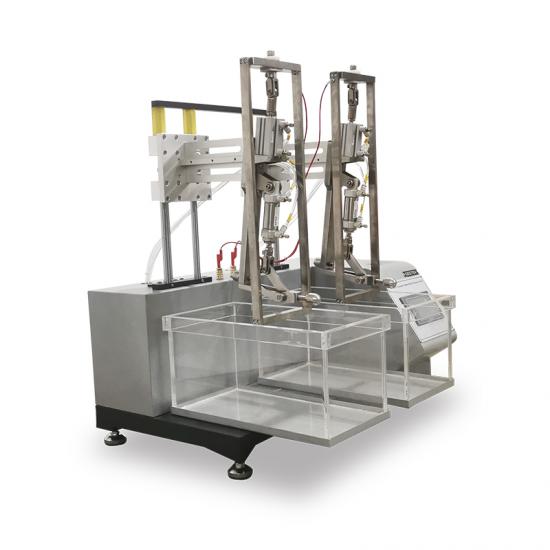

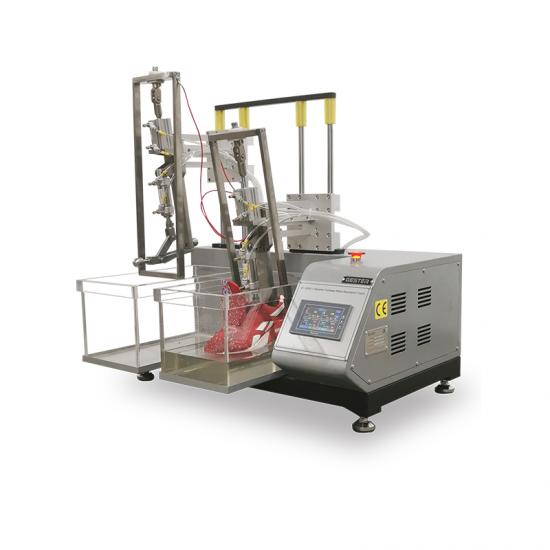

Product Image
Dynamic Footwear Water Resistance Testing Equipment

Principle

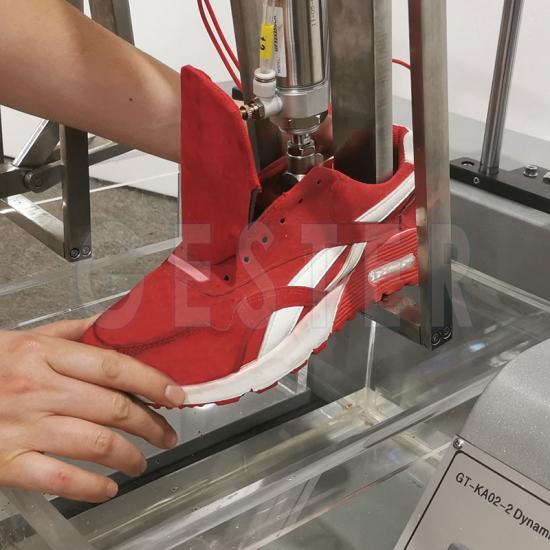

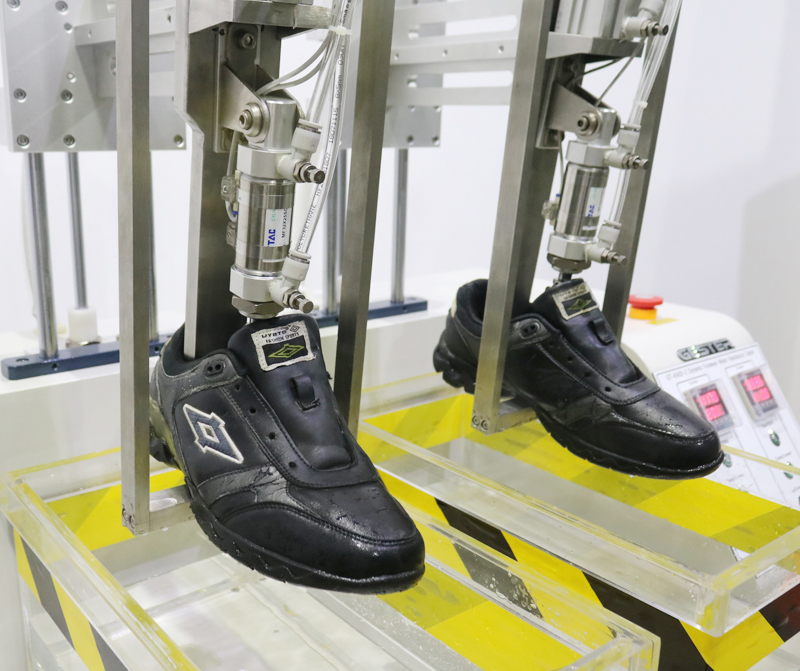

The water tank is filled with a specified volume of colored water. A specimen is put on the artificial foot and flexed at a given angle and speed, and inspected at intervals for water penetration.


Key Specifications

Model

GT-KA02-2

Control Mode

PLC Touch screen control

Test Quantity

2 Sets

Flexing Angle

25±2°

Flexing Speed

60±6cpm

Counter

0999,999

DimensionW×D×H

85×70×80cm

Weight

Approx 110kg

Power

1∮, AC220V,50/60Hz,3A (Specified by user)

Standards

SATRA TM 230,

ISO20344-2020 section 5.19

Standard Accessories

Water sensor   2pcs


Application Industry
All the shoes blow can be tested on Dynamic Footwear Water Resistance Tester

Dynamic Water Resistance Test machine
