Water Vapor Permeability Tester, Waterproof Tester, Waterproof testing machine for vamp and upper shoe materials ( including surface and lining )
Brand:
GESTERItem NO.:
GT-KC21Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
30 daysProduct Detail
Water Vapor Permeability Tester GT-KC21
|
Application: GT-KC21 Water Vapour Permeability Tester; Under the standard stipulated (23 ± 2)°C and the (50 ± 5)% RH environment, to test water vapor permeability for vamp and upper shoe materials (including surface and lining). |
Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
With vacuum glass observation window, more effecitive to observe the testing situation.
Temperation control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
Water Vapor Permeability Tester Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture groips.
The flexing system has separate controller with function of power off memory and automatical stop when test done.
All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.
|

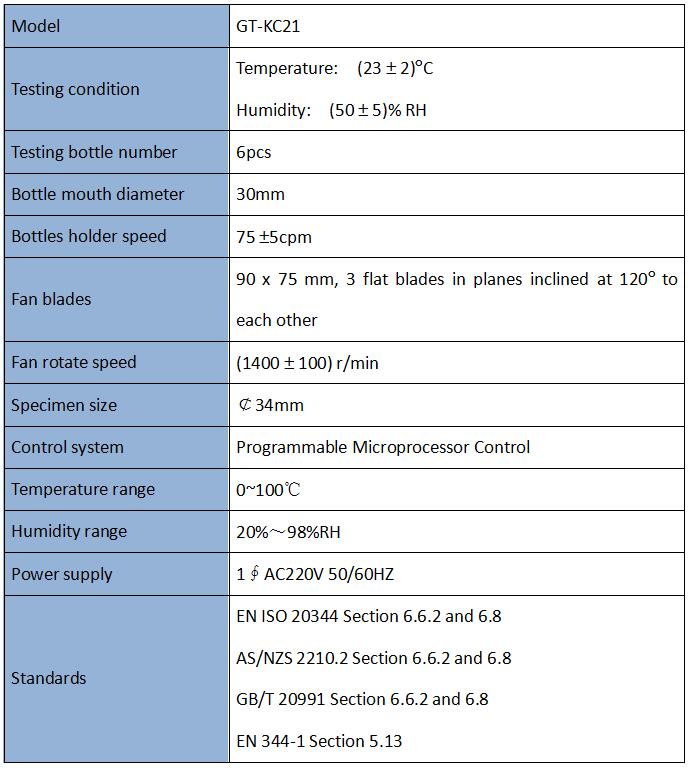

Model |
GT-KC21 |
|
Testing condition |
Temperature: (23 ± 2)°C Humidity: (50 ± 5)% RH |
|
Testing bottle number |
6pcs |
|
Bottle mouth diameter |
30mm |
|
Bottles holder speed |
75 ±5cpm |
|
Fan blades |
90 x 75 mm, 3 flat blades in planes inclined at 120° to each other |
|
Fan rotate speed |
(1400 ± 100) r/min |
|
Specimen size |
￠34mm |
|
Timer |
0~99,999,999min |
|
Control system |
Touch Screen Programmable Microprocessor Control |
|
Temperature Range |
0~100℃ |
|
Temperature Accuracy |
+/-0.5℃ |
|
Humidity Range |
20%～98%RH |
|
Humidity Accuracy |
+/-1%RH |
|
Inside Chamber Capacity |
150L |
|
Chamber Material |
SUS # 304 Stainless Steel and Painted |
|
Power supply |
1∮AC220V 50/60HZ |
|
Dimension(W×D×H) |
110X170X180 cm |
|
Weight (Approx) |
400 kg |
|
Standards |
EN ISO 20344 Section 6.6.2 and 6.8, AS/NZS 2210.2 Section 6.6.2 and 6.8 GB/T 20991 Section 6.6.2 and 6.8, EN 344-1 Section 5.13，EN 14268 |
Accessories:
Standard accessories
6pcs
Testing Bottles
1bottle
Silica Gel
1pc
Power Line
Option accessories
GT-KD20 Pneumatic Sample Cutting Machine
(Cutter: 70 ± 5 x 45 ± 5 mm,and ￠34mm)
