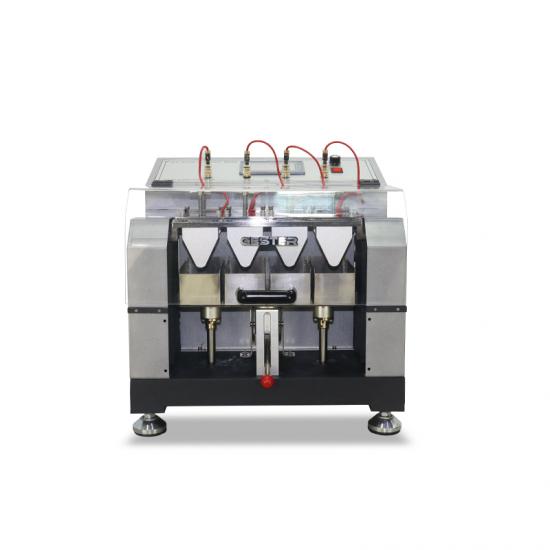

Maeser Water Penetration Tester GT-KC05
  • Brand:

    GESTER
  • Item No.:

    GT-KC05
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    ISO 5423 section 5.2, EN ISO 20344 Section 6.5.2,
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Payment:

    T/T, L/C
contact now

Maeser Water Penetration Tester GT-KC05


Product Introduction

Application:

Maeser Water Penetration Tester is used to determine the resistance of leather, artical leather, fabric and so on material to water penetration on flexing. The method is mainly applicable to footwear upper outer materials but can be used with any flexible sheet material.


Standards:

ISO 5423 section 5.2, EN ISO 20344 Section 6.5.2, AS/NZS 2210.2 Section 6.5.2, GB/T 20991 Section 6.5.2, GB20265 section 4.1, EN ISO 22288, SATRA TM25


Dimensions

maeser water penetration tester

Principle

A square test specimen is folded and secured in two V-shaped clamps which have closed ends so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. The test is stopped at the first sign of water penetration through the test specimen.


Key Specifications



Model

GT-KC05-1

GT-KC05-2

GT-KC05-3

Position

4

Control method

Touch-screen control, 0~999,999

Clamps

V-shaped

Clamps tip radius

4mm

7.5±0.5mm

Moving fixture flexing displacement

25.4±1.3 mm

Non required

Moving fixture flexing angle

Non required

30 ± 1 °

32 ± 1 °

Test speed

90±5 r/min

Shutdown method

Electrode induction

Sample size

101.6 x 101.6 mm

114  x 114  mm

Power supply

1∮AC 220V 50/60HZ

Dimensions( L x W x H )

49x45 x45cm

Weight

55 kg

Standards

ASTM D2099

SATRA TM34 Type 1

SATR TM34 Type 2, ISO 5403-2

Standard Accessories

Stainless steel ball    550g

Electrode induction line   4pcs

Power line   1pcs

Option Accessories

GT-C48 Pneumatic Sample Press  (Cutter: 101.6x101.6 mm and114 x114 mm)

Electronic balance (300g / 0.01g)





Application Industry
All kinds of materials can be tested on the Maeser Water Penetration Tester

Maeser Water Penetration Tester
