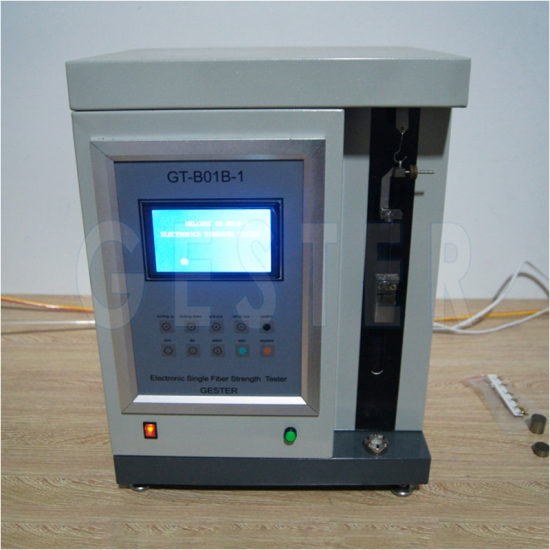

Electronic Single Fiber Strength Tester GT-B01

Electronic Single Fiber Strength Tester is used to test tensile strength of various chemical fiber, cotton yarn, wool, silk, linen and glass fiber.

Brand:
GESTER
Item NO.:
GT-B01-2
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
China Port
Lead Time：
10-30 Days

Inquire now

Product Detail

Electronic Single Fiber Strength Tester GT-B01-2

Product Introduction

Application:

It is used to determine performance indicators such as breaking tenacity, breaking elongation, load at specified elongation, elongation at specified load and creep of various single fibers, metal wires, hairs, carbon fibers and other materials.

Standards:

GB/T9997, GB/T 14337, GB/T13835.5, ISO5079, 11566, ASTM D3822, BS4029

Feature:

Color touch screen for display and control, with Chinese and English interfaces and menu operation mode.
Delete any measured data; export test results to Excel documents.
Software analysis functions: breaking point, breakaway point, stress point, yield point, initial modulus, elastic deformation, plastic deformation, etc.
Safety protection measures: limit protection, overload protection, negative force value protection, over-current protection, over-voltage protection, etc.
Force calibration: digital code calibration (authorized code).

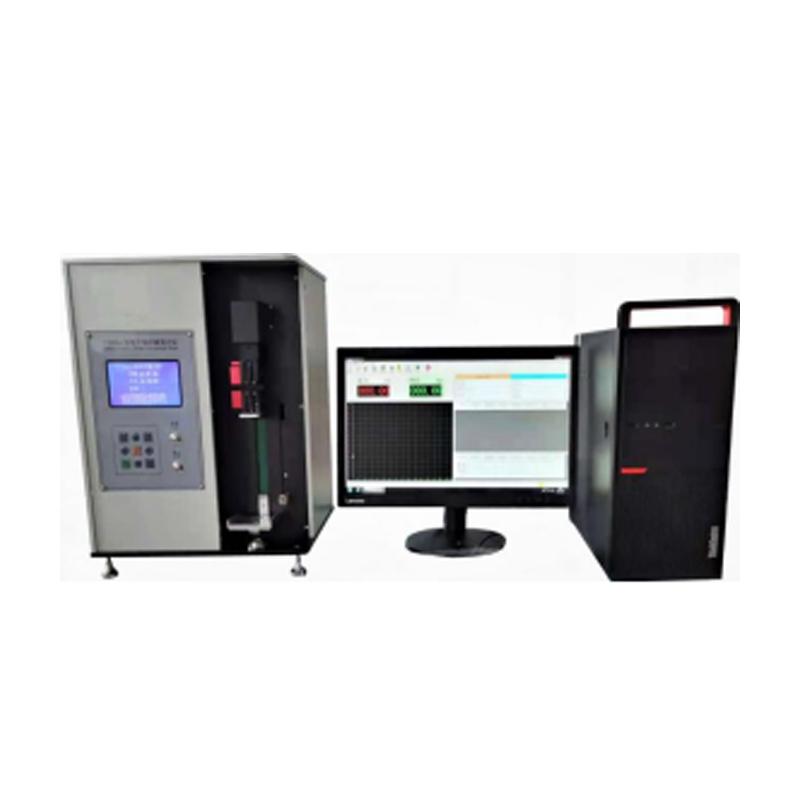

Unique bidirectional control technology between main unit and computer for convenient and rapid testing, delivering diversified test results (data reports, curves, graphs and statements).

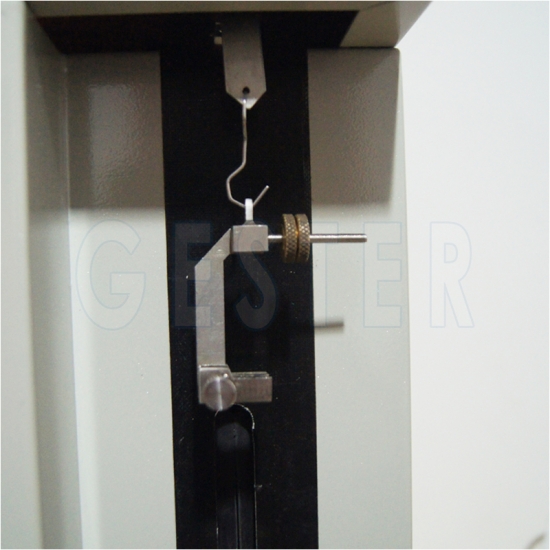

Pneumatic clamping for fast and convenient operation.

Key Specifications

Model	GT-B01-2
Force range	500 cN
Minimum division value	0.01 cN
Load resolution	1/60000
Force sensor accuracy	≤±0.05% F.S.
Load accuracy	≤±0.5% at any point within 2%～100% of full scale
Tensile speed	adjustable speed 2～200 mm/min (digital setting); constant speed 2～200 mm/min (digital setting)
Elongation resolution	0.01 mm
Maximum elongation	200 mm
Gauge length	5～30 mm, digital setting & automatic positioning
Data storage capacity	≥2000 tests (storage capacity of tester)
Power supply	AC220V±10%, 50Hz
Dimensions	400×300×550mm（L×W×H）
Weights	Approx.45kg
