Yarn Crimp Tester; Determining the yarn length absorbed knits; crimp of yarns; Absorption Control of yarn evenness.
Brand:
GESTERItem NO.:
GT-C180Order(MOQ):
1Payment:
T/T, L/CShipping Port:
China PortLead Time:
10-30 DaysProduct Detail

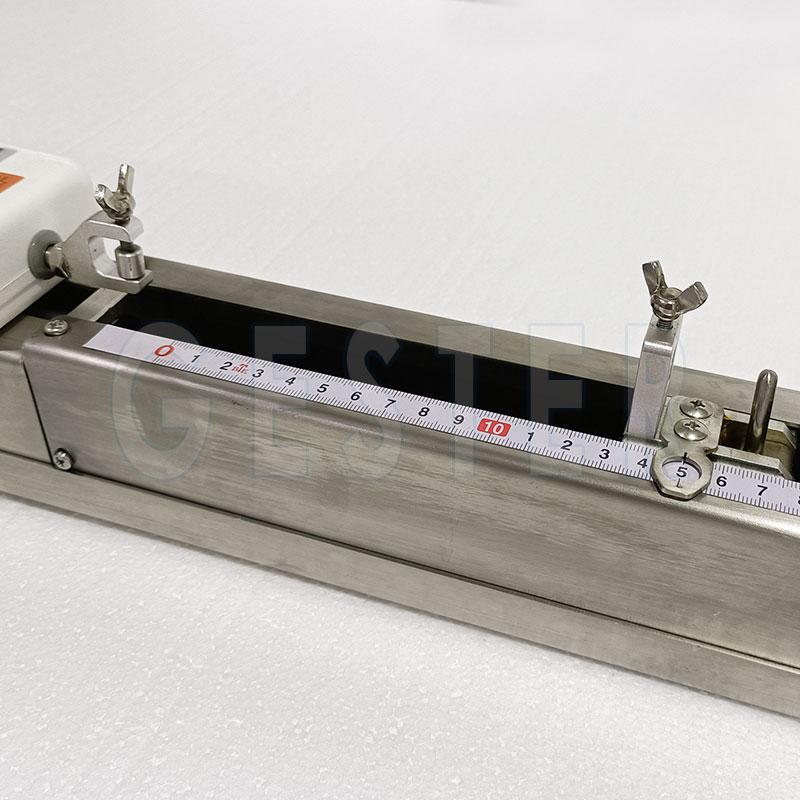

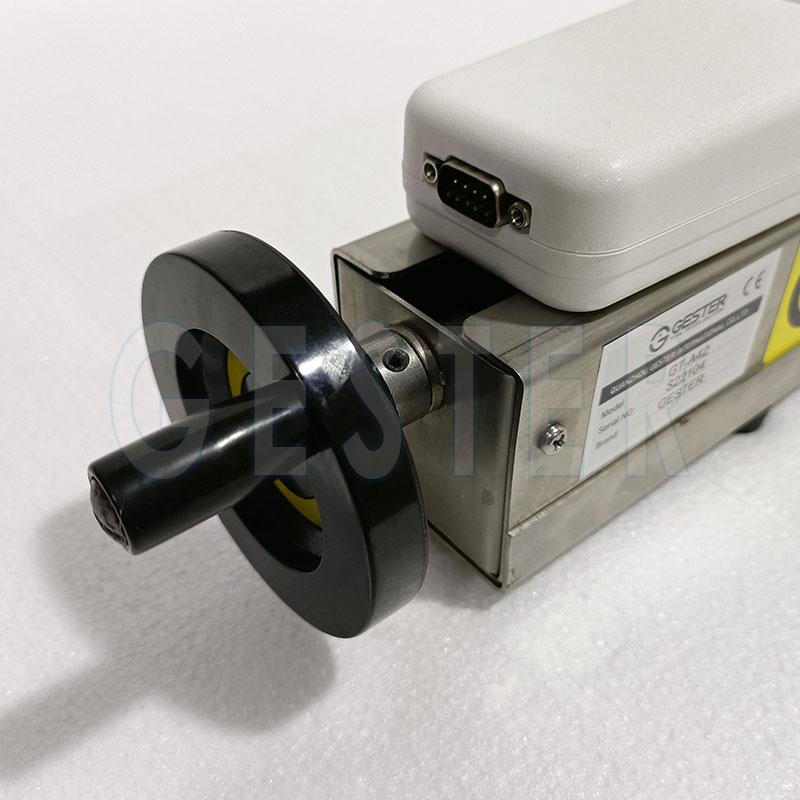

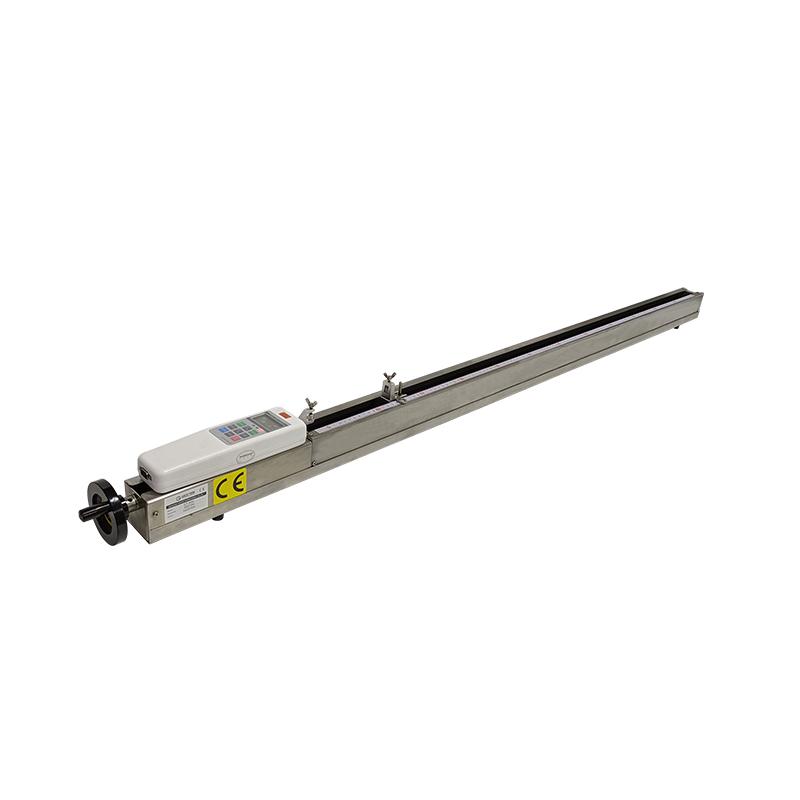

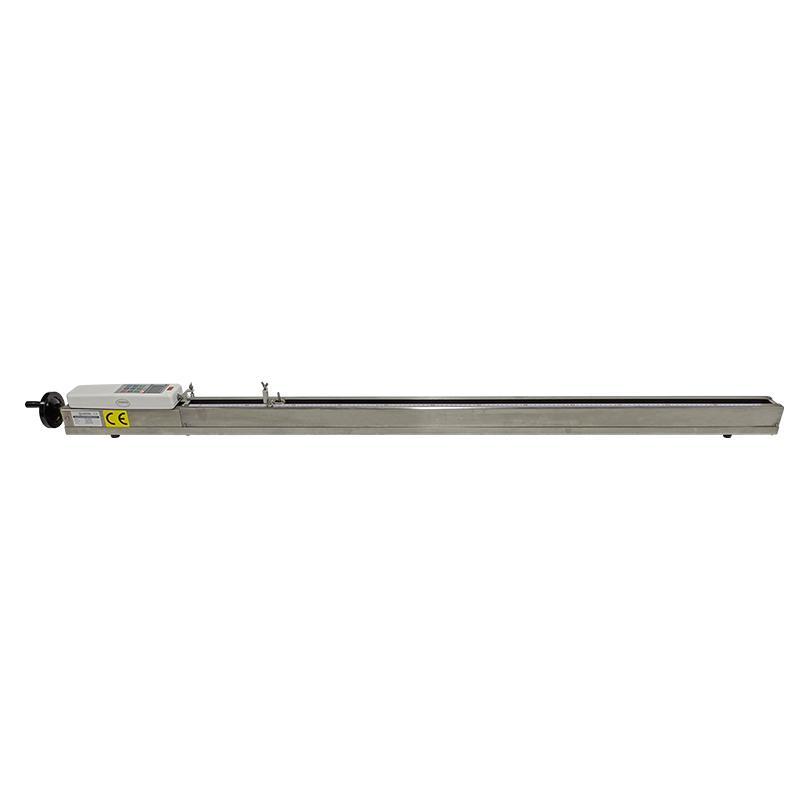

Yarn Crimp Tester GT-C180
Application:
Yarn Crimp Tester; Determining the yarn length absorbed knits; crimp of yarns; Absorption Control of yarn evenness. Standards: EN14970, ASTM D 3883, ISO7211-3, AFNOR G 07-104, AFNOR G 07-101, NF G07-104 |
1.Determining the yarn length absorbed knits; crimp of yarns; Absorption Control of yarn evenness.
2.This simple, sturdy, precise and accurate device is designed to determine the crimp in knitted fabrics and the shrinkage of warp and weft yarn and picks in woven fabric. Crimps of up to 140cm can be measured.3.In addition it is used also to measure with absolute accuracy the length of a yarn section, in order to determine, after weighing, the count.
Model |
GT-C180 |
Capacity |
5N |
Stroke |
1200mm |
Accuracy |
1mm |
Weight |
≈18 kg |
Dimensions |
163x10x20cm |
