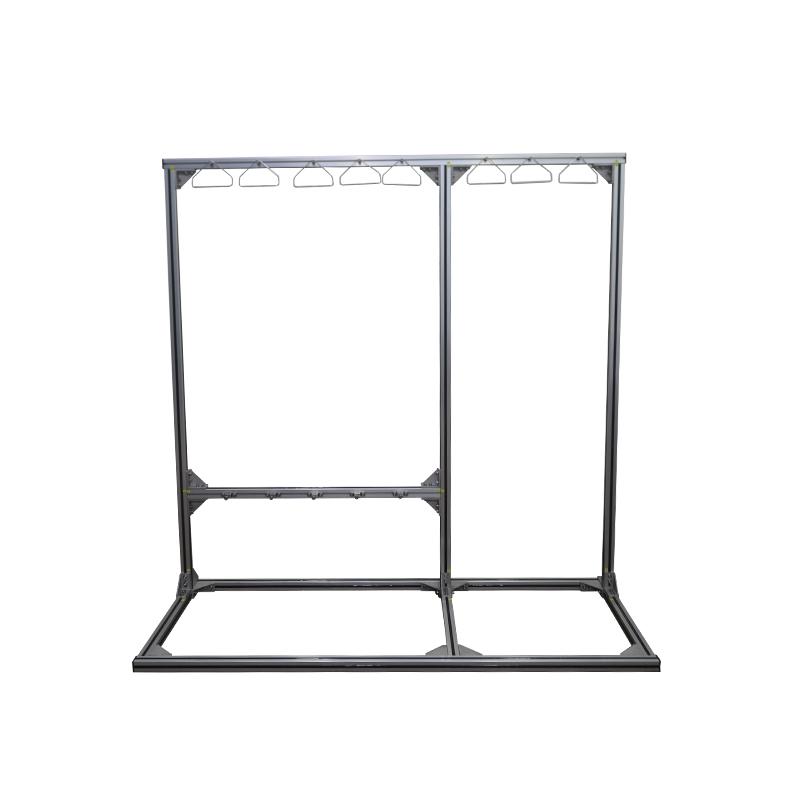

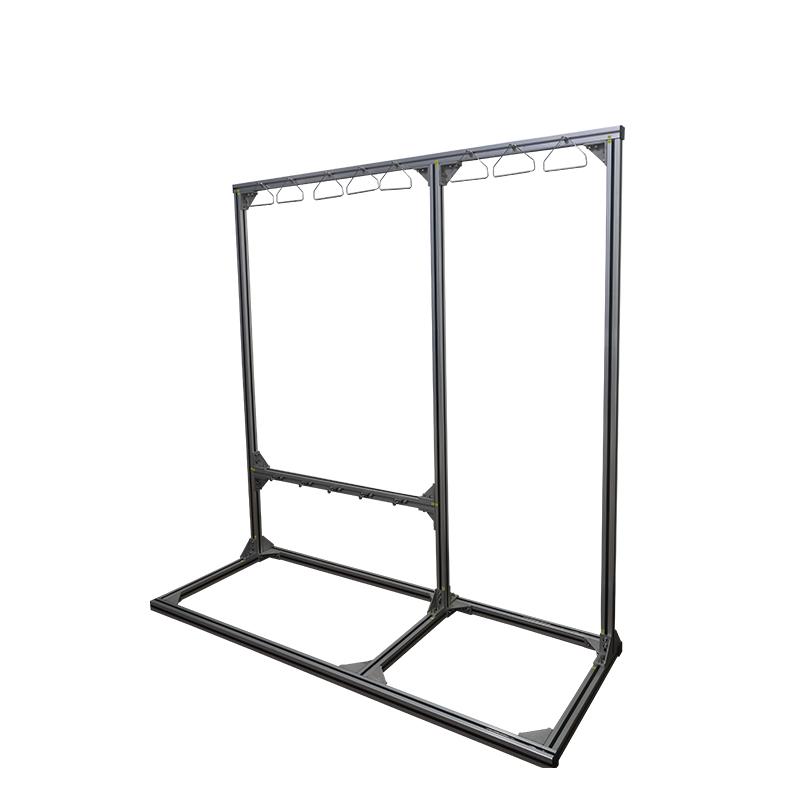

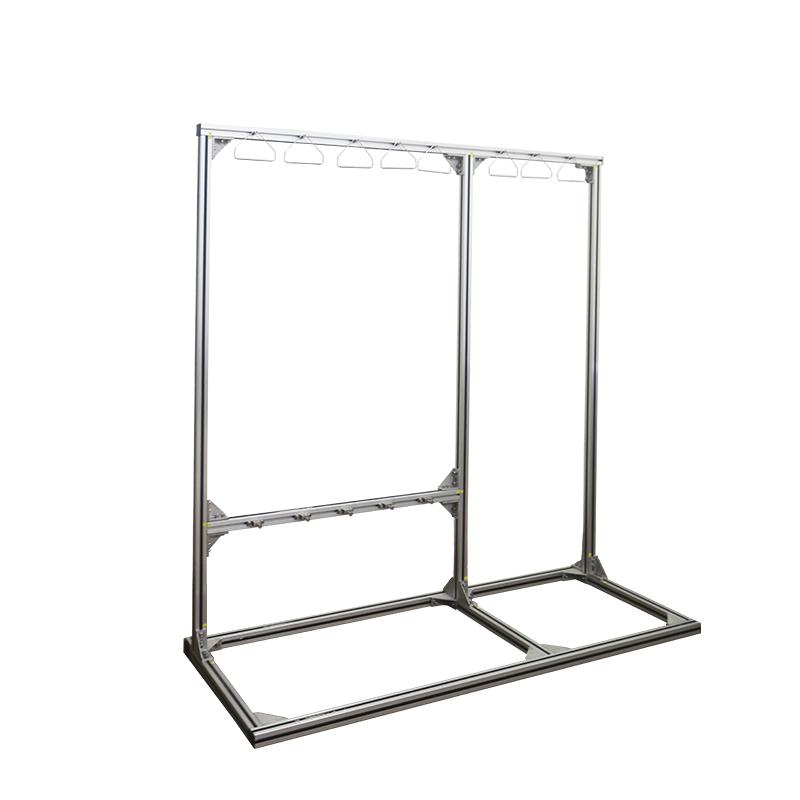

Fabric Stretch & Recovery Tester GT-C182
Application:
This Stretch & Recovery Tester was designed according to ASTM D2594 mainly used for evaluation of the amount of fabric stretch, fabric growth, and fabric recovery of knitted fabrics intended for applications requiring low-power stretch properties after a specified tension an extension.
Standards:
ASTM D2594

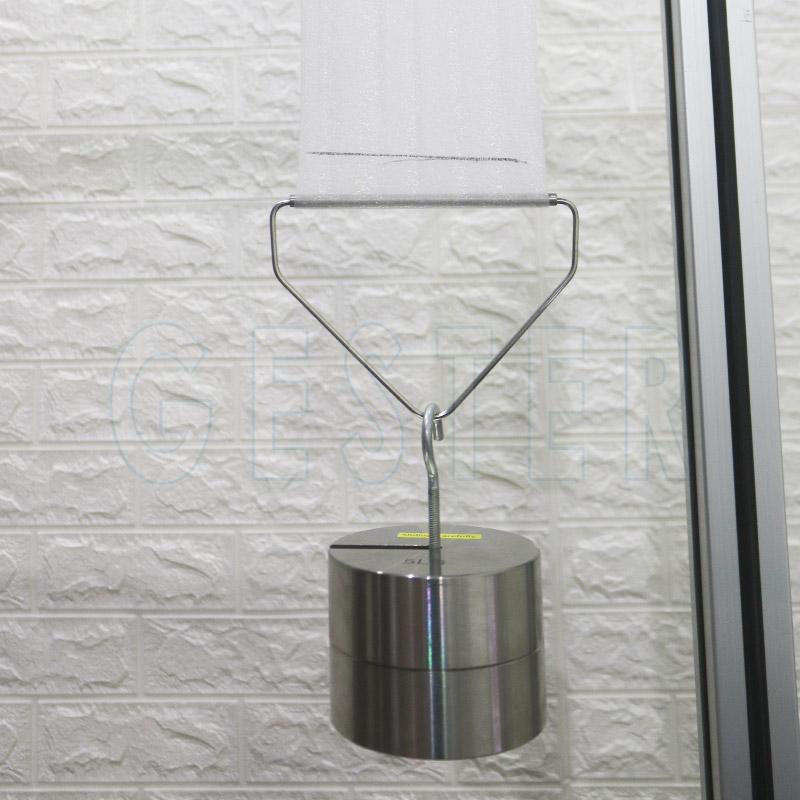

Fixed Load Method:Clamp the specimen in the upper clamp, hang the specified weights under it, after 4 cycles loading ,then test its stretch , growth, and recovery performance.

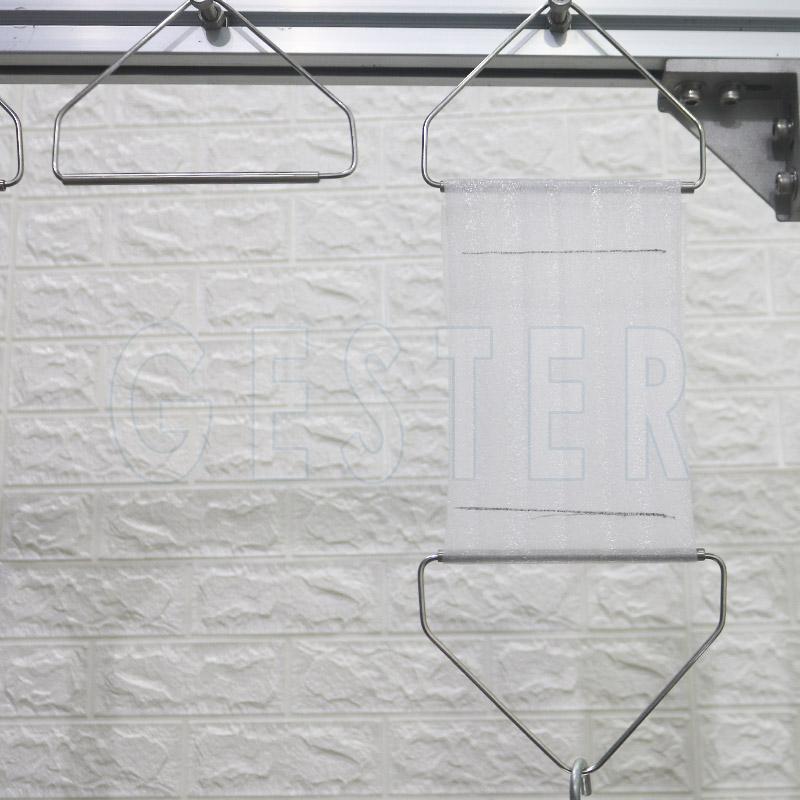

Fixed Extension Method:Clamp the specimens in the upper and lower clamp separately, move lower clamp to stretch the specimen until specified extension, keep for certain time, then test its growth, and recovery performance.
Feature
Model |
GT-C182 |
Fix-load Work Pos. |
3 |
Fix-stretch Work Pos. |
5 |
Specimen Size |
50x560mm |
Clamp Jaw Width |
140mm |
Load |
5LB/10LB (±1%) |
Dimensions |
1300*300*1500mm |
Weight |
50kg |
Accessories
Standard accessories |
2pc |
5LB Load |
1pc |
Steel Ruler |
