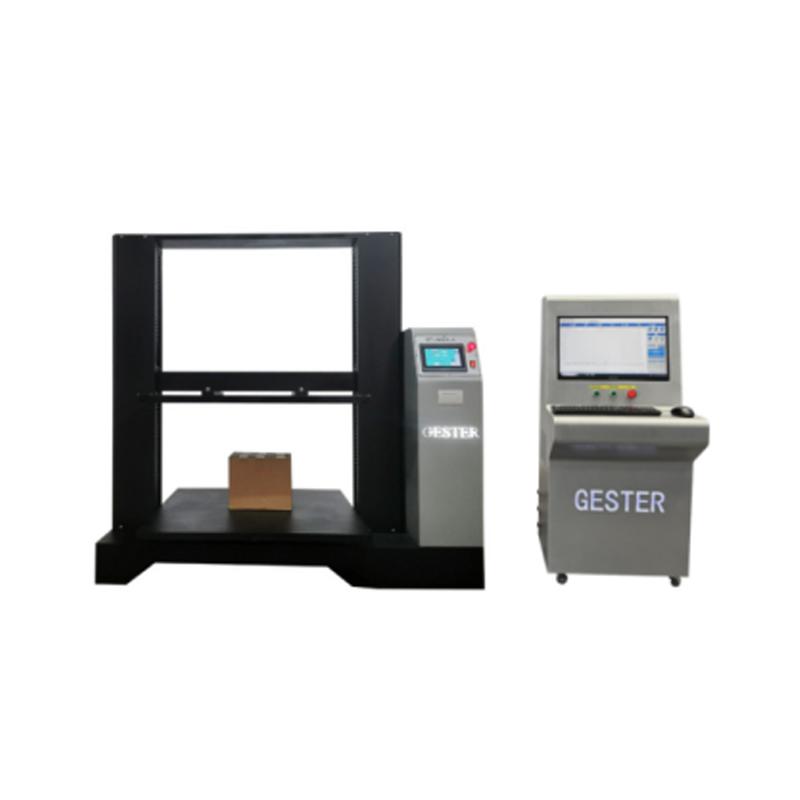

Four-column Carton Compression Tester (computer control) GT-N02D

This Carton Compression Tester uses high-precision force sensor to test the resistance value of pressure and display it directly. The most direct equipment for testing the pressure resistance of containers made of cardboard or other materials.
  • Brand:

    GESTER
  • Item NO.:

    GT-N02D
  • Order(MOQ):

    1
  • Payment:

    TT or L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30days
  • Product Detail

Four-column Carton Compression Tester (computer control) GT-N02D




Product Introduction

Application:

This computer control Carton Compression Tester uses high-precision force sensor to test the resistance value of pressure and display it directly. The most direct equipment for testing the pressure resistance of containers made of cardboard or other materials. It is used to determine the cargo capacity and stacking height of the carton. It is suitable for the compression and holding test of various packages and cartons. The test results can be used as an important reference for the stacking height of the finished packaging box or an important basis for packaging box designing.


box compression test Standards:

ISO2872, ISO2874, ASTM D642 , TAPPI T804



Feature
  • Power system: servo motor + servo drive + worm gear reducer + ball screw
  • Box Compression Strength Tester Speed range: 0.001-500mm/min (adjustable)
  • After the test, it will automatically store and return to the origin
  • Data transmission: RS232 transmission
  • Box Compression Tester test space: test width≈1600mm; board travel space≈1600mm
  • Displacement: Encoder 1000 P/R, 4 times better accuracy
  • With LINE DRIVE encoder with anti-interference ability and strong displacement analysis
  • 0.001mm.
  • Safety device: overload emergency stop  device, upper and lower stroke limit device, leakage automatic power off system, automatic interrupt stop function.
  • Manual control mode: increase the manual operation box.



Key Specifications



Model

GT-N02D

Test Space

1600×1600×1600mm (can be customized)

Capacity

30KN, 50KN, 70KN, 100KN (optional)

Accuracy

±0.5%

Unit

International units(switch freely)

Control System

Motor + servo system

Induction Mode

High precision load cell

Display

Computer screen display

Test Speed

0.001-500mm/min adjustable (standard speed 12.7mm/min)

Return Speed

0.001-500(adjustable)

Holding Function

With Holing Function(holding time / weight can be set)



Accessories:


High precision ball screw

1set

Taiwan HIWIN high precision ball screw

Load sensor

4pcs

GESTER bridge type sensor with high linearity and

0.5% accuracy

Motor and Servo System

1set

A set of Taiwan Delta servo motor to control displacement accuracy achieve 0.001mm

Chinese version Professional Test

Software Based on Windows System

1set

GESTER's self-developed system,equipped with a set of driver CDs, which can be installed on any computer.
