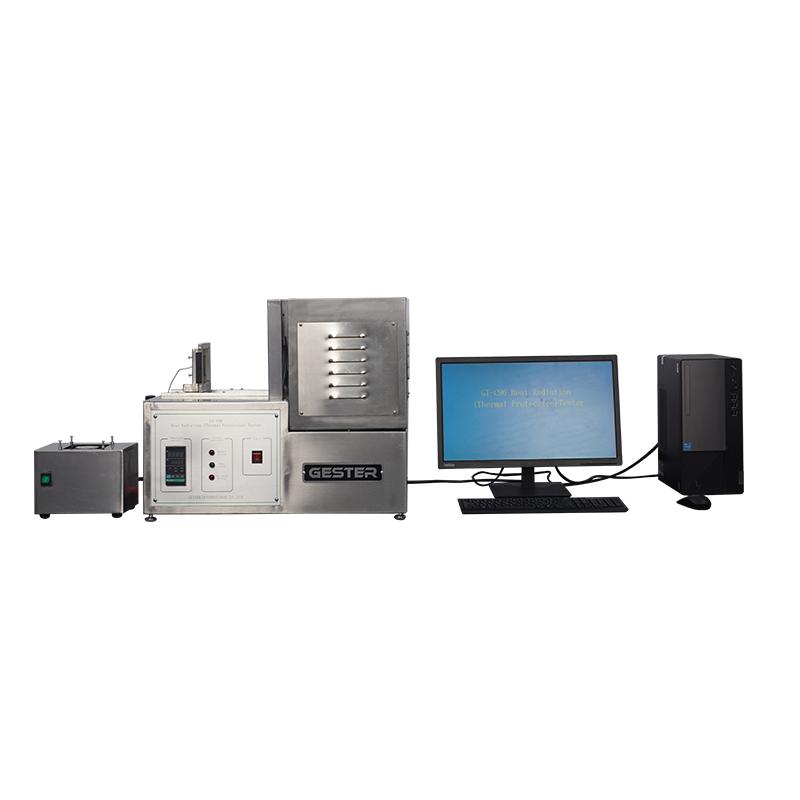

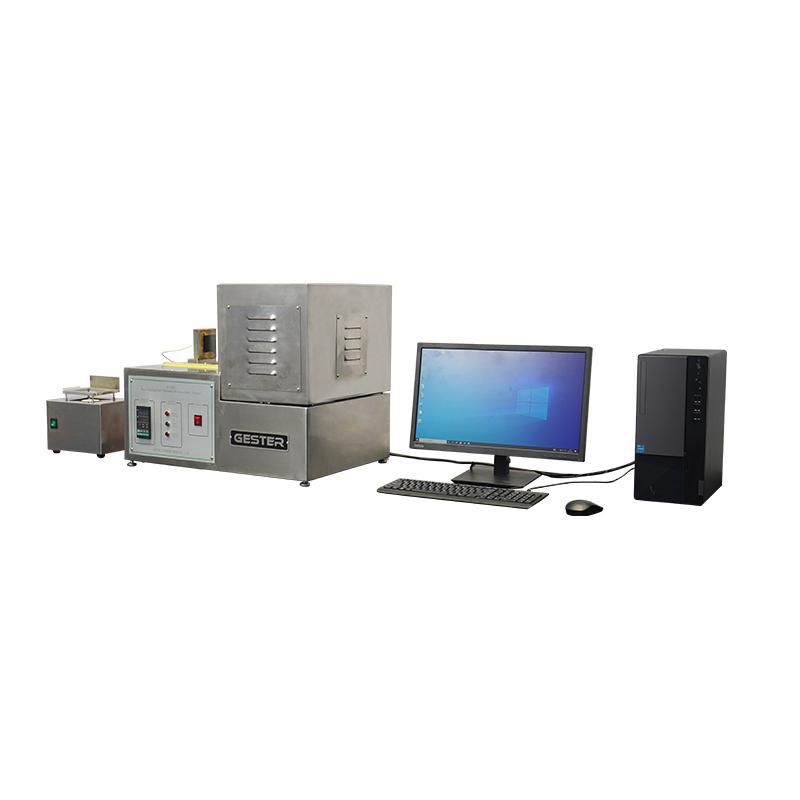

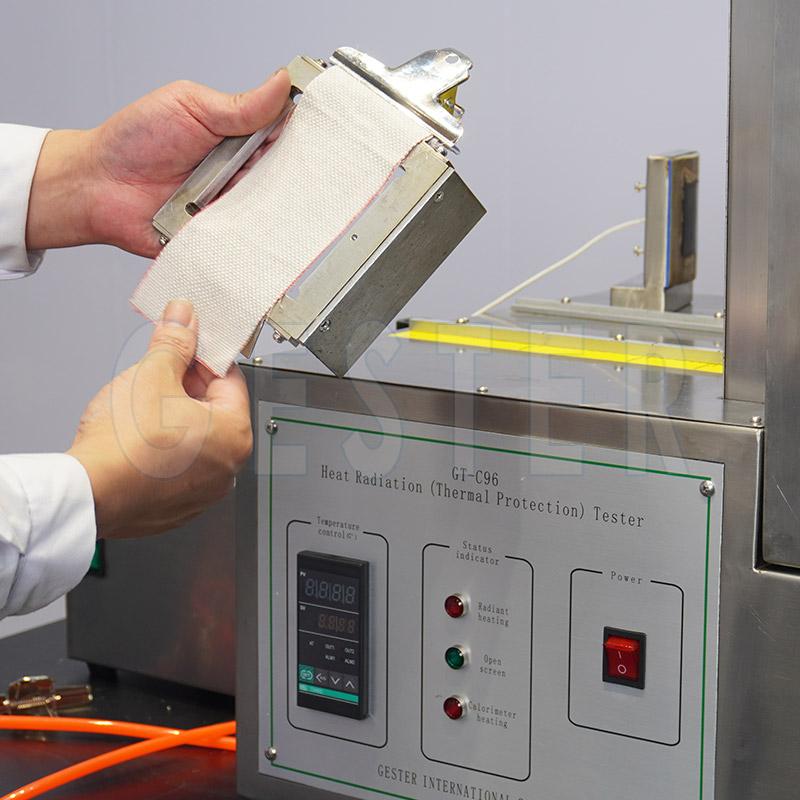

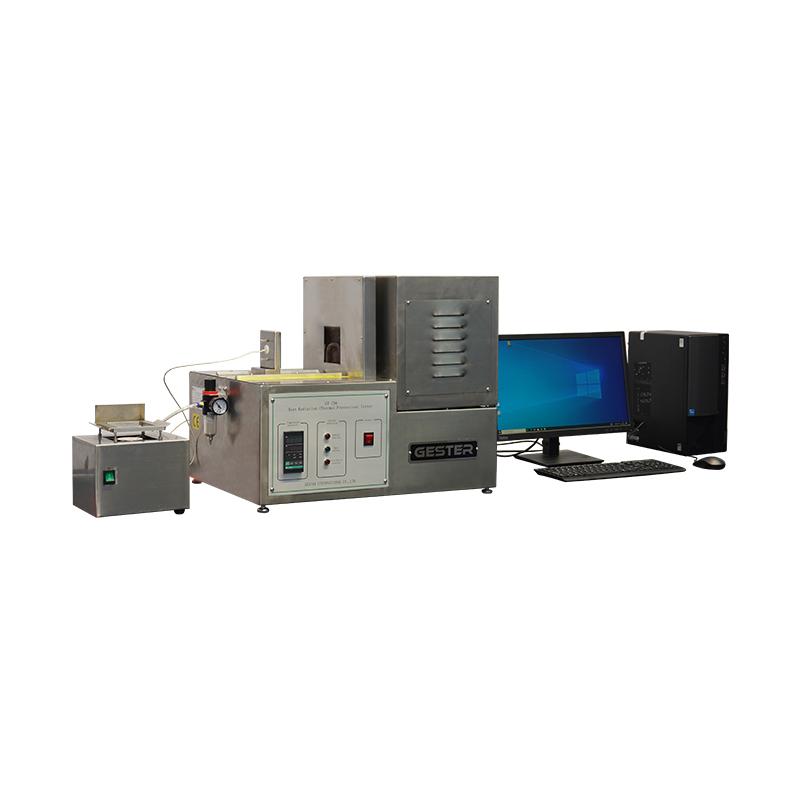

Heat Radiation Thermal Protection Tester GT-C96

Product Introduction

This device is use for heat protection test for fabric of single layer or multi-layer under the high temperature. It also can be used to determine the heat-insulating property of other fire retardant board.

Thermal radiation is a important performance indicator of flame retardant products. Accurate determination of its protective properties is very important to select materials, research and development of new products, improved processing techniques.

Radiation Thermal Protection Performance Tester Standards

ISO 6942-2002, EN366

Feature

Thermal protection performance tester According to ISO 6942-2002 (EN366) standard, there are two testing method.
Method A: Made the sample absorb a certain amount of heat radiation in order to reproduce the material the inclement conditions, recording changes in appearance.
Method B: Put calorimeter at back of the specimen, heat conduction from samples back, recording temperature trends over time in order to determine the level of heat transfer radiation.

Key Specifications

Model	GT-C96
Heating Power of Silicon Carbide Rod	6.5kW/220V, Heating Section: Length 178 mm, Diameter 8mm
Density of Heat Flow	10kW/m2～80 kW/m2 Adjustable
Thermal Radiation Source Temperature Control	Room Temperature～1200℃±5℃ (Display Accuracy is 1℃)
Thermal Radiation Source Temperature Sensor	Thermocouple (0～1600℃)
Thermal Radiation Temperature Controller	With PID Intelligent Controller
Calorimeter Hear Capacity	Actual Measurement Value Around 480.937 J/K, Heating Area50×50mm²
Calorimeter Temperature Range	Room Temperature～80℃
Calorimeter Temperature Range	Pt100 Platinum Resistor (-200～450℃)
Power Supply	1∮ AC 220V 50/60Hz
