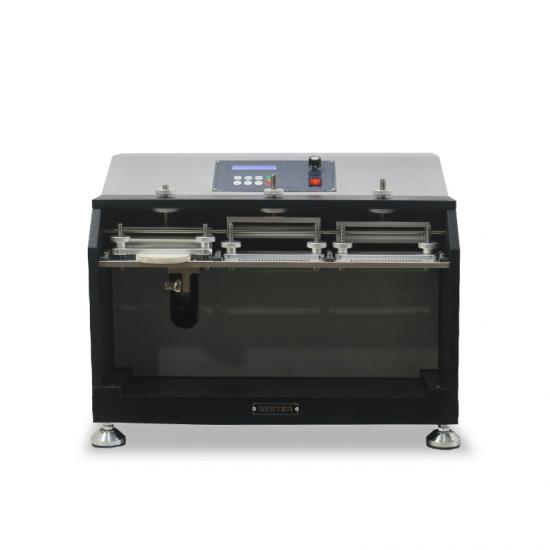

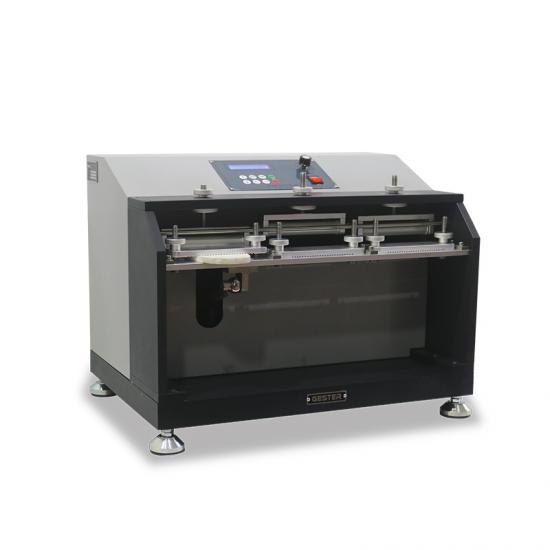

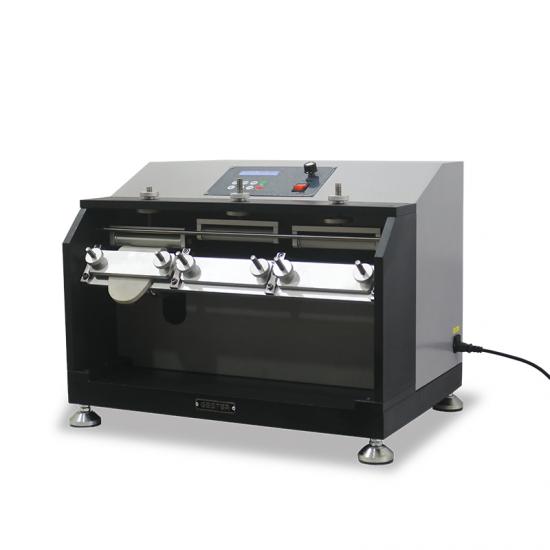

Whole Sole ROSS Flexing Tester GT-KB05D

The GESTER GT-KB05D Whole Sole ROSS Flexing Tester is an advanced laboratory physical testing instrument specifically designed to measure the flex resistance, crack initiation, and cut growth rate of complete, intact shoe soles made of rubber, PU, PVC, and TPR foam materials. Unlike standard material strip testers, the GT-KB05D evaluates non-cut outsoles directly under continuous 90° rectangular flexing, preserving the natural tread design and structural pattern. Fully compliant with ASTM D1052, SATRA TM60, ISO 5423, and BS 5131, it offers 3 stations, 6 stations, precision surface-oxidized aluminum clamps, and an automated LCD digital counter for high-precision footwear quality control.
  • Brand:

    GESTER
  • Item NO.:

    GT-KB05D
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

Non-Cut Whole Sole Flexing Fatigue Testing




Product Introduction


Direct Flex Fatigue Evaluation for Intact Footwear Outsoles

Cutting soling materials into small rectangular strips often destroys the integrity of tread patterns, flex grooves, and multi-density compound structures. The GESTER GT-KB05D solves this by accommodating full-size intact shoe soles, simulating real walking flex behavior to evaluate whether flexing stress will cause cracks along sole tread flex lines or seam boundaries.


Feature

  1. Body paint baking processed, easy for maintenance.

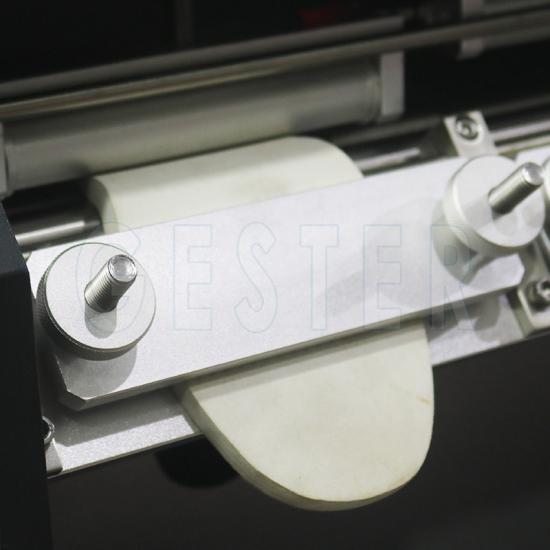

  2. Fixture in aluminum material and surface processed with oxidation.

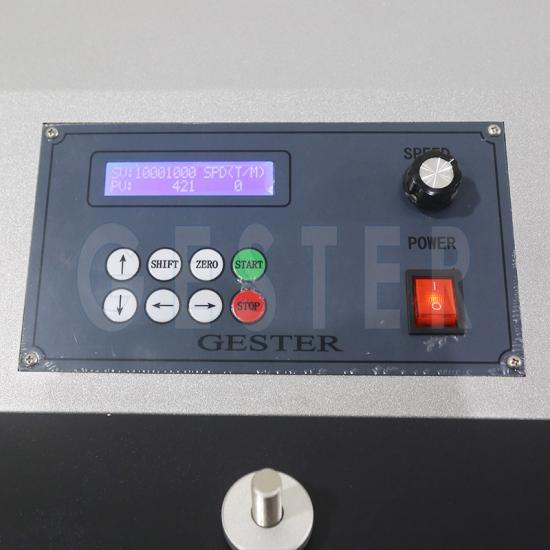

  3. Equip with digital counter, automatically stop after test finished.

Whole Sole ROSS Flexing Tester

Key Specifications


Model

GT-KB05D-1

GT-KB05D-2

Fixture

3sets

6sets

Bending angle

90±2°

Bending speed

100± 3 cpm

60± 5 cpm

Winding shaft radius

5± 0.3mm

Specimen dimension

Whole sole

Counter

LCD, 0~99,999,999

Dimension (W×D×H)

80×42×45cm

Weight

About 60 kg

Power Supply

                    1∮AC 220V 50/60HZ 3A

Standards

ASTM D1052

SATRA TM60,  BS5131: 2.1,

GB 2026,  HG/T2411,

ISO 5423,  ISO4643


Frequently Asked Questions (FAQ) & Selection Matrix

Q1: Where exactly should the chisel cutter incision be made on a whole shoe sole before flexing?

A: According to ASTM D1052 and SATRA TM60, the incision must be located directly over the maximum flexing line (usually the forefoot tread area where the foot naturally bends) along the winding shaft axis. Using the provided standard chisel cutter (2.5mm for ASTM or 2.0mm for SATRA/ISO), a clean, vertical pre-pierce is made through the sole's tread groove. This ensures stress concentration occurs precisely at the structural flex point, enabling accurate measurement of crack propagation over continuous cyclic bending.


Q2: Can the GT-KB05D accommodate different shoe sizes and extra-thick outsole designs (e.g., safety boots or platform soles)?

A: Yes. The GT-KB05D is equipped with widened, high-strength aluminum clamps that feature adjustable clamping heights and angle settings. It can easily secure various footwear sole profiles—from thin athletic shoe outsoles to heavy-duty, thick-soled safety work boots and lugged outdoor soles. For non-standard or custom outsole geometries, GESTER also provides specialized custom clamping fixtures upon request.



Q3: How do technicians determine when a whole sole has failed the ROSS flex test?

A: Testing failure is typically evaluated based on two criteria specified by testing standards or brand QC guidelines:

  • Crack Growth Length: Measuring the increase in length of the initial pre-cut incision after a specified number of cycles (e.g., 50,000 or 100,000 cycles).
  • Spontaneous Crack Initiation: Checking for new secondary cracks forming outside the initial pre-cut area, or structural delamination between multi-density sole layers.



Q4: How do I select the right ROSS Flexing Tester from GESTER based on test temperature and specimen format?

A: GESTER provides a complete ROSS testing matrix tailored to your specific laboratory requirements. Use the selection guide below:

1. Standard Room Temperature Tests (~23°C):For Whole Intact Soles (Non-Cut): Choose GT-KB05D (This Model) with 3 or 6 stations. For Cut Material Strips (152X25mm): Choose [GT-KB05A Ambient ROSS Flexing Tester].


2. Extreme Low Temperature Cold-Resistance Tests (Down to -40°C):For Whole Intact Soles (Non-Cut): Choose [GT-KB05E Low Temp Whole Sole ROSS Tester] (with 150L cold chamber).For Cut Material Strips (152X25mm): Choose [GT-KB05B Low Temp ROSS Flexing Tester] (with 150L cold chamber).


3. Dual-Function Combo Testing:


For Both Upper Leather (Bally) & Outsole Strips (ROSS) in Cold Chamber: Choose [GT-KB05C Low Temp Bally & ROSS Combo Tester].
