EN 14988 High Chair Comprehensive Testing Equipment GT-MJ01

  • Brand:

    GESTER
  • Item NO.:

    GT-MJ01
  • Order(MOQ):

    1
  • Lead Time:

    30 days
  • Product Detail

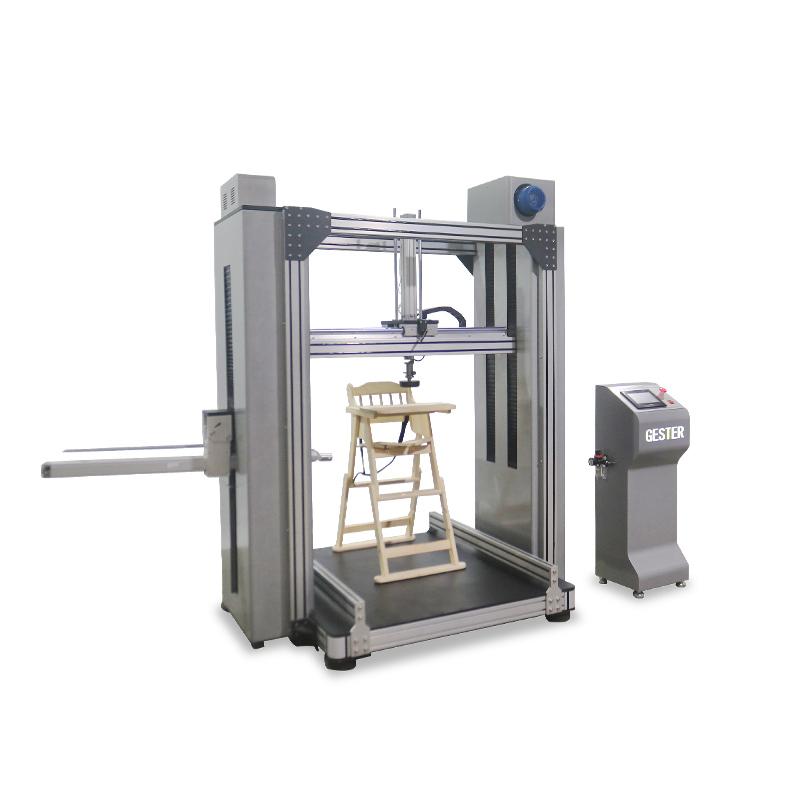

EN 14988 High Chair Comprehensive Testing Equipment GT-MJ01

Product Introduction

Application:

This tester is used for testing the mechanical properties of high chair. Can perform the horizontal static load and vertical static load and static load on backrest.


The High Chair Comprehensive Testing Equipment is equipped with two drive units, and can be individually controlled to repeatedly load the test points . Through different parameter settings, the machine can complete the following types of test functions on the high chair:
1. Seat,tray and back and footrest static load test.
2. Horizontal outward static loading test for front part of the high chair
3. Strength components of the restraint system and belt attachment point test

4. High chair stability test


Standards:

EN 14988-2017 Section 8.8.6.2, 8.8.6.3, 8.9.3.2.2, 8.11.2.2, 8.12.2.3, 8.12.2.4, 8.12.2.5, 8.12.2.6

Feature

1. The main structure of the machine is made of aluminum, beautiful and easy to maintain.
2. Servo motor drive, test loading control is more accurate, and the noise is even smaller.
3. High Chair Comprehensive Testing Equipment PLC touch screen control makes the operation more convenient.
4. In addition, the machine loading device using electric control movements, more extensive test space.



Key Specification



Model

GT-MJ01

Vertical load capacity

1000N

Horizontal load capacity

1000N

Testing time

0-99999 (can be adjustment)

Control method

PLC touch screen control

Lifting Method

Automatic lifting

Power

1 phase AC 220V 50/60Hz

Dimension (W×D×H)

180×250×200cm

Weight

900kg

Accessories:

Standard Accessories



2pcs

GT-LB01-5 local loading pad

4pcs

Stops

2pcs

Stationary fixture

Optional Accessories

1pc

GT-MJ23-1 test beam

1pc

GT-MJ27 test loading
