High Chair Seating Impact Testing Equipment GT-MJ31

  • Brand:

    GESTER
  • Item NO.:

    GT-MJ31
  • Order(MOQ):

    1
  • Product Detail

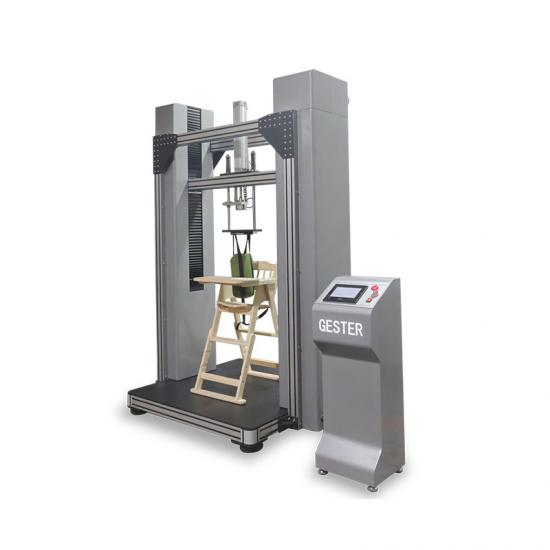

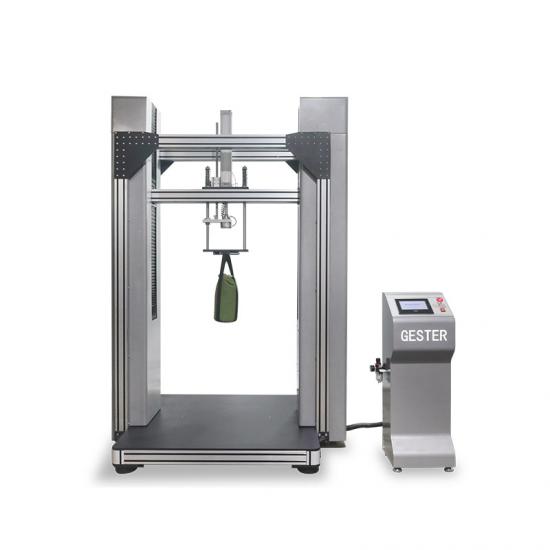

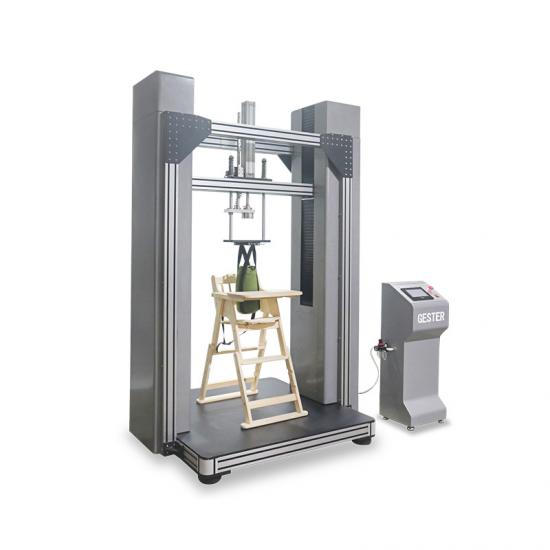

High Chair Seating Impact Testing Equipment GT-MJ31

Product Introduction

Application:
This tester applies to all types of high chairs, with 2 functions of chair seating impact and seating durability test.

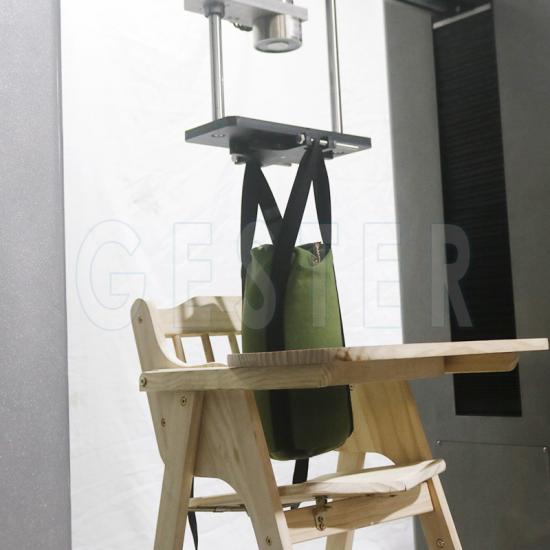

The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.


Standards:

EN14988-2017 Section 5.17, 8.8.5

Feature

1.The main structure of the machine is made of aluminum, beautiful and easy to maintain.

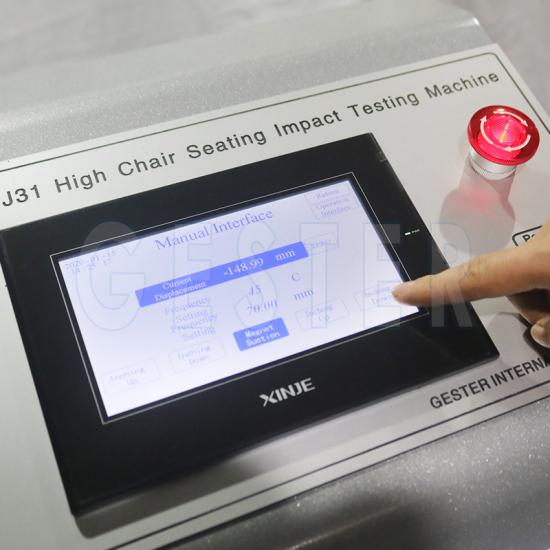

2. Using PLC touch screen control, operation more convenient.
3. In addition, the machine loading device using electric control movements, more extensive test space.



Key Specification



Model

GT-MJ31

Impactor Diameter

150mm

Impactor Weight

23kg

Cylinder Stroke

0~300mm

Beam Stroke

900~1350mm

Test Speed

10~30r/min

Test Times

0~999999times, settable

Control

PLC touch screen control

Dimensions(W×D×H)

150×150×200cm

Weight

≈300Kg

Air Source

≧7kgf/cm^2 stable air source

Power

1∮ AC 220V 50Hz 5A



Accessories:

23kg Impactor

1pc
