High Chair Back and Arm Impact Testing machine GT-MJ02

The High Chair testing machine is specially designed for testing the impact strength of backrest and handrail.
  • Brand:

    GESTER
  • Item NO.:

    GT-MJ02
  • Order(MOQ):

    1
  • Lead Time:

    30 days
  • Product Detail

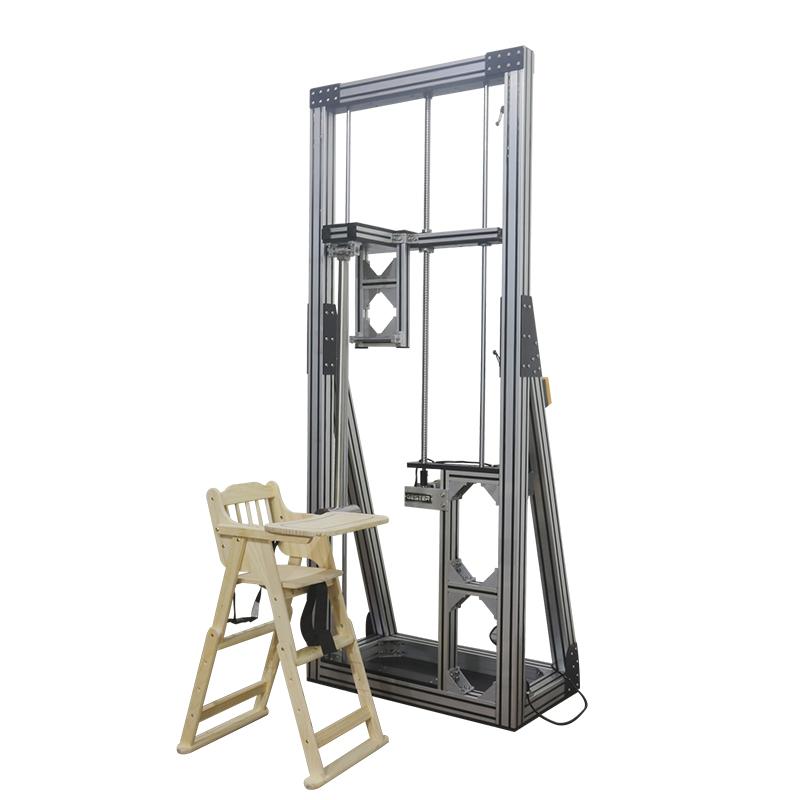

High Chair Back and Arm Impact Testing machine GT-MJ02

Product Introduction

Application:
The High Chair testing machine is specially designed for testing the impact strength of backrest and handrail.


Standards:

EN 14988-2 section 6.2


Feature

1.The High Chair Back and Arm Impact Tester main structure is made of aluminum, which is beautiful and easy to maintain.

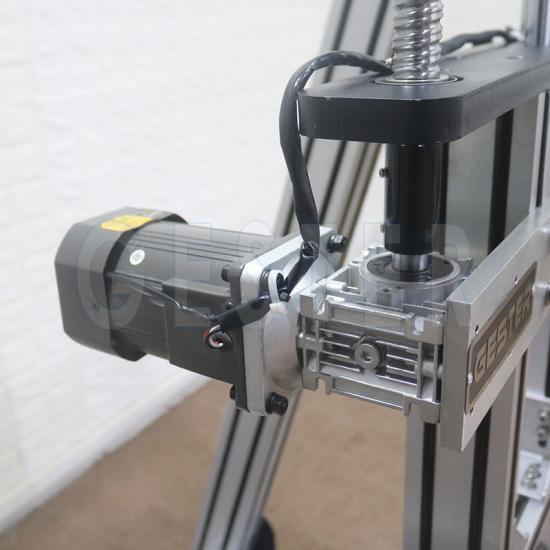

2.The height of the impact pendulum can be adjusted, which could test chairs with different height.



Key Specification



Model

GT-MJ02

Pendulum head

Diameter: ∅ 76mm, Weight:(6.5 ± 0.07) kg

Pendulum arm

Steel tube ∅ 38 x T 2mm,Weight2 kg ± 0.2 kg,Length950mm

Impact times

10 times

Dimensions(W x D x H)

100×80×220cm

Weight

Approx. 25kg

Accessories:

Standard accessories

1pc

Stops

Optional accessories

4pc

GT-M35A EN Drop Tester
