Brand:
GESTERItem NO.:
GT-C17Order(MOQ):
1Payment:
T/T, L/CShipping Port:
China PortLead Time：
30 daysProduct Detail

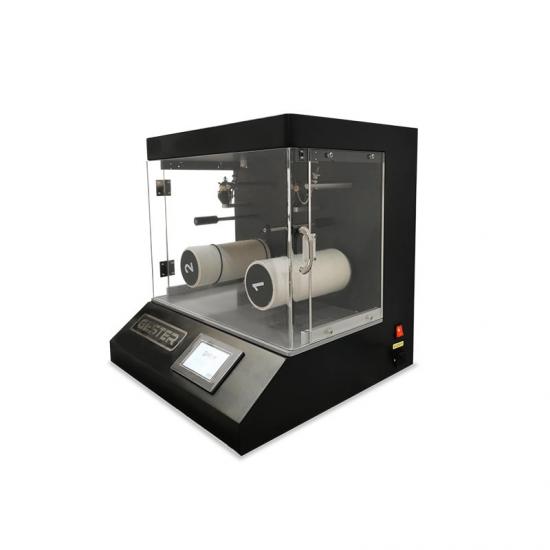

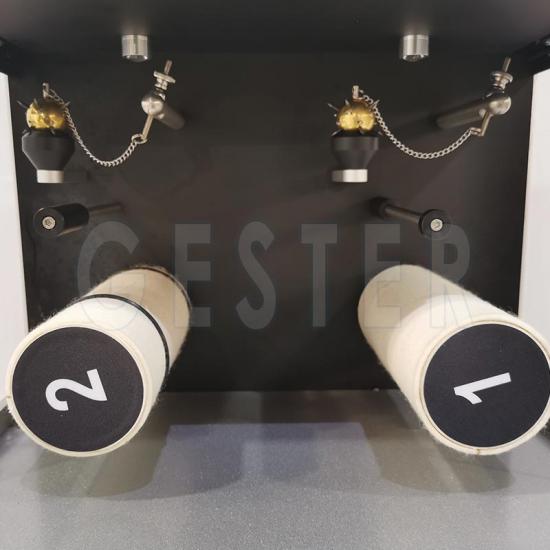

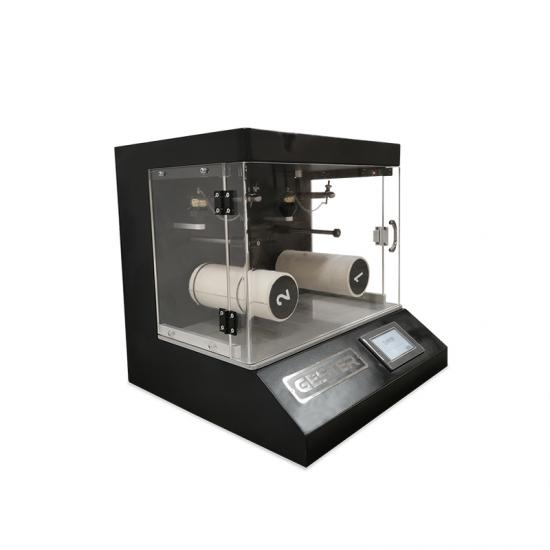

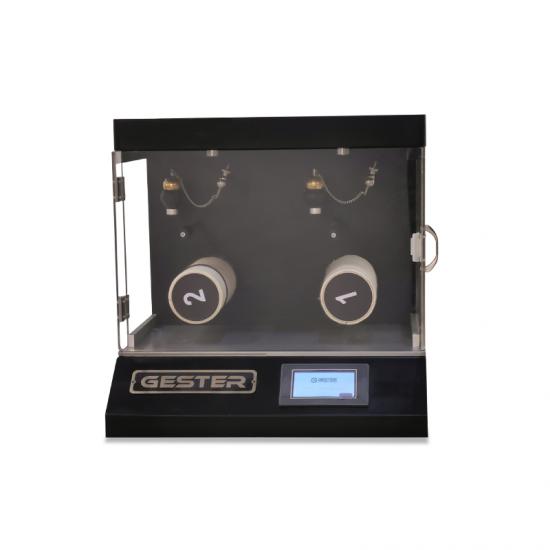

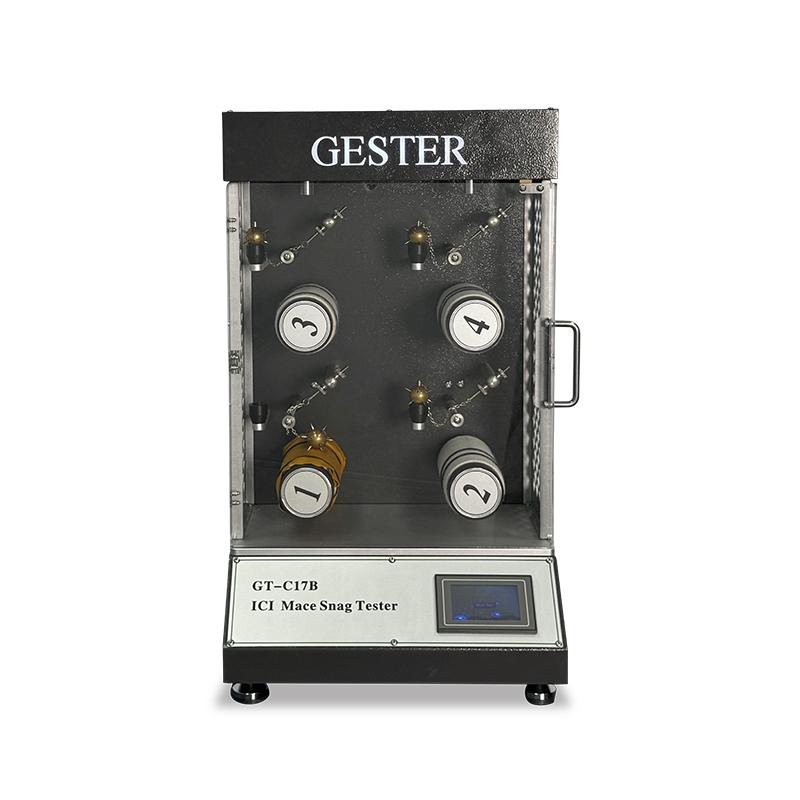

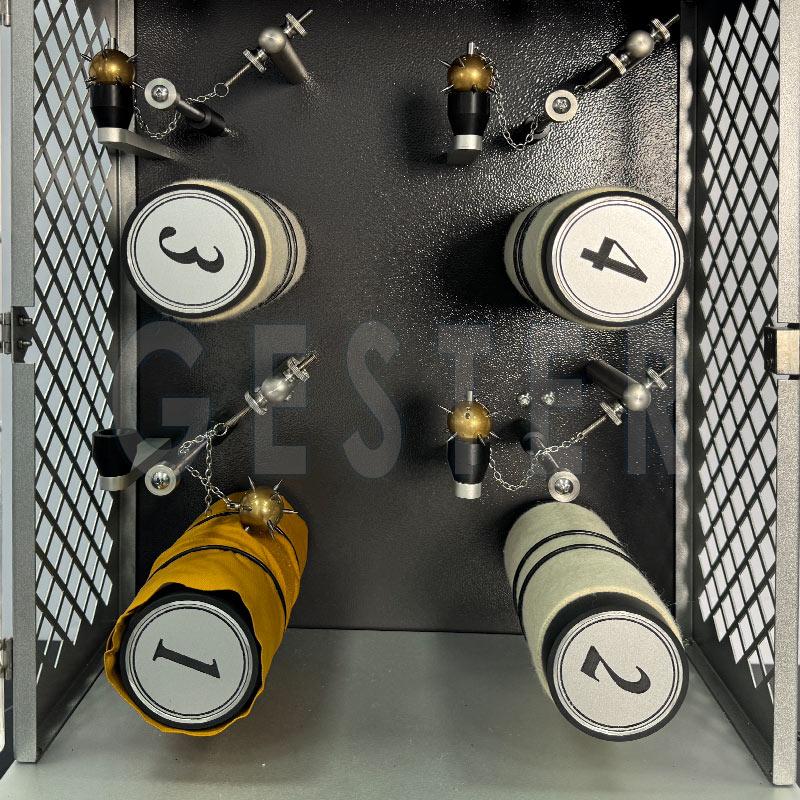

ICI Mace Snagging Resistance Tester GT-C17
|
Application: ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc. Standards: ASTM D3939, GB 11407, JIS L 1058, VDA 230-220 |
Length of chain is adjustable.
|
Model |
GT-C17A |
GT-C17B |
|
Working position |
2 |
4 |
|
Speed |
60rpm±2rpm |
|
|
Testing cylinder |
Φ82mm, Width: 210mm |
|
|
Mace ball |

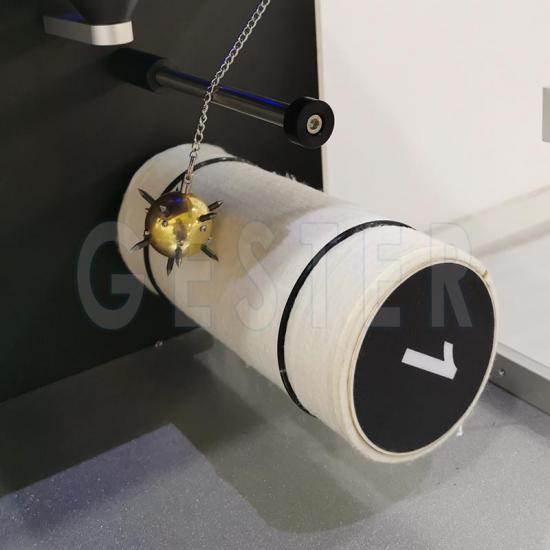

Weight: 160±10g, 11 maces |
|
|
Mace |
Length: 10±1mm, Tip radius: R0.13mm |
|
|
Counter |
0-99999 |
|
|
Felt |
Thickness: 3～3.2mm; Width: 165±1mm |
|
|
Distance between nail hammer and guide rod |
45±1mm |
|
|
Power supply |
AC 220V 50/60HZ |
|
|
Dimensions(LxWxH) |
560 x 420 x 480mm |
945x 420 x 480mm |
Accessories
|
Standard accessories |
1pc/pos |
Felt sleeves (2pcs for GT-C17A; 4pcs for GT-C17B) |
|
2pcs/pos |
Rubber rings (4pcs for GT-C17A; 8pcs for GT-C17B) |
|
|
1pc |
Power line |
|
|
Optional accessories |
Optional |
Tungsten carbide maces |
|
Optional |
Standard photographs |
|
|
Optional |
GT-C78 pilling assessment box |
