Low Temperature DeMattia Flexing Tester GT-KB08C

DeMattia Flexing Tester To determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials.
  • Brand:

    GESTER
  • Item NO.:

    GT-KB08C
  • Order(MOQ):

    1
  • Lead Time:

    30 days
  • Product Detail

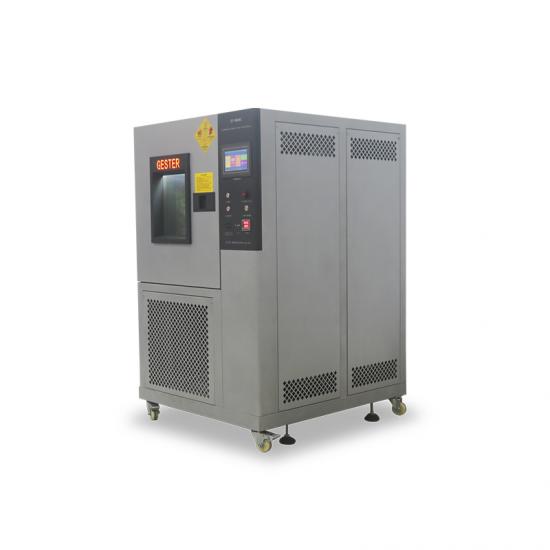

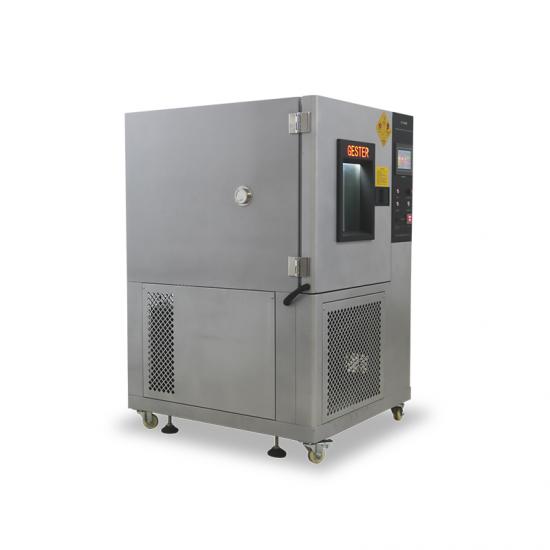

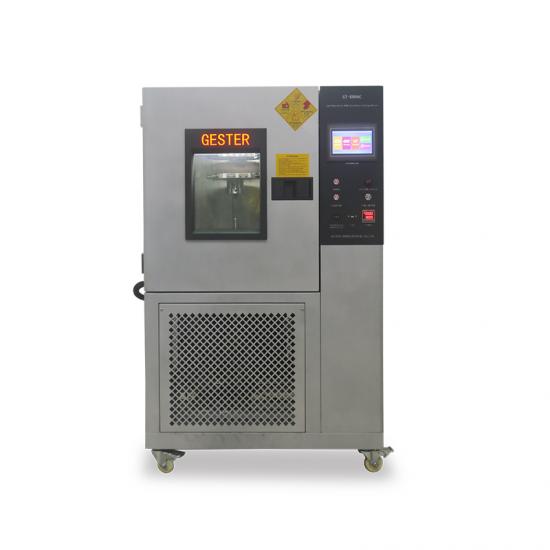

Low Temperature DeMattia Flexing Tester GT-KB08C



Product Introduction

Application:

DeMattia Flexing Tester To determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials. And inspect its flex cracking resistance, resistance to cracking and crack growth degree by repeatedly flexing in certain times and stroke.



Standards:
ISO 7854 - Method A, ISO132,133, BS-903-A10 , EN 511-5.2 , ASTM D813, D430,
GB/T13934,13935, JIS-K6301, GB/T 12586 - Method A

Feature

  • Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
  • Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
  • Low Temperature Flex Cracking Tester With vacuum glass observation window, more effective to observe the testing situation.

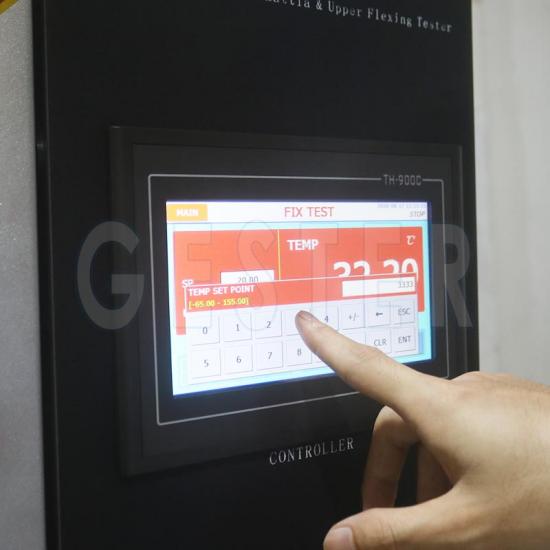

  • Temperature control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
  • Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture grips.
  • The flexing system has separate controller with function of power off memory and automatic stop when test done.

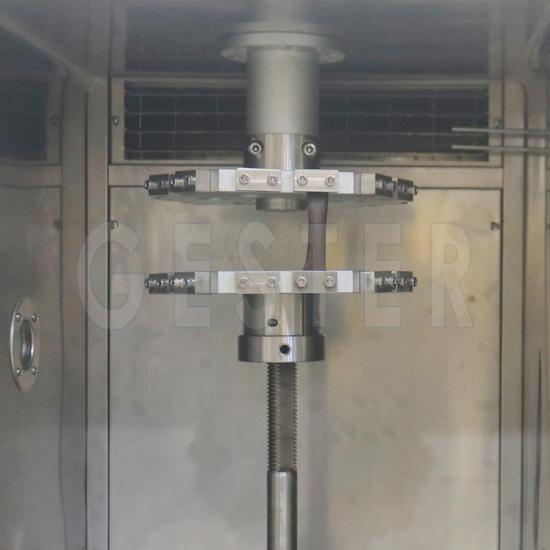

  • All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.

Key Specifications



Model

GT-KB08C

Clamps Max. Apart

70mm(Adjustable)

Moving Clamp Stroke

57mm

Clamps Min. Apart

13mm

Number of Specimen

12pcs

Counter

LCD, 0- 999, 999

Flexing Speed

5.0Hz ± 0.2Hz(300 ±12r/min)

Sample Size

(37.5±1)mmx125mm

Control System

Touch Screen Programmable Microprocessor Control

Temperature Range

-40~100℃

Temperature Accuracy

+/-0.5

Humidity Accuracy

+/-1%RH

Power Supply

1∮AC220V 50/60HZ

Inside Chamber Capacity

150L

Chamber Material

SUS # 304 Stainless Steel and Painted

Dimensions

110X170X180 cm

Weight

400kg

Standards accessories

1set

Locating rod



1set

Wrench

Optional accessories

GT-KD20 Pneumatic Sample Cutting Machine
