Brand:
GESTERItem NO.:
GT-C125Order(MOQ):
1Lead Time：
15-30 daysProduct Detail

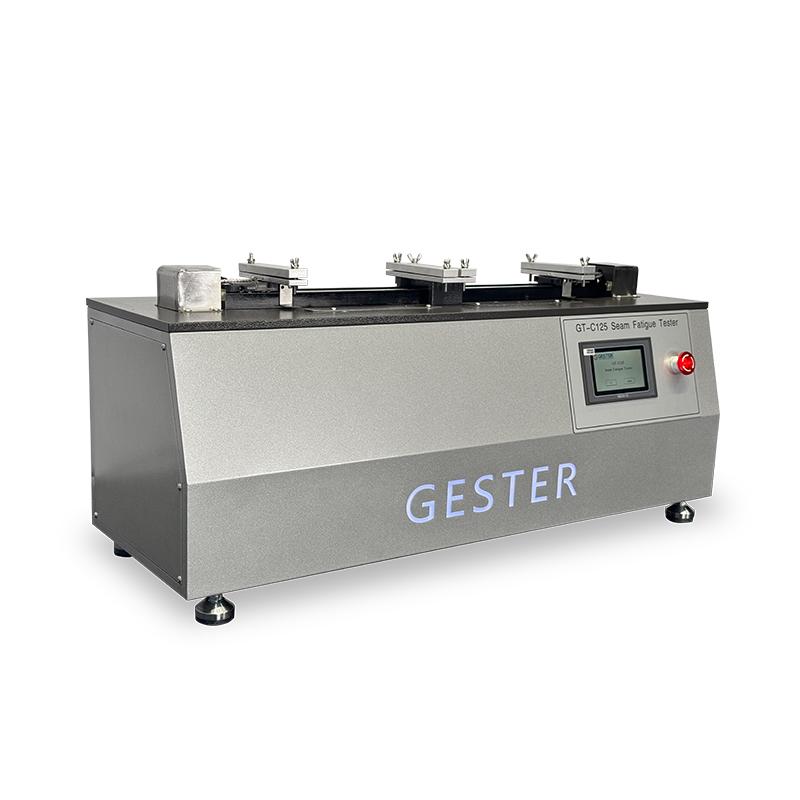

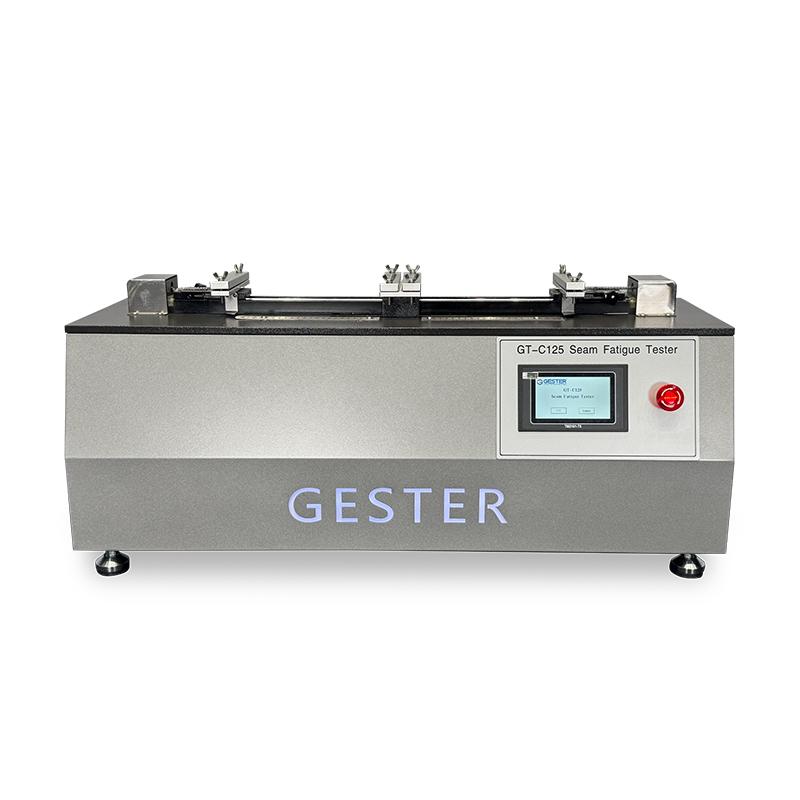

Seam Fatigue Tester GT-C125
Application:
It is for evaluation of fatigue strength for seam of car seat surface.The surface materials like genuine leather, synthetic leather, fabric, are stitching sutures. Seam strength and fatigue strength of the material seam can directly affect the seat using time. By determine the seam strength and lifetime can effectively predict the life of the seat and help to improve using time.
Standards:
Honda HES D6511, Toyota TSL5101G, Nissan M0154, Ford BN106-02, GMW 3405, Jaguar / Land Rover TPJLR.52.414
Principle:

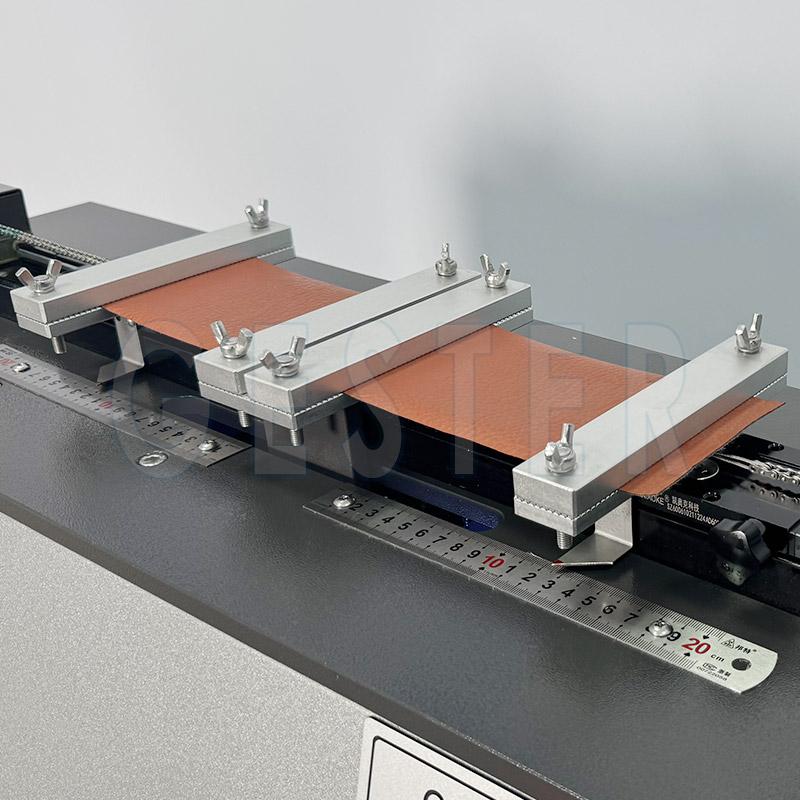

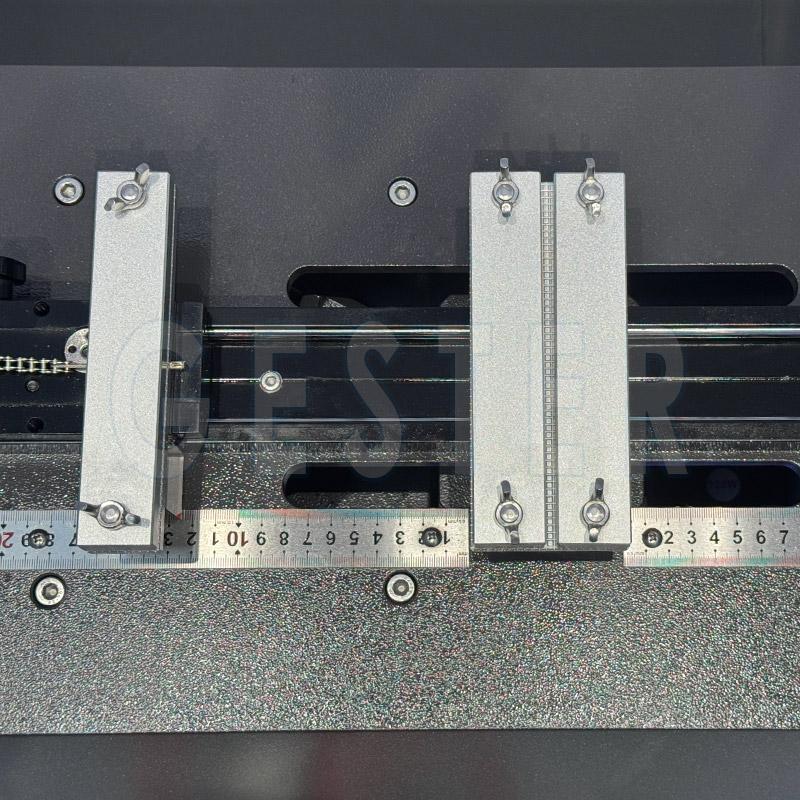

Place the sample on the holder, adjust the position of the left and right grippers so that the test distance of specimen meets the standard requirements.Set number of test cycles, start the test, the reducer drives the middle of the folder to do reciprocating motion. The left and right sides of the holders are with 3kg load. When the middle gripper is reciprocating,the left and right specimen will separately have process of loading and unloading in a cycle. The proximity switch connected to the counter records the gripper motion cycle.The test stops when it reaches the set test cycles.The fatigue resistance of the material joint is characterized by the change of the joint at the seam.
|
Model |
GT-C125 |
|
Work position |
2 |
|
Sample load |
3kg |
|
Speed |
30 reciprocating/min |
|
Counter |
0~9999999 |
|
Stroke |
140mm |
|
Test spacing |
120, 124, 140 adjustable |
|
Grip width |
50mm |
|
Dimension |
33*79*43cm(L*W*H) |
|
Weight |
50kg |
