Suitcases Vibration Impact Tester GT-LC02

luggage testing equipment Manufacturers Suppliers

  • Brand:

    GESTER
  • Item NO.:

    GT-LC02
  • Order(MOQ):

    1
  • Payment:

    100% T/T in advance
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7-30 days
  • Product Detail

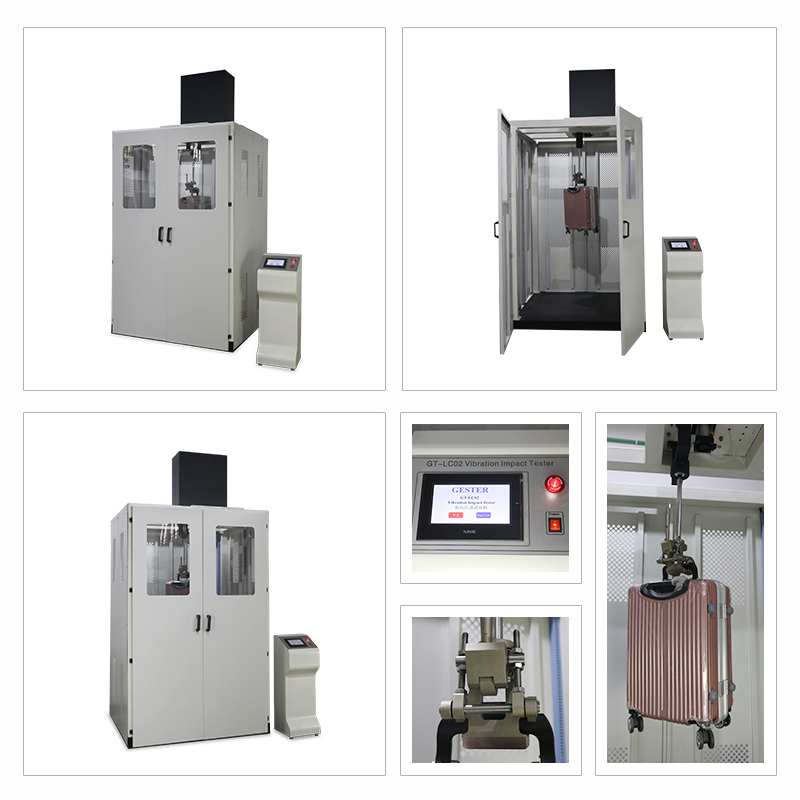

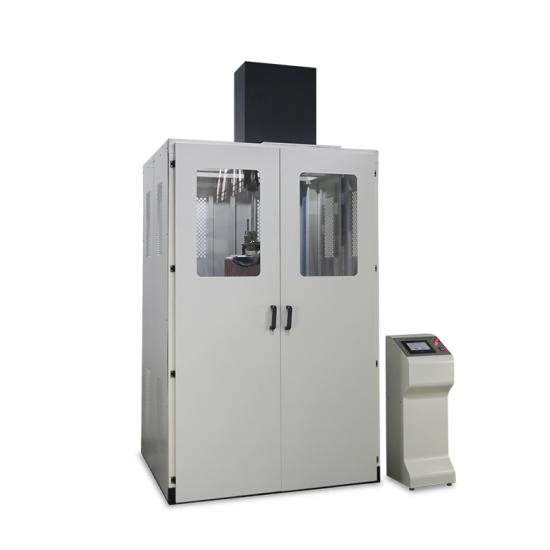

Suitcases Vibration Impact Tester | Factory direct sale



Product Introduction

Application:

Luggage vibration impact testing equipment: loading the prescribed load in the luggage, lifting the luggage to the prescribed stroke through the handle, the back strap (or the fully opened tie rod), making free falling motion under the action of gravity (the tie rod test adopts uniform motion), and then through the absorption and release of the impact force by the spring, the luggage is subjected to shock and oscillation, so as to test the anti-oscillation impact of the handle, the back strap, the tie rod and the luggage (package). This instrument is suitable for all kinds of bags and suitcases.


Standards:

QB/T 2922-2018, QB/T 5083-2018, QB/T 1333 - 2018


Key Specifications



Model

GT-LC02

Control system

PLC and touch screen

Counting

0-999 999 times

Driving Cylinder

100 KG weight Cylinder, AINTAC Cylinder

Sample Clamp

lower suction cup, upper damping rubber block, impact rod, the total weight of common clamps are (8.1+0.2) kg.

Impact Stroke

The impact device can move up and down, and the one-way stroke is (150 ±5) mm. The stroke is set on the basis of the impact device with an additional load of 30 kg.

Impact Weight

30 kg

Impact Spring

Spring constant (17.54±0.88) Nmm, spring section is rectangular (8.5 mm×4.2 mm) length (165±5) mm, outer diameter (44.5±0.5) mm, inner diameter (28.0 ±0.5) mm, effective number (17 soil 0.5) laps.

Damping Block

Both end of damping spring is equipped with a circular damping rubber block with an outer diameter of 100±5 mm, a height of 30±3 mm, and a diameter of a central hole of 22±2 mm. The main material is thermoplastic polyurethane, and the hardness is Shore A 85±3. The center hole of the lower damping block should ensure the impact rod passes freely and smoothly.

Backpack Clamp

1.35±0:05 kg.

Sample Fixing Materials

bovine split-layer section napped leather, thickness 1.5 mm~2.0 mm, width (100 ± 5) mm, softness 1.5 mm~2.5 mm (test aperture 25 mm).

Gas Source

6KG/CM2

Power supply

220v, 50/60HZ

Weight

500 kg


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
luggage mileage test machine

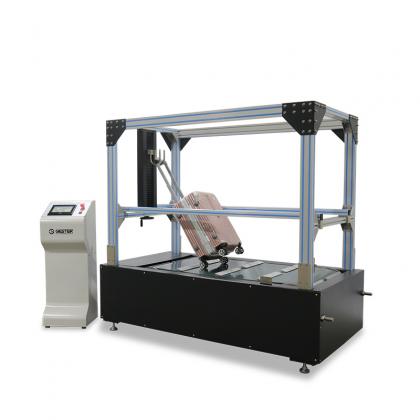

Luggage Caster Mileage Tester GT-LC01
Luggage Caster Mileage Tester is designed for road pilot of luggage with wheels, traveling bag, wheels, wheel axle.
Read More
Drum Drop Test Machine
Suitcase Drum Drop Test Machine GT-LC07
Suitcase Drum Drop Test Machine also called suitcase drum drop test machine, roller tester.It is made by American SAMSONITE standard.
Read More
Bags Durability Tester

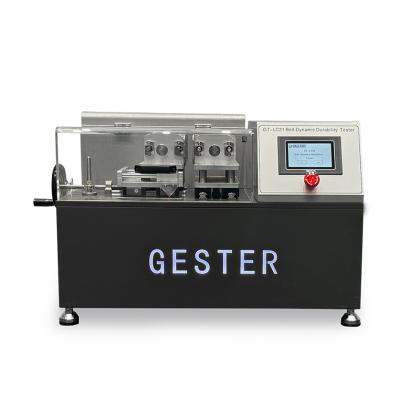

Bags Belt Dynamic Durability Tester GT-LC21
