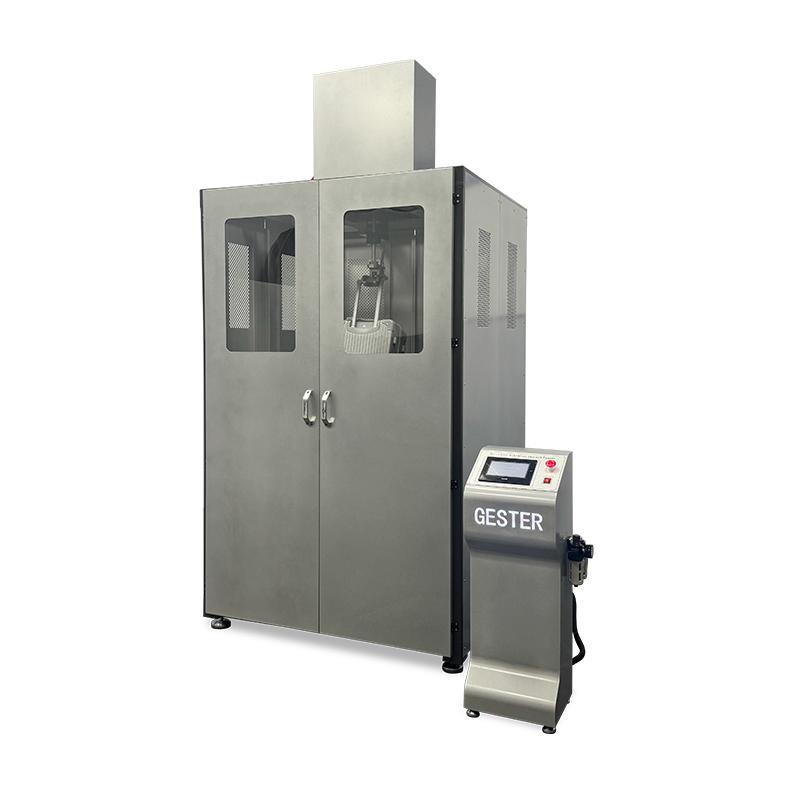

Luggage Vibration Impact Testing Machine GT-LC02

Luggage and Suitcase Testing Equipment Manufacturers Suppliers

Brand:
GESTER
Item NO.:
GT-LC02
Order(MOQ):
1

Inquire now

Product Detail

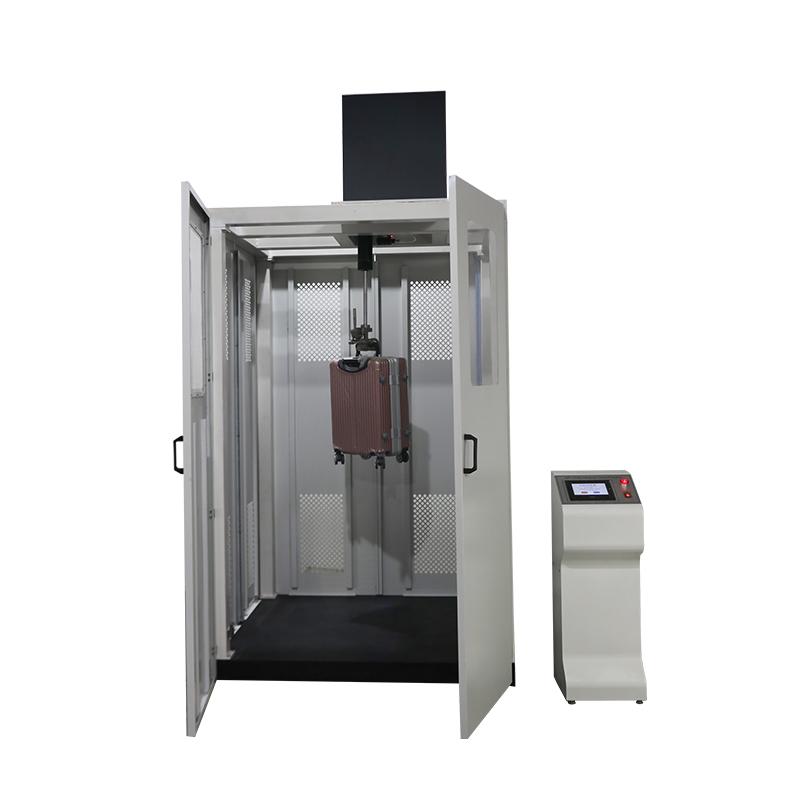

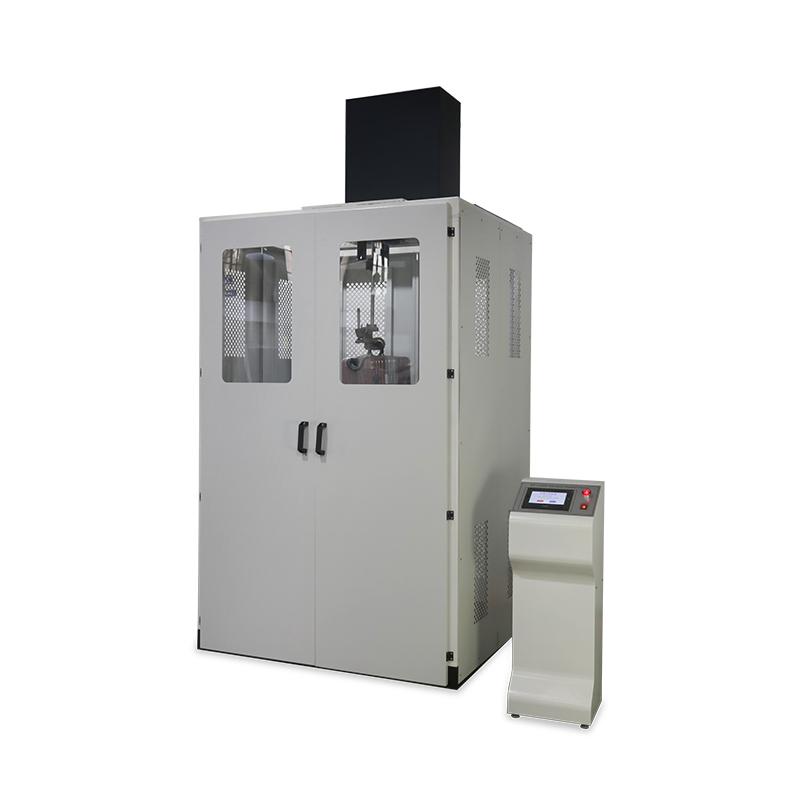

Vibration Impact Testing Machine | Luggage Testing Machine Manufacturers

Product Introduction

Application

The purpose is to test the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. Suitable for various types of bags and cases.

Features

GESTER develops our own control system with times setting and counting functions. There’s starting, stopping, pausing, counting and clearing functions on the test control panel. It can count from 0 to 999,999 times. The machine stops automatically when the setting times are reached or when the backpack strap is damaged. The control system controls cylinders going up and down. When reaching the lower end, the control system induces the release of electromagnets near the lower part of the switch. Making free impact under the action of gravity, impact to the spring end is the force of the spring, in repeated oscillation and the cylinder drive the electromagnet to the lower end repeated the above actions, the impact speed is 20±2 times per minute.

Standards

QB/T 2922-2018, QB/T 5083-2018- from September, QB/T 1333 - 2018

Key Specifications

Model	GT-LC02
Control system	PLC and touch screen (using man-machine interface control system, easy to operate, power cut and save function)
Counting	0-999 999 times, the luggage oscillating shock tester will automatically shutdown when it reaches the set number of times, setting the number of impact in the human-machine interface.
Driving Cylinder	100 KG weight Cylinder, AINTAC Cylinder

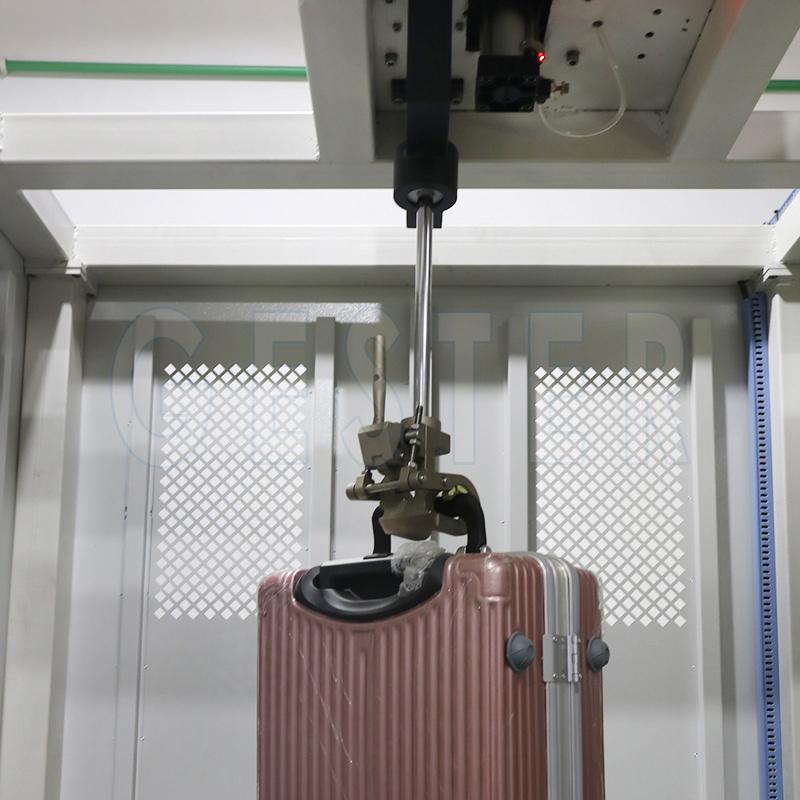

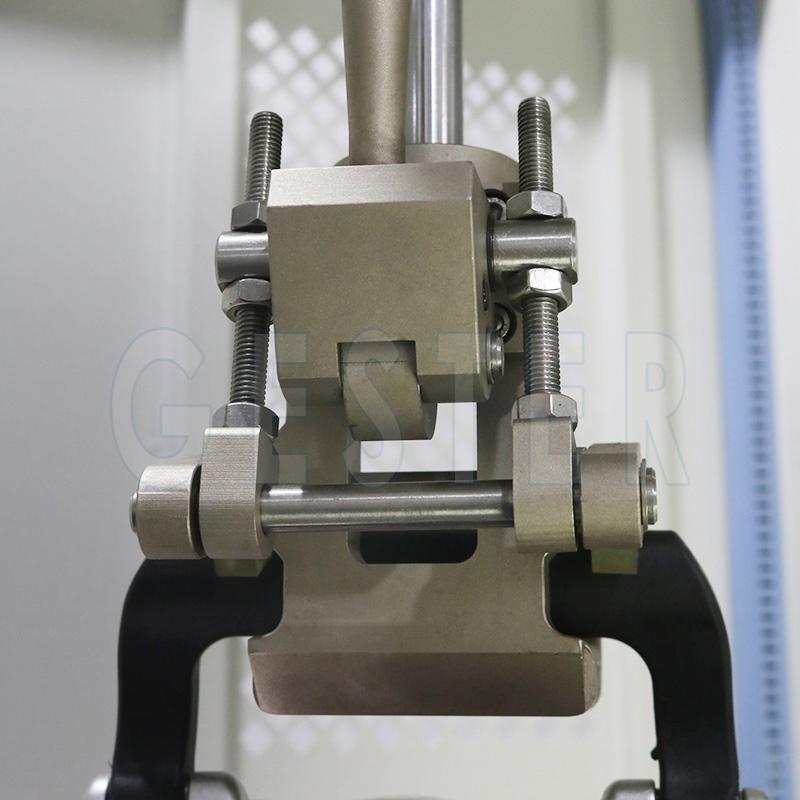

Sample Clamp	lower suction cup, upper damping rubber block, impact rod, the total weight of common clamps are (8.1+0.2) kg.
Impact Stroke	The impact device can move up and down, and the one-way stroke is (150 ±5) mm. The stroke is set on the basis of the impact device with an additional load of 30 kg.
Impact Weight	The stroke is set on the basis of the additional load of the impact device of 30 kg.
Impact Spring	Spring constant (17.54±0.88) mm, spring section is rectangular (8.5 mm×4.2 mm) length (165±5) mm, outer diameter (44.5±0.5) mm, inner diameter (28.0 ±0.5) mm, effective number (17 soil 0.5) laps.
Damping Block	Both end of damping spring is equipped with a circular damping rubber block with an outer diameter of 100±5 mm, a height of 30±3 mm, and a diameter of a central hole of 22±2 mm. The main material is thermoplastic polyurethane, and the hardness is Shore A 85±3. The center hole of the lower damping block should ensure the impact rod passes freely and smoothly.
Backpack Clamp	The quality of backpack belt clamp is (1.35±0:05) kg.
Sample Fixing Materials	bovine split-layer section napped leather, thickness 1.5 mm~2.0 mm, width (100 ± 5) mm, softness 1.5 mm~2.5 mm (test aperture 25 mm).
Gas Source	6KG/CM2
Power supply	220v, 50/60HZ
Weight	500 kg
