Brand:
GESTERItem NO.:
GT-F50BBOrder(MOQ):
1Product Detail

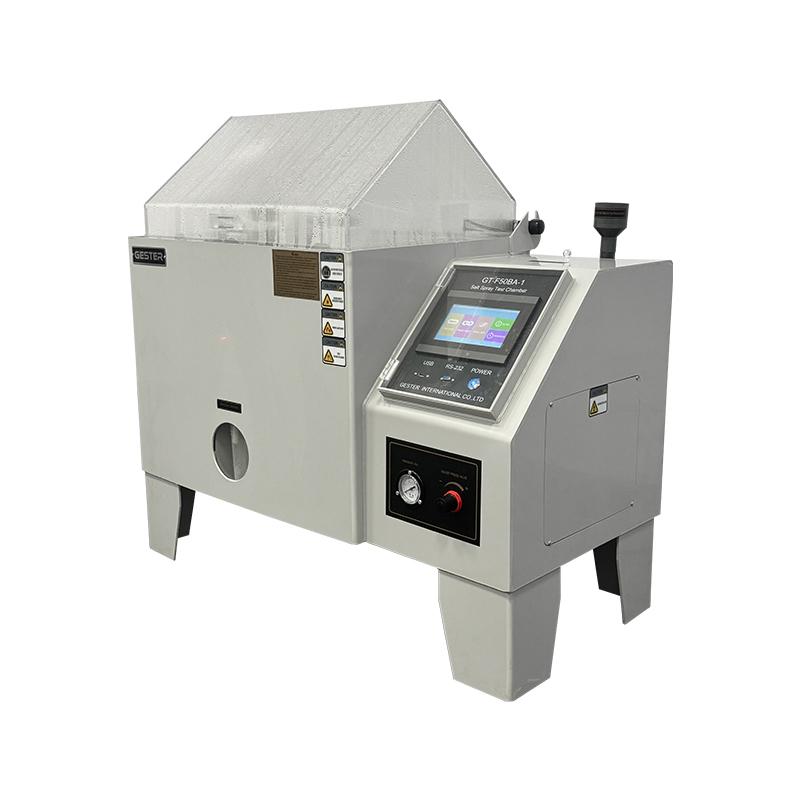

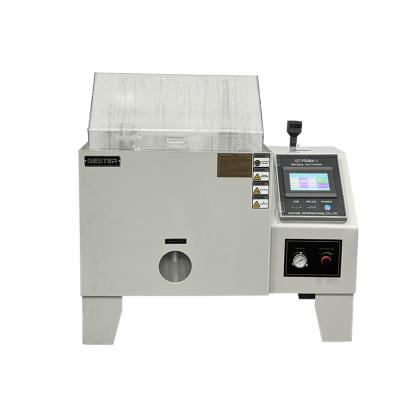

Touch Screen Salt Spray Cabinet GT-F50BB
Application:
Salt
spray test: It aims at determining the product corrosion resistance
after various kinds of materials surface suffering electroplating,
anodizing, painting, rust-proof oil corrosion resistance treatment.
Salt Spray Cabinet is suitable for neutral salt spray test (NSS) and acidic corrosion experiment (AASS, CASS).
Standards:
CNS3627, 3885, 4159, 7669, 8886,
JIS D-0201, H-8502, K-5400, Z-2371,
ISO 3768, 3769, 3770,
ASTM B-117, B-268,
GB-T2423
SS DIN 50021
|
Model |
GT-F50BB-1 |
GT-F50BB-2 |
GT-F50BB-3 |
GT-F50BB-4 |
GT-F50BB-5 |
|
Inside Chamber Dimension (WxDxH cm) |
60x45x40 |
90x60x50 |
120x100x50 |
160x100x50 |
200x120x60 |
|
Outside Chamber Dimension (WxDxH cm) |
107x60x118 |
141x88x128 |
190x130x140 |
230x140x140 |
270x150x150 |
|
Test Chamber Volume |
108L |
270L |
600L |
800L |
1440L |
|
Brine Tank |
15L |
25L |
40L |
40L |
40L |
|
Control Method |
Touch Screen |
||||
|
Plastic Plate Thickness |
8mm |
||||
|
Temperature of Test Chamber |
Brine test method(NSS ACSS)35℃±1℃ |
||||
|
Corrosion resistance test method (CASS)50℃±1℃ |
|||||
|
Temperature of Pressure Barrel |
Brine test method(NSS ACSS)47℃±1℃ |
||||
|
Corrosion resistance test method (CASS)63℃±1℃ |
|||||
|
Brine Temperature |
35℃~50℃ |
||||
|
Brine Concentration |
5% sodium chloride solution concentration or add copper chloride 0.26 grams per liter in the 5% sodium chloride solution concentration. (CuCl2 2H2O) |
||||
|
Compressed Air Pressure |
1.00±0.01kgf/cm2 |
||||
|
Spray Volume |
1.0~2.0ml/80cm2/h(gather at least 16 hours, take its average) |
||||
|
Relative Temperature of Test Chamber |
Above 85% |
||||
|
PH-value |
Neutral: 6.5~7.2; Acidic: 3.0~3.2 |
||||
|
Spray Method |
continuous spray or intermittent spray |
||||
|
Power Supply |
AC220V1Φ10A |
AC220V1Φ15A |
AC220V1Φ30A |
||
|
Temperature Range |
Laboratory temp. |
35℃- 50℃(can be arbitrarily set) |
|||
|
Pressure barrel temp. |
47℃- 63℃(can be arbitrarily set) |
||||
|
Temperature Rising Speed |
Laboratory |
Room temperature →35℃, about 35 minutes |
|||
|
Pressure barrel |
Room temperature →47℃, about 15 minutes |
||||
|
Temp.accuracy |
±1℃ |
||||
