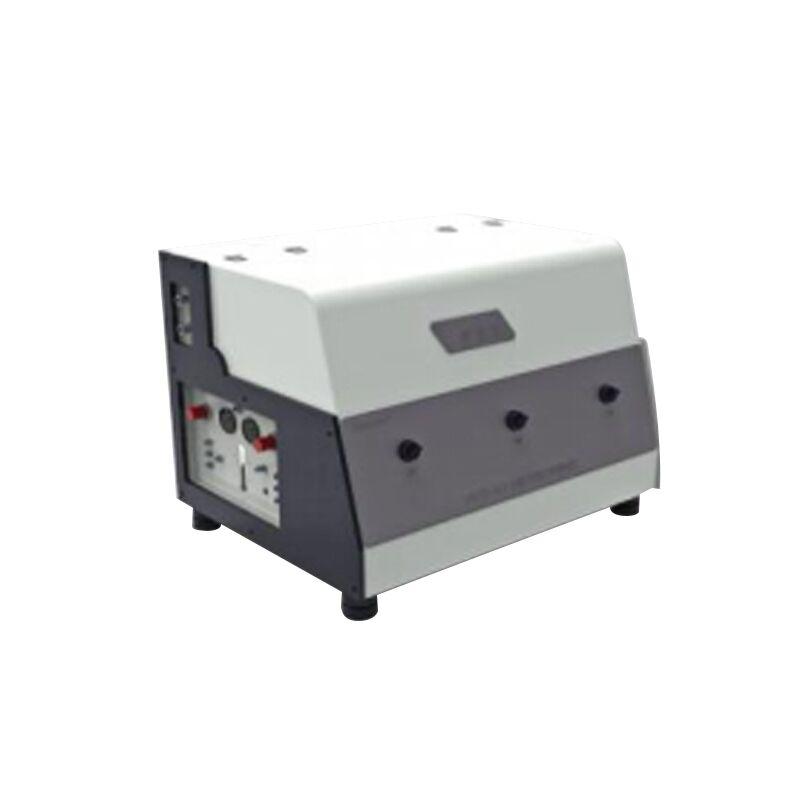

Water Vapor Transmission Rate Tester GT-N100

Water Vapor Transmission Rate Tester GT-N100

Application:

This water vapor transmission rate tester is a professional, efficient, intelligent high-end test system. It is used to determine the water vapor transmission rate of high barrier material, such as plastic film, aluminum foil plastic membrane, waterproof material, Metal Foil and so on.

Basic Application:

Films, water vapor transmission rate for various kinds of plastic films, paper-plastic composite films, co-extruded films, aluminium plating films, aluminum foil composite films, glass fiber aluminum foil composite films and others.

Sheets, water vapor transmission rate test for PP, PVC and PVDC sheets, metal foils, films, silicon wafers and other sheet materials.

Paper & Cardboard and related composite material, such as cigarette packaging aluminium plating films, Aluminum-plastic composite paper & cardboard.

Package, water vapor transmission rate test for bottles, Coke bottles, peanut oil cans, Tetra Pak packaging, vacuum packaging bags, three-pieces tin, cosmetic packaging, toothpaste tube, jelly cups, yogurt cups and other plastic, rubber, paper, paper-plastic composite, glass, metal bottles, bags, cans, boxes, buckets.

Extension Application

Package seal cover, LCD Display, Solar energy back sheet, PPR and other materials pipes, Medical bubble packing, Sterile protective covering, medicated patch, Battery cover.

Standards

ASTM F1249, ISO 15106-2, TAPPI T557, JIS K7129, ISO 15106-3, GB/T 21529, DIN 53122-2 /YBB 00092003, GBT 26253

Using the Infrared sensor method principle.

Nitrogen flow with stable relative humidity on one side of the material while dry nitrogen flow with a fixed flow rate on the other side; Because of the humidity difference, the water vapor permeates through the specimen from the high humidity side into the low humidity side, and is carried to the infrared sensor by the dry nitrogen flow. The sensor calculates the water vapor concentration and the water vapor transmission rate by analyzing the electrical signals generated by the water vapor.

1. Water Vapor Transmission Rate (WVTR) Tester: embedded high-speed microcomputer chip control, simple and efficient human-computer interface, providing users with comfortable and smooth operation experience;
2. The design concept of standardization, modularization and serialization, can meet the individual needs of users to the maximum extent.
3. Automatic flow control, including carrier gas and moisture, without human intervention.
4. Automatic humidity control
5. The professional test software, real-time display of test data and curves.
6. The imported high speed and high precision acquisition chip, effectively ensuring the real-time and precision.
7. Equipped with Serial communication port, data export is available.
8. One-click operation, simple and convenient.
9. Fully automatic test: Set test parameters, automatic test and judgement, save the test result after test finished.
10. Laser pulse modulated infrared sensor, long optical path absorption, higher measurement accuracy;
11. Precise pipes and valves, pipe flushing technology, ensuring the cleanliness of the carrier gas, with higher test efficiency.
12. The unique installation technology of sample anti-side leakage seal, enhances the specimen seal.
13. Efficient testing, low nitrogen consumption.
14. WVTR testing machine meet the requirements of Chinese GMP for data traceability, authority management and computerized system can fully meet the needs of the pharmaceutical industry (Optional).
