Brand:
GESTERItem NO.:
GT-RC02BOrder(MOQ):
1Product Detail
Application:
This is designed to test the thermal protective and insulation performance of exposed outer surfaces (including flame-retardant protective clothing, fire-fighting suits, fire boots, gloves, and helmet exteriors) made of flame-retardant fabrics when exposed to radiant and convective heat sources. It supports calculations for TPP (Thermal Protective Performance) value, TPE (Thermal Protective Evaluation) test, and FFF (Fabric Flammability Factor) algorithm.
GB/T 38302-2019, ISO 17492-2019, ASTMF 2703, ASTMF 2700, NFPA 1971, XF 10, XF 634, GB 8965.1, NFPA 2112

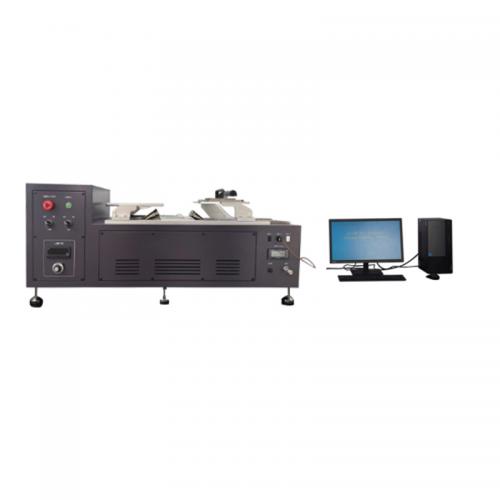

Thermal protection performance tester: under specified heat flux, the second-degree burn time is derived from the intersection of the response curve (calorimetric sensor temperature rise curve) and Stoll curve (human tissue tolerance curve). Higher product of heat flux level and second-degree burn time denotes superior thermal protection of the fabric.
Model
GT-RC02B
Heat Flux Measurement Range
0–167 kW/m²
Heat Flux Measurement Accuracy
±2 kW/m²
Specimen Irradiated Size
≥200mm*200mm, for testing flame-retardant protective clothing, fire-fighting suits and protective gloves
Convection Heat Source
2 Merkel lamps
(Heat flux: up to 60 kW/m²; Radiant heat flux: up to 40 kW/m²)
Rotor Propane Gas Flowmeter
Provides precise, stable propane flow for the burner
Radiant Heat Source
9pcs of 500W infrared quartz lamps
(proportional power control for 0–30 kW/m²radiant heat flux)
ASTM F2703 Copper Calorimeter
Accuracy ±3% F.S.; Weight 1000±10 g
Copper Calorimeter Copper Plate
Imported Oxygen-Free superconducting copper
Data Acquisition System Sampling Rate
≥ 40 samples/second
Environment
15–35℃
Fume Hood
Recommended internal dimensions
≥150×75×90 cm, including door height
Gas Source
Propane (Purity ≥95%, equipped with pressure reducing valve - cylinder & outlet pressure controlled)
Compressed Air
Customer-supplied
Cooling Water Source
Tap water (inlet & outlet) or optional chiller
Power supply
Single phase AC220V 50Hz
Dimension
130×65×53cm (LXWXH)
Weight
Around 60kg
Accessories
|
Standard accessories |
1pc |
Computer |
|
1pc |
DAQ Standard Test Software |
|
|
1pc |
ASTM F2703 Dedicated Copper Calorimeter (for testing) |
|
|
1pc |
ASTM F2703 Dedicated Copper Calorimeter (for calibration) |
|
|
1pc |
Power Line |
|
|
Optional accessory |
Optional |
Chiller Unit |
