Ball Burst Strength Tester GT-C02-2

Ball Burst Strength Tester is used for testing ball burst and extension of cotton fabric, elastic fabric and socks and gloves products.

Brand:
GESTER
Item NO.:
GT-C02-2
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
China Port
Lead Time：
30 days

Inquire now

Product Detail

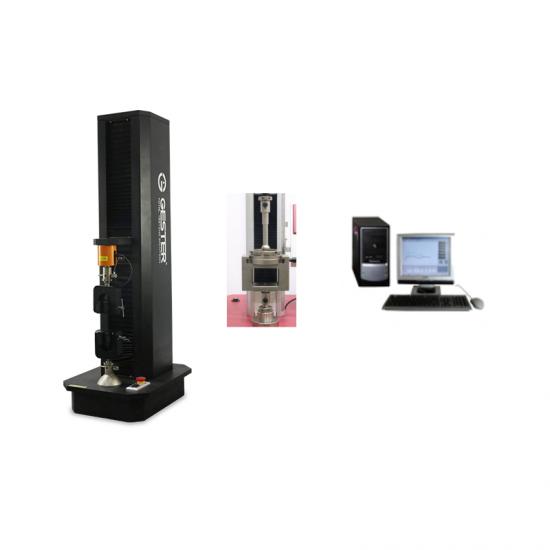

Ball Burst Strength Tester GT-C02-2

Product Introduction

Application:

GESTER Ball Burst Strength Tester is used for testing ball burst and extension of cotton fabric, elastic fabric and socks and gloves products.

Standards:

GB/T 19976, ASTM D 3787, ASTM D 6797, EN 12332-1, FZ/T 01030, FZ/T 60019

Feature

It’s available to connect with computer, with straightforward result of report forms, curve, graph.
DC servo drive, can setting speed of wide range.
Import sensor, precision of force measurement over 0.2% F.S.
Can customized special busting function according to customer’s requires.
Elegant aluminium alloy shell.

Key Specifications

Model	GT-C02-2
Force Range	2500N(1%～100% of Full Range)
Force Accuracy	±0.2%F.S
Speed Range	0.01-1000mm/min
Max. Drop Stroke Of Ball	120mm
Standards	GB/T 19976, ASTM D 3787 ASTM D 6797	EN 12332-1	FZ/T 01030, FZ/T 60019
Related Grips	GT-CA05A	GT-CA05B	GT-CA05C
Dia. Of Clamp	Φ44.45mm	Φ45mm	Φ25mm
Dia. Of Burst Ball	Φ25.4mm	Φ38mm	Φ20mm
Power Supply	AC 220V 50/60HZ
Machine Drive	Servo motor drive, Synchronous wheel and precision ball screw drive
Power	200W
Power Supply	AC 220V 50/60HZ
Dimensions (W x D x H)	47x38x186 cm
Weight	85kgs

Standard accessories	1pc	Manual Grips
	1pc	English Operation Software
	1pc	Cable Connect with PC
	1pc	Load cell
Optional accessories	1set	Desk Top Computer
Optional accessories	1pc	Other Grips and Load Cell

Application Industry

All kinds of materials can be tested on the Ball Burst Strength Tester
