Universal Tensile Strength Tester (Dual Column) GT-C01-1

Universal Tensile Strength Tester is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

  • Brand:

    GESTER
  • Item NO.:

    GT-C01-1
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    China Port
  • Lead Time:

    30 days
  • Product Detail

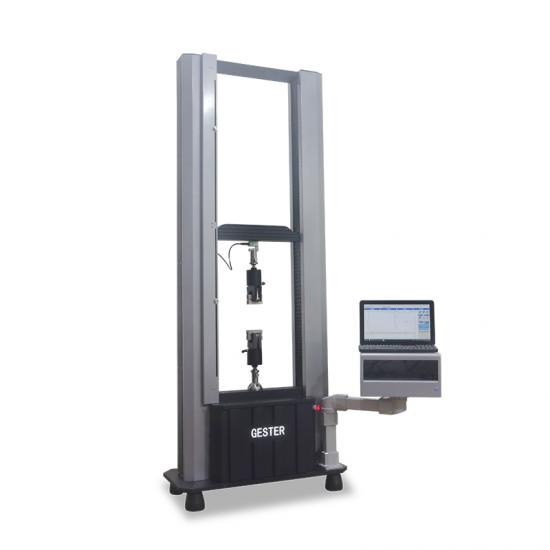

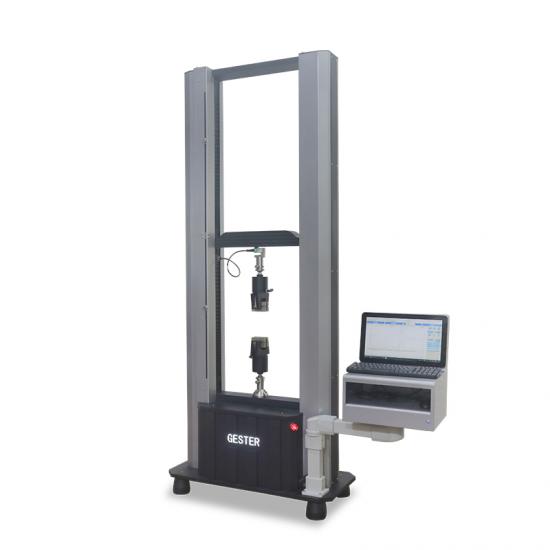

Universal Tensile Strength Tester (Dual Column) GT-C01-1



Product Introduction

Application:

This Universal Tensile Strength Tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. universal testing machine is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.


Standards:

ISO13934-1, 13934-2, 13935-1, 13935-2, 13936-1, 13936-2, 13936-3, 13937-2, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18
ASTM D 434, D751, D885 , D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735 .
BS 2543, 2576, 3320, 3424, 4303 , 4304,
M&S P11, P12, P13, P14
JIS L1096

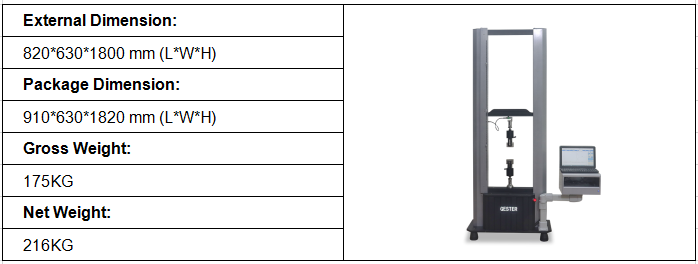

Dimensions

Universal Tensile Strength Tester (Dual Column) GT-C01-1



Feature

  • Adopt AC PANASONIC AC servo drive system, Taiwan SESAME gear reducer, synchronous pulley, TBI precision ball screw components make instrument beam move stable with low noise & high precision of extension.
  • Adopt aluminum alloy column shell, deal with high temperature & solidify injection on the machine surface will never fade.
  • This machine adopt many kinds of protection measures:
    • Beam’s limit cams protecting device
    • Clamp touch avoid protecting device
    • Set up protection on displacement & load software
    • Sensor overload protection, Sample load software protection
    • Overcurrent & overvoltage protection
  • Real time supervision to main parts, more safe & reliable while using machine.
  • This fabric strength testing machine adopt open system: user can edit test program, data analysis formula, test report according to test material’s category, character and test methods requires.
  • This Universal Tensile Strength Tester provide many kinds of humanity automatic mode.
  • While using electronic clamp, trial initiation can set as clamp grip autostart or pre-tension auto grip start. It also set as clamp auto open after finished test.
  • This universal testing machine also can set clamping distance and auto location.
  • The distance of scraping can be set freely.

Key Specifications



Model

GT-C01-1A

GT-C01-1B

Max. Capacity

5KN

10KN

Display

Computer Display Mode

Force Resolution

1/100,000

Force Accuracy

≤+/-0.2%

Stroke Resolution

0.001 mm

Test Speed

0.01-1000mm/min, Can Set by Computer

Stroke Space

1400mm

Gantry Structure Width

400mm

Stop Mode

Overload Stop, Emergency Stop Button, Specimen Damage Automatic Stop, Upper & Lower Limit Set Automatic Stop, Automatic Return Function

Machine Drive

Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive

Dimensions(WxDxH)

820x630x1800mm

820x630x1600mm

Power Supply

AC 220V 50/60HZ 10A

Weight

140kg



Accessories

1set

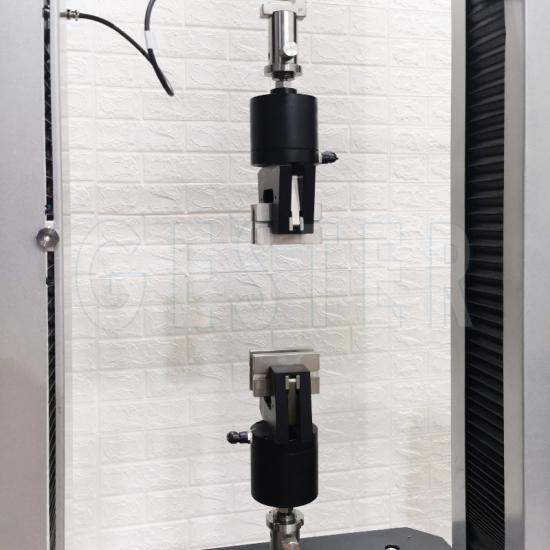

Pneumatic Grips

1pc

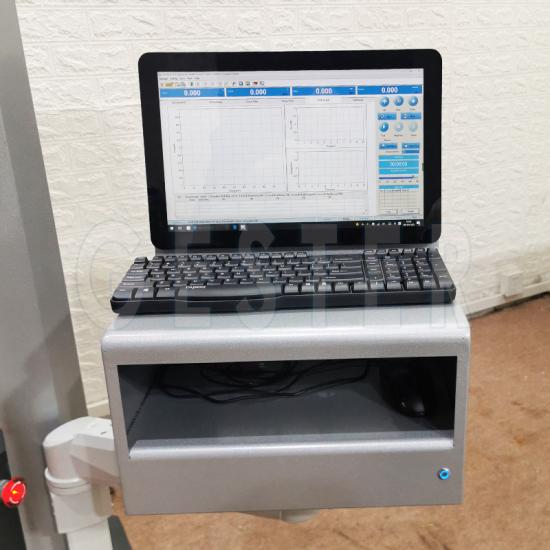

English Operation Software



1pc

Cable Connect with PC



1pc

Load Cell

1set

Computer



Optional accessories

Optional

Load Cell 50N, 100N, 250N, 500N, 750N, 1KN, 2.5KN

Optional

Other Grips



Universal testing machine application

All kinds of materials can be tested on the Dual Column Universal Tensile Strength Tester
